992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

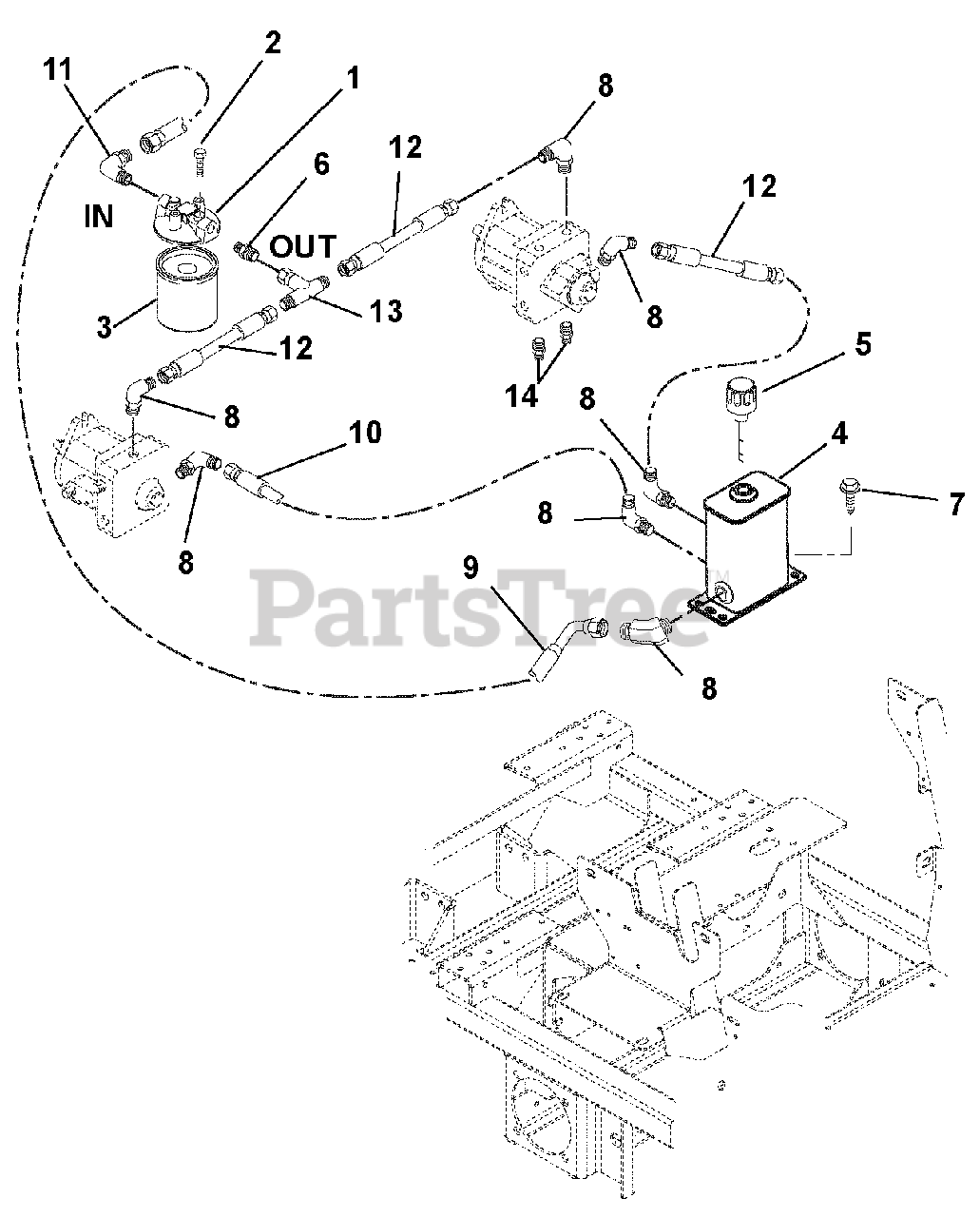

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5 Epoxy
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03931900

Filter Element

$26.99

$

In Stock, Qty 20+

0

4

Gravely 02985351

Body, Hydraulic Tank

$170.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Breather, Dipstick

$

$

Not available

6

Gravely 07059900

Fitting, Hydraulic, Straight

$9.49

$

In Stock, only 4 left!

0

7

Gravely 07415400

Screw, Tapping Hex Washer Head .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07069600

Fitting, Hydraulic, 90° Elbow

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 00364600

Hose, Hydraulic Valve to Tank

$100.99

$

Usually ships in 4-12 days

0

10

Gravely 00364500

Hose, Hydraulic, 10"

$56.99

$

Usually ships in 4-12 days

0

11

Gravely 07069600

Fitting, Hydraulic, 90° Elbow

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 00364400

Hose, Hydraulic .50, 5"

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 07069400

Fitting, Hydraulic Tee

$

$

Not available

14

Gravely 07063700

Fitting, Hydraulic (4 F5OLO)

Note: (4 F5OLO)

$

$

Not available

* Use Mobil 1 15W50 Extended Performance Synthetic Oil or Equivalent (Gravely p/n 00057100)

* Use Mobil 1 15W50 Extended Performance Synthetic Oil or Equivalent (Gravely p/n 00057100)

Note: (Gravely p/n 00057100)

$

$

Not available
