992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

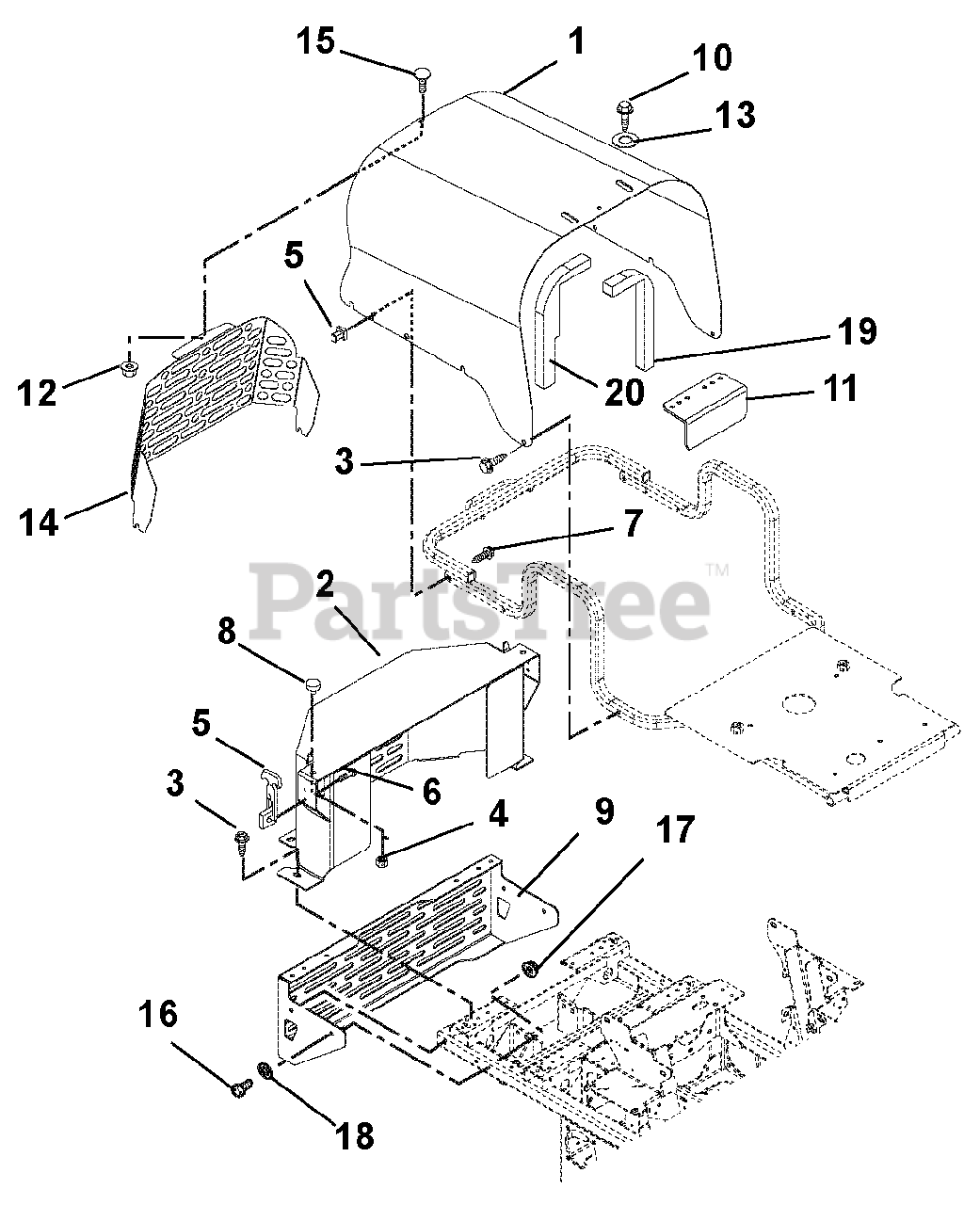

Hood And Bumper Parts Diagram

  • Title

1

Gravely 04046653

Hood

$93.99

$

Usually ships in 4-12 days

0

2

Gravely 04168553

Diesel Belt Guard

$180.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

6

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06118200

Screw, Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

9

Gravely 04168453

Bumper, Weldment, Rear Diesel

$

$

Not available

10

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00468153

Guard, Radiator Cap

$

$

Not available

12

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 04046751

Guard, Hood

$

$

Not available

15

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06436200

Washer, Flat Steel .406 x .812 x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00480800

Dam, Foam Air Left Side

$252.99

$

Usually ships in 4-12 days

0

20

Gravely 00619200

Dam, Foam Air Right Side

$148.99

$

In Stock, only 1 left!

0
