992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

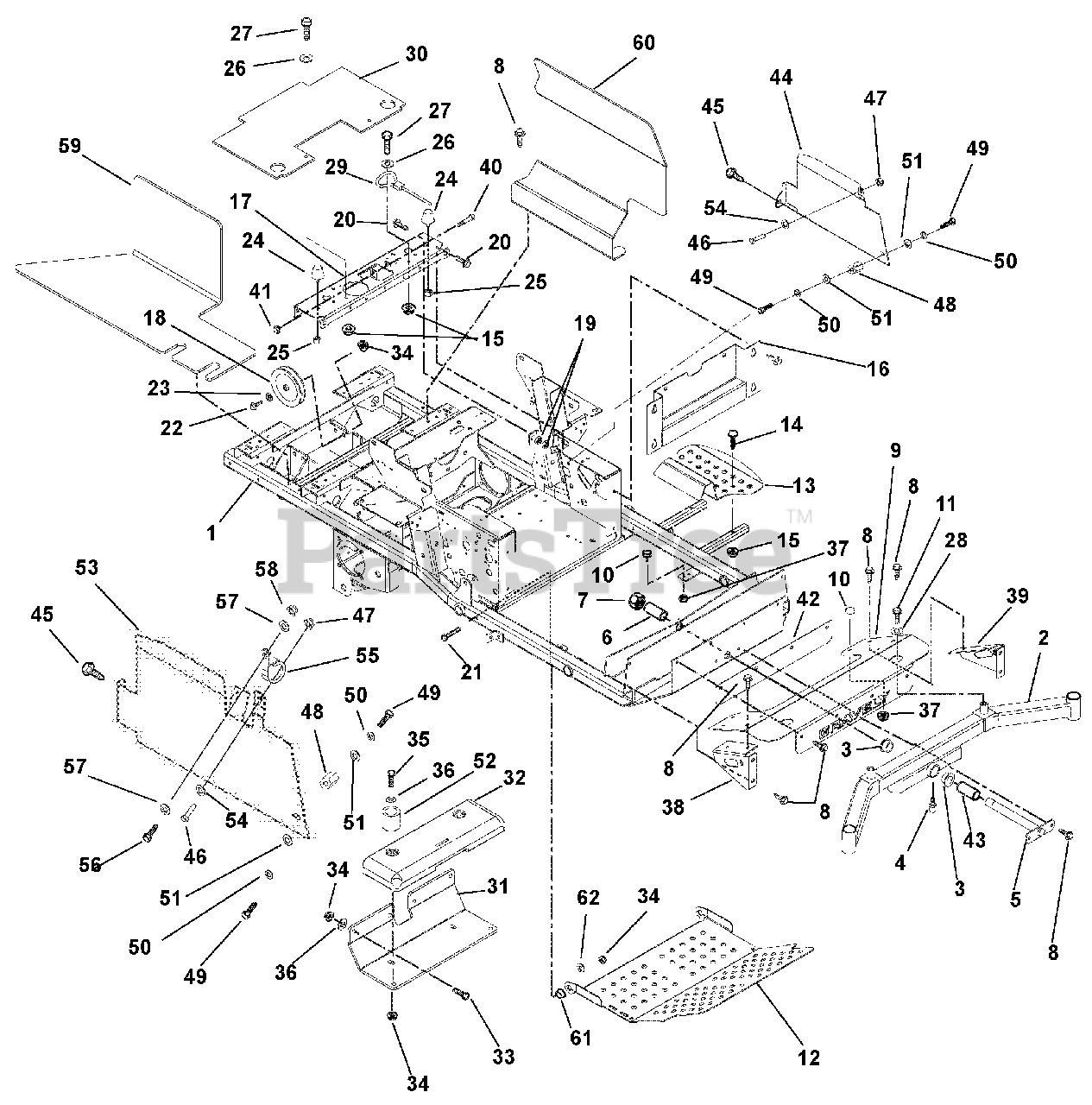

Frame Parts Diagram

  • Title

1

Gravely 00443253

Weldment, Frame

$2255.99

$

Usually ships in 4-12 days

0

2

Gravely 00978153

Weldment, Front Axle

$682.99

$

Usually ships in 4-12 days

0

3

Gravely 05500914

Bushing, Flange 1.25 x 1.50 x 1.00 x .200

$21.99

$

In Stock, only 2 left!

0

4

Gravely 07012700

Fitting, Lube 45 Degree GM411031

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 09232000

Pin, Axle

$68.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

Spacer

$20.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

Nut, Locking Nylon 1.0-14

$9.49

$

In Stock, only 2 left!

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03998953

Axle Cover

$140.99

$

In Stock, only 1 left!

0

10

Gravely 07533600

Button, Bumper

$11.99

$

In Stock, only 1 left!

0

11

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.49

$

In Stock, only 4 left!

0

12

Gravely 04180451

Panel, Inspection

$

$

Not available

13

Gravely 09231251

Step, Ingress

$

$

Not available

14

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

15

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00483153

Plate, Kick

$

$

Not available

17

Gravely 04044953

Channel, Cross

$

$

Not available

18

Gravely 07328000

Pulley, Idler

$108.99

$

In Stock, only 1 left!

0

19

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

20

Gravely 07049900

Bolt, Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

23

Gravely 06436600

Washer, Flat Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07533000

Bumper

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06446300

Washer, Flat Steel .064 x 1.810 x .250
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06400829

Washer, Flat Steel .64 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

29

Gravely 06900010

Cable, Seat Prop

$50.99

$

Usually ships in 4-12 days

0

30

Gravely 00436900

Guard, Grass

$45.99

$

Usually ships in 4-12 days

0

31

Gravely 04305851

Bracket, Support Arm

$

$

Not available

32

Gravely 00172000

Weight, Cast Iron

$297.99

$

Usually ships in 4-12 days

0

33

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

34

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05962300

Bolt, Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

36

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03972253

Weldment, Axle Cover Support Right Hand

$84.99

$

Usually ships in 4-12 days

0

39

Gravely 03972353

Weldment, Axle Cover Support Left Hand

$84.99

$

Usually ships in 4-12 days

0

40

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 03999051

Plate, Backer

$16.99

$

Usually ships in 4-12 days

0

43

Gravely 00978200

Spacer, 1.25 OD x 1.0 ID x 3.63

$25.99

$

Usually ships in 4-12 days

0

44

Gravely 04327251

Plate, Guard, Debris

$

$

Not available

45

Gravely 07412900

Screw, Tapping Hex Washer Head .38-16 x .50 TR
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 05900019

Bolt, Hex Washer Head .25-20 x .75 Grade 5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 06500012

Nut, Nyloc, Flanged, .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

48

Gravely 07001630

Nut, Coupling .31-18 x 2.25 LG

$32.99

$

Usually ships in 4-12 days

0

49

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06308600

Washer, Locking .31 x .078 Reg
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

51

Gravely 06437200

Washer, Flange, Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

52

Gravely 04318953

Spacer, .563 x 6.25 x .969

$

$

Not available

53

Gravely 04339651

Bracket, Guard Right Hand

$

$

Not available

54

Gravely 06426600

Washer, Plated, Steel
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

55

Gravely 06917900

Clamp, Steel

$14.99

$

Usually ships in 4-12 days

0

56

Gravely 05958000

Bolt, .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

58

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

59

Gravely 04280851

Guard, Diesel Left Hand

$

$

Not available

60

Gravely 04280951

Guard, Diesel Right Hand

$

$

Not available

61

Gravely 05532100

Bushing, Flange .515 x .75 x .275

$

$

Not available

62

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
