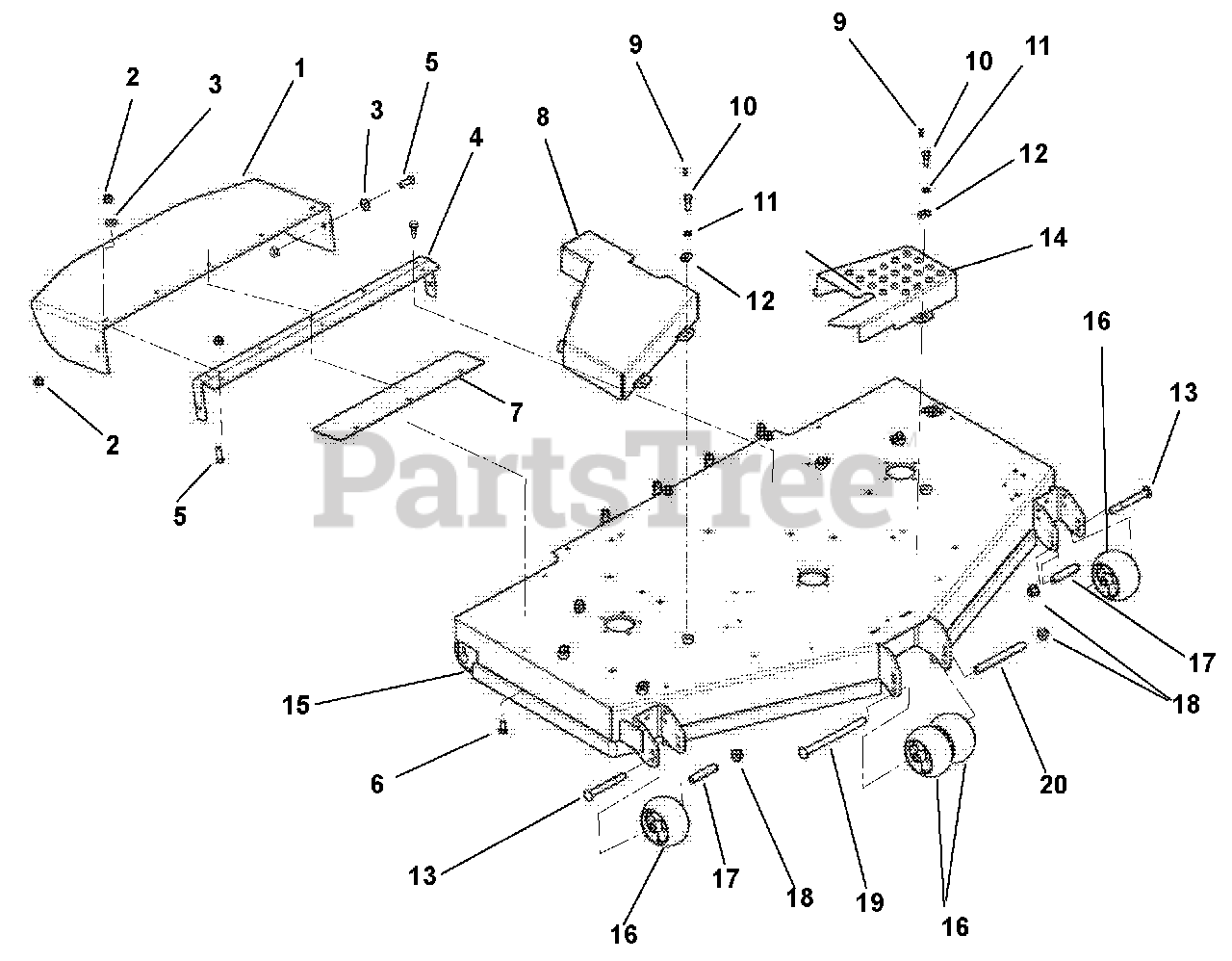

992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 04309300

Chute, Rubber Discharge

$62.99

$

Usually ships in 4-12 days

0

2

Gravely 06545500

Nut, Locking Nyloc, Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04309253

Support, Rubber Discharge Chute

$63.99

$

Usually ships in 4-12 days

0

5

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

7

Gravely 04319051

Plate, Discharge Chute Support

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 04353351

Guard, Belt, Right – 60" Deck

$112.99

$

Usually ships in 4-12 days

0

9

Gravely 06800028

Rivet, Pop, 0.187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 16

0

10

Gravely 07001625

Bolt, Hex 0.38-16 x 1.25

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 06308700

Washer, Locking, Ext. 0.391 x 0.628 x 0.036

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 04183000

Keeper, Bolt

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 04357551

Guard, Belt, Spindle Left Hand

$71.99

$

Usually ships in 4-12 days

0

15

Gravely 04147453

Weldment, 60" Rear Discharge Deck

$1610.99

$

Usually ships in 4-12 days

0

16

Gravely 03905900

Anti-Scalp Wheel

$11.99

$

In Stock, Qty 20+

0

17

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

18

Gravely 06500010

Nut, Locking, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

20

Gravely 00473800

Spacer, .510 x .625 x 6.70

$21.99

$

In Stock, Qty 20+

0
