992217 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki (SN: 030000 - 040999) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki

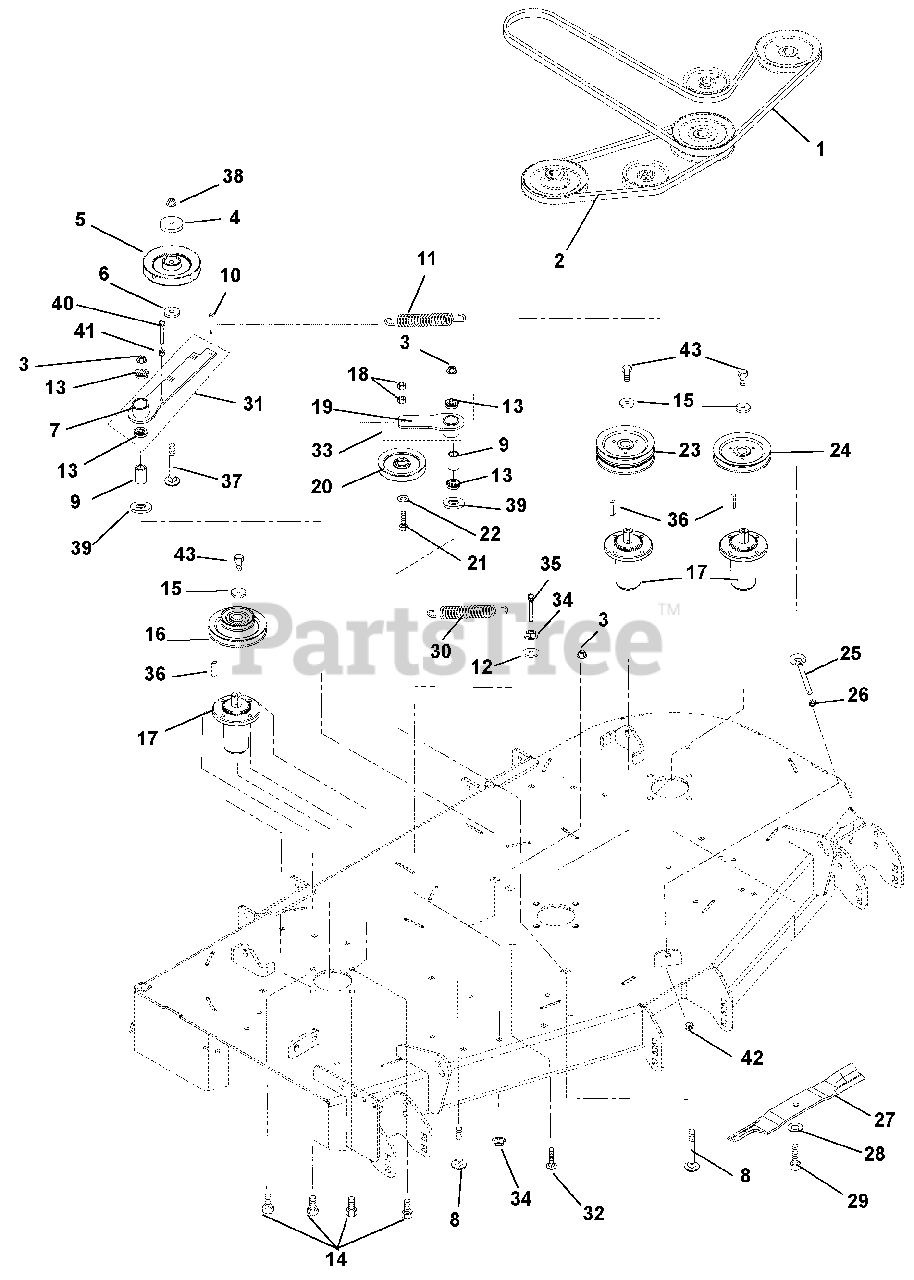

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200028

Belt, 130" Long, PTO Drive Hex

$133.99

$

In Stock, Qty 5

0

2

Gravely 07200038

V-Belt, 63" Long Cog B-Section

$67.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

5

Gravely 07300527

Sheave, .50" ID x 6.00" OD V-Idler

$53.99

$

In Stock, Qty 20+

0

6

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

0

7

Gravely 09357151

Weldment, Idler Arm
(Superseded to 59219200)

$125.99

$

Usually ships in 4-12 days

0

8

Gravely 06200216

Bolt, Round Head Square Neck .50-13 x 3.25
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 09357700

Spacer .510 x .75 x 1.1485

$4.99

$

In Stock, only 3 left!

0

10

Gravely 07000034

Bolt, Shoulder .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

11

Gravely 08300505

Spring, Extension

$25.99

$

In Stock, Qty 20+

0

12

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

13

Gravely 05480000

Bearing, Ball, .50 x 1.38 x .438

$13.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04530500

Retainer, Sheave

$7.99

$

In Stock, Qty 20+

0

16

Gravely 07329167

Sheave, Double, 1" ID x 6.75" x 4.25" OD

$84.99

$

In Stock, Qty 7

0

17

Gravely 59215400

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09357251

Weldment, Idler Arm - RH
(Superseded to 59104900)

$66.99

$

In Stock, only 1 left!

0

20

Gravely 07340100

Assembly, V-Idler 5.00 O.D.
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

21

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07328867

Sheave, Double 1" ID x 6.75" OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

24

Gravely 07328967

Sheave, Single 1" ID x 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

25

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09081200

Blade, Mower (20.50")

Note: (20.50")

$29.99

$

In Stock, Qty 20+

0

28

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, only 3 left!

0

29

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Gravely 59104800

Assembly, PTO Idler Arm

$85.99

$

Usually ships in 4-12 days

0

32

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

33

Gravely 59104900

Assembly, Right Hand V-Side Idler Arm

$66.99

$

In Stock, only 1 left!

0

34

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5 YZ
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 15

0

37

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 16

0

38

Gravely 06500010

Nut, Locking Nylon-Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04714600

Spacer, Idler Arm

$5.99

$

In Stock, Qty 20+

0

40

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

41

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06545500

Nut, Locking Nylon-Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 05963000

Bolt, 3/8-16 x 2.75 Grade 8
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0
