992216 (PM 272H XDZ) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Daihatsu

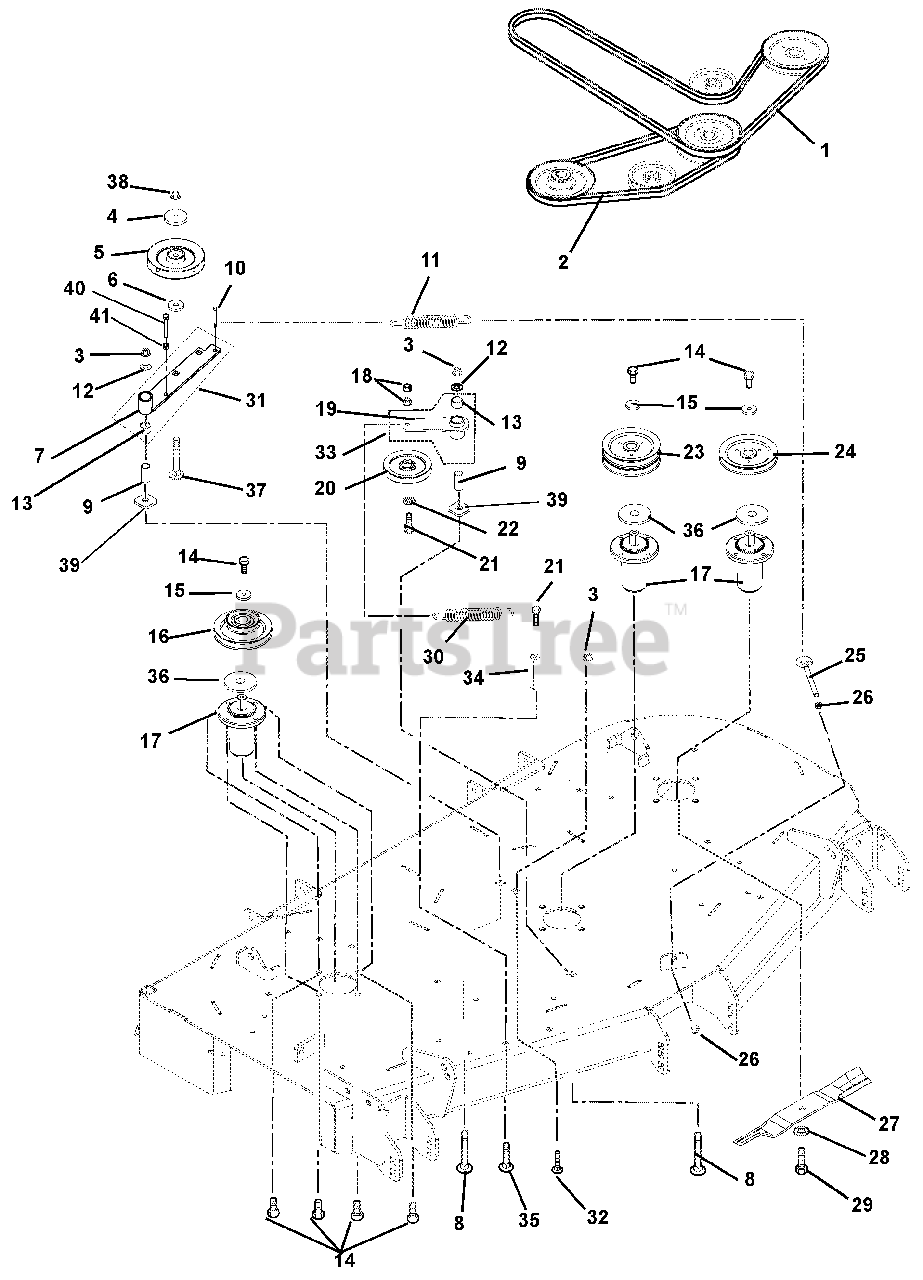

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200030

Belt, 184.4" Long, PTO Drive Hex (215)

Note: (215)

$150.99

$

In Stock, only 1 left!

0

Gravely 07200033

Belt, 199" Long, PTO Drive Hex (216)

Note: (216)

$193.99

$

In Stock, only 1 left!

0

2

Gravely 07200038

V-Belt, 63" Long Cog B-Section (215)

Note: (215)

$67.99

$

In Stock, Qty 20+

0

Gravely 07200039

V-Belt, 76" Long Cog B-Section (216)

Note: (216)

$75.99

$

In Stock, Qty 10

0

3

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

5

Gravely 07300527

Sheave, .50"ID x 6.00"OD V-Idler

$53.99

$

In Stock, Qty 20+

0

6

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

0

7

Gravely 03774251

Weldment, Idler Arm

$68.99

$

In Stock, only 1 left!

0

8

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

9

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

10

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

11

Gravely 08300505

Spring, Extension (Deck Idler)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 07329167

Sheave, Double, 1" ID x 6.75" x 4.25" OD (215)

Note: (215)

$84.99

$

In Stock, Qty 7

0

Gravely 07300027

Sheave, Double, 1" ID x 8.25" and 5.25" OD (216)
(Superseded to 59217500)

Note: (216)

$118.99

$

In Stock, only 2 left!

0

17

Gravely 69219700

Spindle Assembly (216)
(Superseded to 59225700)

Note: (216)

$239.99

$

In Stock, Qty 20+

0

Gravely 69221300

Spindle Assembly (215)
(Superseded to 59225700)

Note: (215)

$239.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03774151

Weldment, Idler Arm

$51.99

$

In Stock, only 1 left!

0

20

Gravely 07300526

Assembly, V-Idler 5.00 O.D.
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

21

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07328867

Sheave, Double 1" ID x 6.75" OD (215)
(Superseded to 59211500)

Note: (215)

$91.99

$

In Stock, Qty 20+

0

Gravely 07300023

Sheave, Double 1" ID x 8.25" OD (216)
(Superseded to 59217300)

Note: (216)

$194.99

$

Usually ships in 4-12 days

0

24

Gravely 07328967

Sheave, Single 1" ID x 6.75" OD (215)
(Superseded to 59211600)

Note: (215)

$82.99

$

In Stock, Qty 8

0

Gravely 07300024

Sheave, Single 1" ID x 8.25" OD (216)
(Superseded to 59217400)

Note: (216)

$118.99

$

In Stock, only 1 left!

0

25

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09081200

Blade, Mower (20.50") (215)

Note: (20.50") (215)

$29.99

$

In Stock, Qty 20+

0

Gravely 08866900

Blade, Mulching Mower (20.50") (215)

Note: (20.50") (215)

$37.99

$

In Stock, Qty 20+

0

Gravely 09290500

Blade, Mower (24.50") without Tungsten Carbide Hardfacing (216)

Note: (24.50") without Tungsten Carbide Hardfacing (216)

$37.99

$

In Stock, Qty 20+

0

Gravely 09290600

Blade, Mulching Mower (24.50") (216)

Note: (24.50") (216)

$39.99

$

In Stock, only 3 left!

0

28

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, only 3 left!

0

29

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Gravely 03796300

Assembly, PTO Idler Pivot Arm (Includes item # 7 and item # 13)
(Superseded to 59218300)

Note: (Includes item # 7 and item # 13)

$79.99

$

In Stock, only 1 left!

0

32

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

33

Gravely 03796400

Assembly, Idler Arm (Includes item # 13 and item # 19 )

Note: (Includes item # 13 and item # 19 )

$62.99

$

Usually ships in 4-12 days

0

34

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

35

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

37

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 16

0

38

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

40

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

41

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0
