992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Mounting Arms, Link Chains & Deck Bumpers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

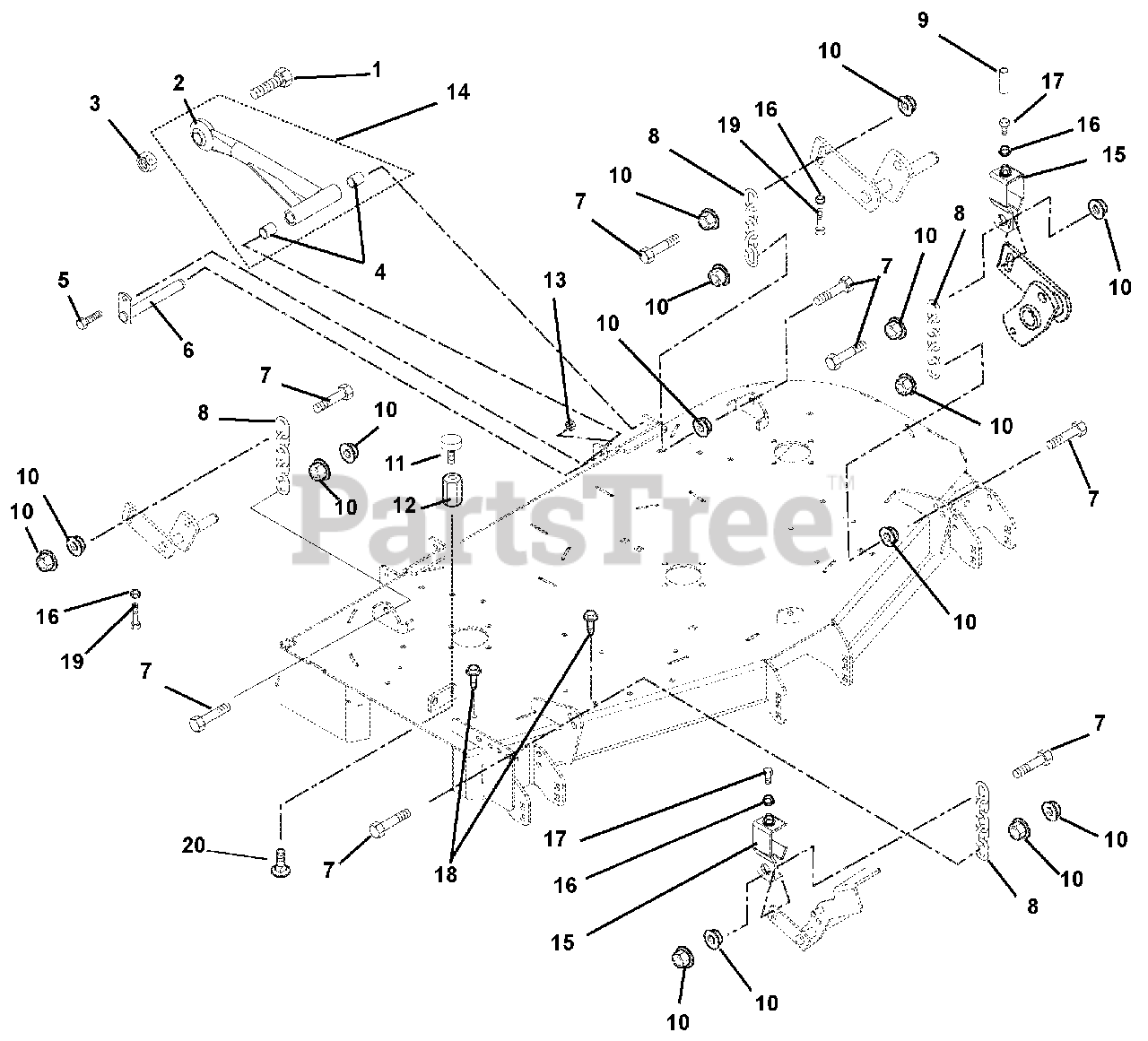

Mounting Arms, Link Chains & Deck Bumpers Parts Diagram

  • Title
1

Gravely 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$7.99

$

In Stock, only 1 left!

0

2

Gravely 00439051

MOWER MOUNTING ARM WMT - BLACK

$155.99

$

Usually ships in 4-12 days

0

3

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$5.99

$

In Stock, Qty 11

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 3 left!

0

5

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

7

Gravely 05900022

BLT, HEX M12-1.75X50 CLS8.8 YZ

$3.99

$

In Stock, only 1 left!

0

8

Gravely 09284700

CHAIN, LINK

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 07539500

CAP-VINYL .50ID X 1.50LG X.055

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.49

$

In Stock, only 1 left!

0

11

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00439200

ASSM, MOWER MOUNTING ARM

Note: (Includes item # 2 and item # 4)

$156.99

$

Usually ships in 4-12 days

0

15

Gravely 00442800

BRKT, DECK LEVELING

$9.49

$

In Stock, only 2 left!

0

16

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05980900

BLT-HEX .312-18X2.00 FTH GR5YZ
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

18

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (215)

$1.49

$

In Stock, Qty 20+

0

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (216)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05900035

BLT-HEX .312-18X1.50 FTH GR5YZ

$

$

Not available

20

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
