992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

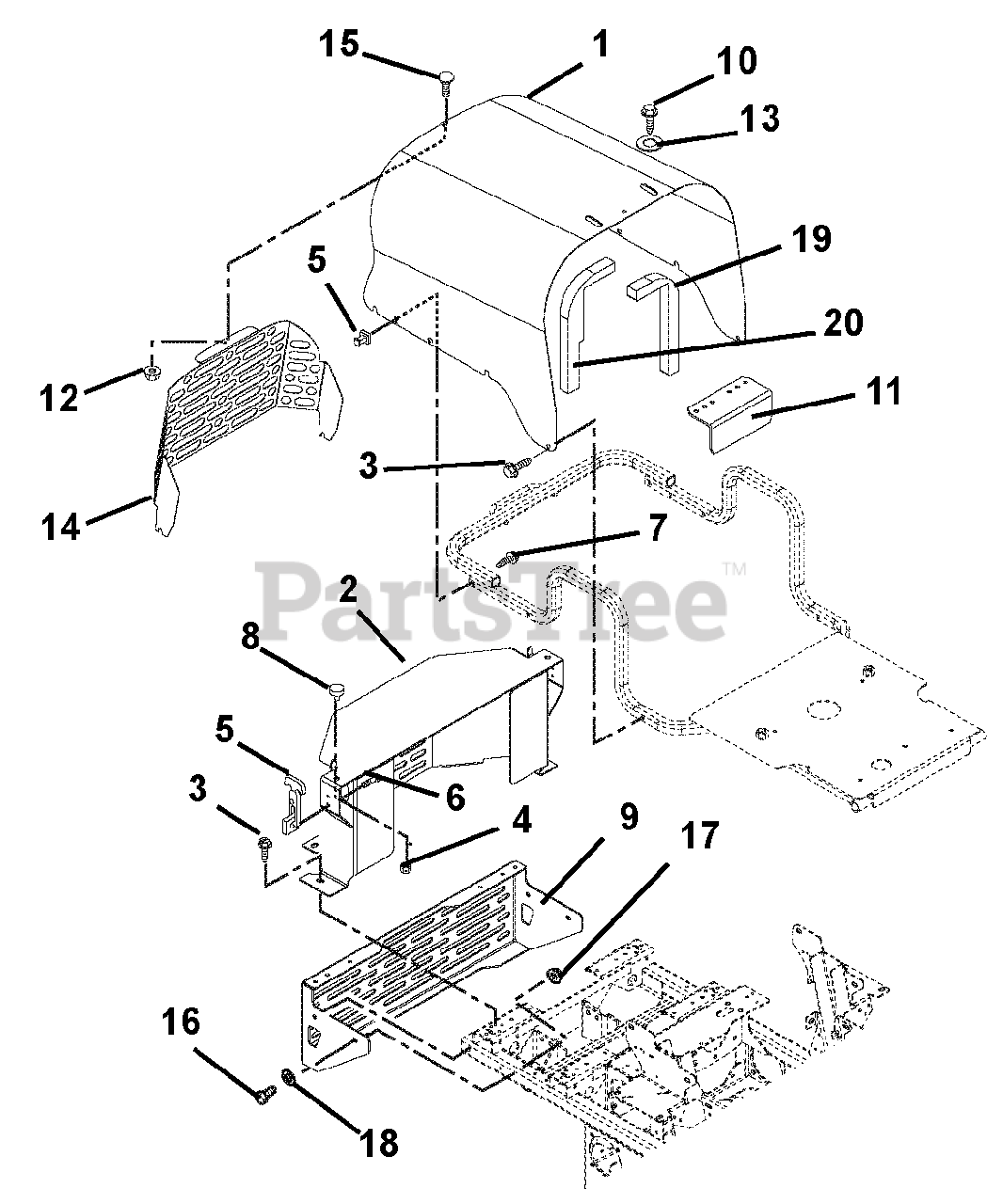

Hood And Bumper Parts Diagram

  • Title
1

Gravely 04046653

HOOD-L/C - RED

$93.99

$

Usually ships in 4-12 days

0

2

Gravely 04168553

WMT-DIESEL BELT GUARD

$180.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0

6

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06118200

@SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

9

Gravely 04168453

WMT-BUMPER-PM200

$

$

Not available

10

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00468153

GUARD, RADIATOR CAP- DIESEL

$

$

Not available

12

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 04046751

GUARD-L/C HOOD - BLACK

$

$

Not available

15

Gravely 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00480800

DAM, LEFT SIDE FOAM AIR

$252.99

$

Usually ships in 4-12 days

0

20

Gravely 00619200

DAM, RIGHT SIDE FOAM AIR

$148.99

$

In Stock, only 1 left!

0
