992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

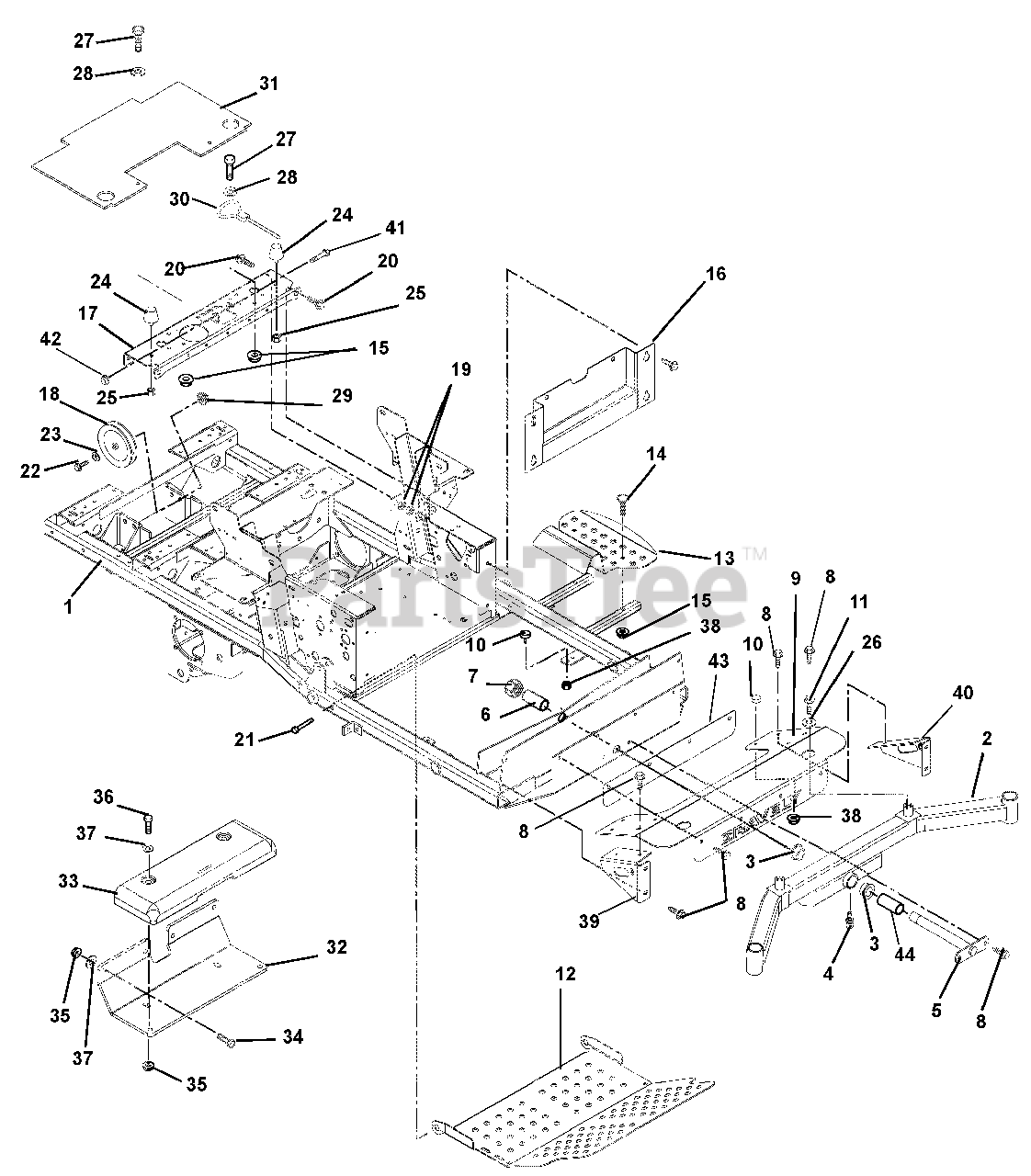

Frame Parts Diagram

  • Title
1

Gravely 00443253

WLDMT, FRAME

$2255.99

$

Usually ships in 4-12 days

0

2

Gravely 00978153

WMT, FRONT AXLE

$682.99

$

Usually ships in 4-12 days

0

3

Gravely 05500914

BUSH, FLG 1.25X1.50X1.00X.200

$21.99

$

In Stock, only 2 left!

0

4

Gravely 07012700

FTG,LUBE 45 DEG

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 09232000

PIN - AXLE

$68.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

SPACER 1.009 X 1.250 X 4.23

$20.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

NUT-LK-NYL 1.0-14 YWZC

$9.49

$

In Stock, only 2 left!

0

8

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03998953

AXLE COVER

$140.99

$

In Stock, only 1 left!

0

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

11

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

12

Gravely 04180451

PANEL-INSPECTION

$

$

Not available

13

Gravely 09231251

STEP, INGRESS (BLACK)

$

$

Not available

14

Gravely 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

15

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00483153

PLATE - KICK

$

$

Not available

17

Gravely 04044953

BRACE, SEAT CROSS WITH LATCH

$

$

Not available

18

Gravely 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$108.99

$

In Stock, only 1 left!

0

19

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

20

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

22

Gravely 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 6

0

23

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 3 left!

0

27

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

29

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06900010

CABLE, SEAT PROP.

$50.99

$

Usually ships in 4-12 days

0

31

Gravely 00436900

GUARD - GRASS

$45.99

$

Usually ships in 4-12 days

0

32

Gravely 00475351

BRACKET - WEIGHT - 252

$220.99

$

Usually ships in 4-12 days

0

33

Gravely 00172000

WEIGHT, CAST IRON

$297.99

$

Usually ships in 4-12 days

0

34

Gravely 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

35

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

37

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 03972253

WMT - RH AXLE COVER SUPPORT

$84.99

$

Usually ships in 4-12 days

0

40

Gravely 03972353

WMT - LH AXLE COVER SUPPORT

$84.99

$

Usually ships in 4-12 days

0

41

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

42

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 03999051

PLATE, BACKER

$16.99

$

Usually ships in 4-12 days

0

44

Gravely 00978200

SPCR, 1.25ODX1.0IDX3.63

$25.99

$

Usually ships in 4-12 days

0
