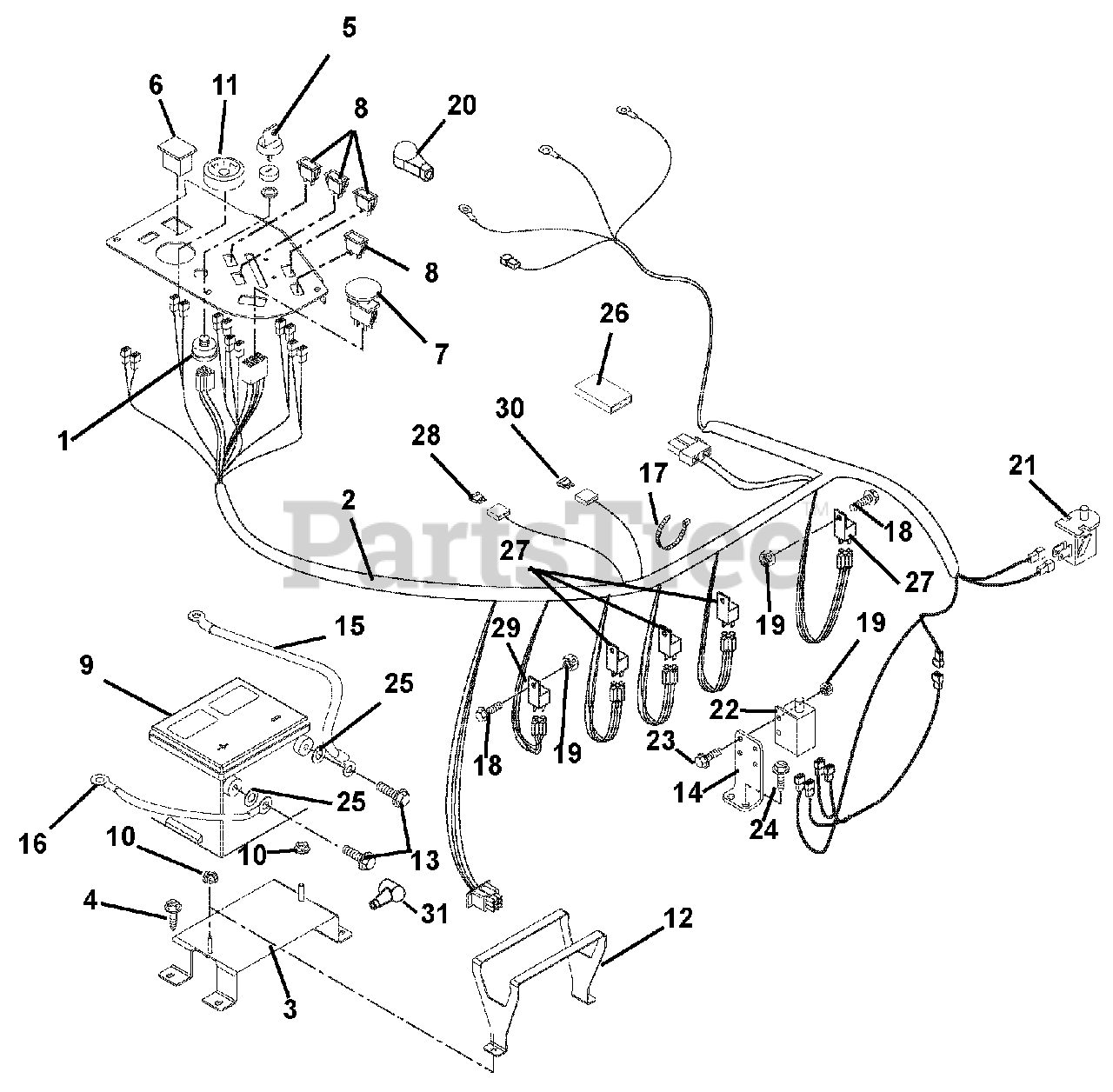

992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

2

Gravely 04294100

HARNESS-WIRE PM200 HORIZ. L/C

$

$

Not available

3

Gravely 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

Gravely 21510400

IGNITION KEY SET

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

7

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 04087300

BATTERY-GROUP 70-540 CCA

$

$

Not available

10

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09080200

GAUGE, TEMPERATURE

$98.99

$

Usually ships in 4-12 days

0

12

Gravely 04089351

BRACKET-BATTERY HOLD-DOWN

$71.99

$

Usually ships in 4-12 days

0

13

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

14

Gravely 09275851

MOUNT, SAFETY SWITCH

$21.99

$

In Stock, only 1 left!

0

15

Gravely 03287000

CABLE - POS BATT W/BOOTS 4X48

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

$32.99

$

Usually ships in 4-12 days

0

17

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

18

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

19

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00678000

BOOT, TERMINAL, RED

$

$

Not available

21

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.) (Included with Seat)

$9.49

$

In Stock, Qty 20+

0

22

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

23

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

24

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

27

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

28

Gravely 21542000

FUSE, ATO 30 AMP
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

29

Pre-Heat Timer (Included with Engine)

Note: (Included with Engine)

$

$

Not available

30

Gravely 21542200

FUSE, ATO 60 AMP
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

31

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0
