992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

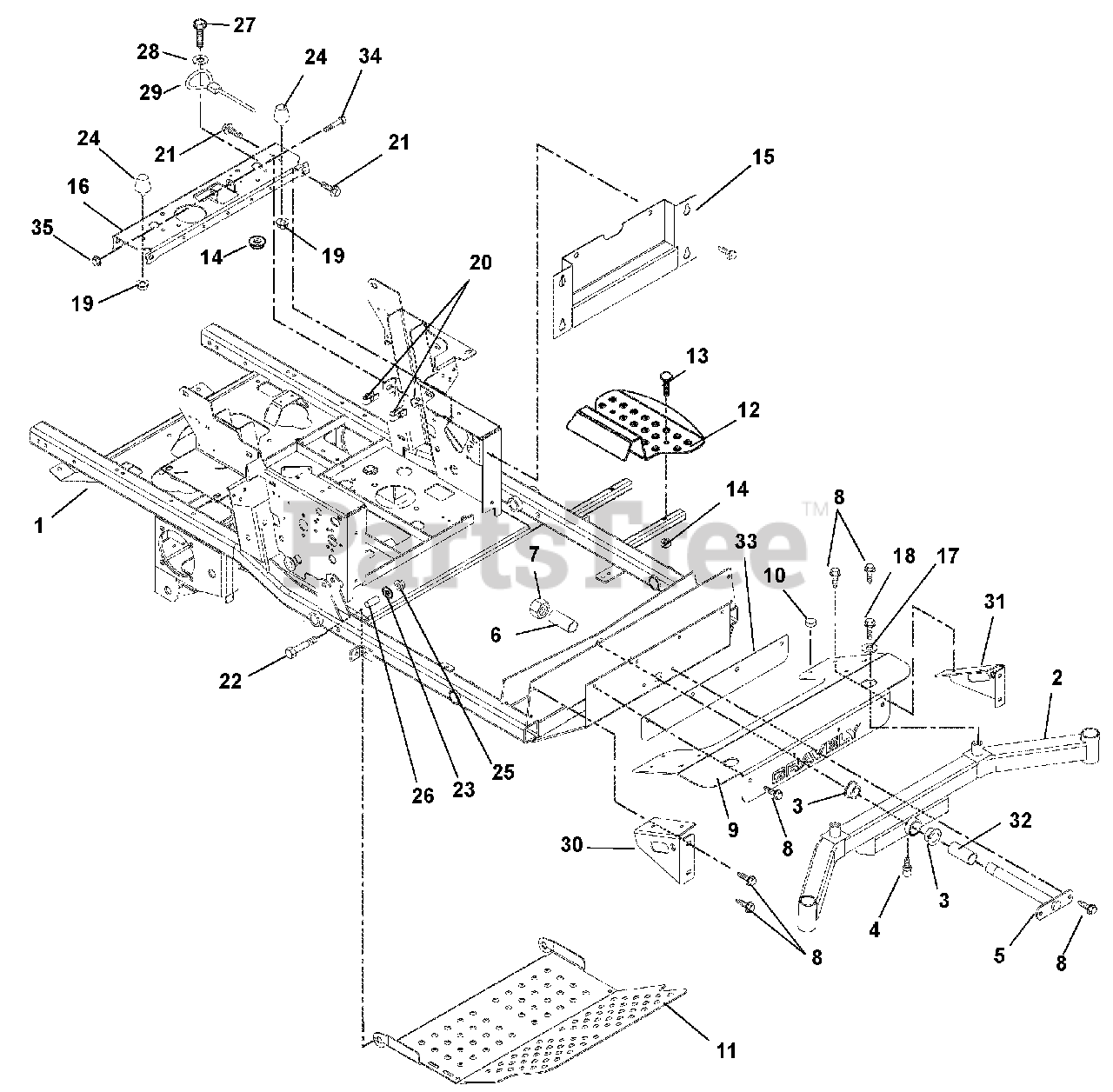

Frame Parts Diagram

  • Title

1

Gravely 00595253

Weldment, Frame

$1934.99

$

Usually ships in 4-12 days

0

2

Gravely 00978153

Weldment, Axle

$682.99

$

Usually ships in 4-12 days

0

3

Gravely 05500914

Bushing, Flange 1.25 x 1.50 x 1.00 x .200

$21.99

$

In Stock, only 2 left!

0

4

Gravely 07012700

Fitting, Lube 45 Degree GM411031

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 09232000

Pin, Axle

$68.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

Spacer

$20.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

Nut, Locking Nylon 1.00-14

$9.49

$

In Stock, only 2 left!

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03998953

Axle Cover

$140.99

$

In Stock, only 1 left!

0

10

Gravely 07533600

Button, Rubber

$11.99

$

In Stock, only 1 left!

0

11

Gravely 04180451

Panel, Inspection

$

$

Not available

12

Gravely 09231251

Step, Ingress

$

$

Not available

13

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

14

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03795553

Plate, Kick

$

$

Not available

16

Gravely 04044953

Channel, Cross

$

$

Not available

17

Gravely 06435200

Washer, Flat Steel .640 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.49

$

In Stock, only 4 left!

0

19

Gravely 06530400

Nut, Locking Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

21

Gravely 07049900

Bolt, Serrated Hex Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

24

Gravely 07533000

Bumper

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05532100

Bushing, Flange .515 x .75 x .275 x 1.12

$

$

Not available

27

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

29

Gravely 06900010

Cable, Seat Prop.

$50.99

$

Usually ships in 4-12 days

0

30

Gravely 03972253

Weldment, Right Hand Axle Cover Support

$84.99

$

Usually ships in 4-12 days

0

31

Gravely 03972353

Weldment, Left Hand Axle Cover Support

$84.99

$

Usually ships in 4-12 days

0

32

Gravely 00978200

Spacer, 1.25OD x 1.0ID x 3.63

$25.99

$

Usually ships in 4-12 days

0

33

Gravely 03999051

Plate, Backer

$16.99

$

Usually ships in 4-12 days

0

34

Gravely 05957800

Bolt, Hex .38-16X3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
