992213 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp, Hyd. Lift (SN: 003000 & Above) Hydro-Gear Hydrostatic Pump - Left Side Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp, Hyd. Lift

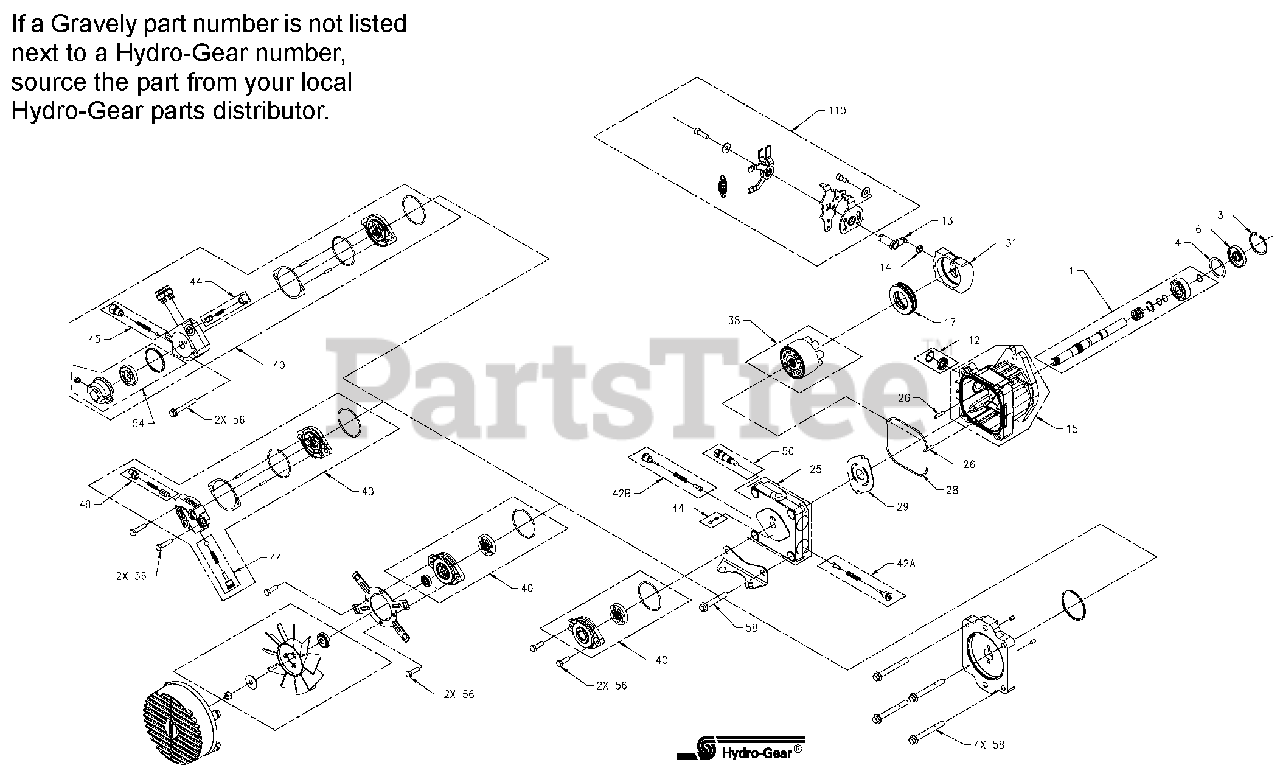

Hydro-Gear Hydrostatic Pump - Left Side Parts Diagram

  • Title
1

Gravely 21543908

Kit, Input Shaft

Note: 70581

$

$

Not available

3

Gravely 21543962

Ring, Retaining

Note: 2000038

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 21543961

Washer, 1.45 x 1.84 x .04

Note: 2000023

$

$

Not available

6

Gravely 21543796

Lip Seal, 17 x 47 x 8

Note: 51092

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 21543922

Kit, Trunnion Seal

Note: 70739

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 21543842

Trunnion Arm, Taper Square

Note: 51596

$

$

Not available

14

Gravely 08610700

Slot Guide

Note: 2000015

$

$

Not available

15

Gravely 21543943

Kit, Housing

Note: 71060

$393.99

$

Usually ships in 4-12 days

0

17

Gravely 21543747

Assembly, Thrust Ball Bearing

Note: 50552

$

$

Not available

25

Gravely 21543970

Kit, Encap

Note: 2510069

$298.99

$

Usually ships in 4-12 days

0

26

Gravely 21543750

Pin

Note: 50641

$

$

Not available

28

Gravely 21543742

O-Ring

Note: 50381

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 21543852

Valve Plate

Note: 51764

$

$

Not available

31

Gravely 21543729

Variable Swashplate

Note: 50203

$

$

Not available

38

Gravely 21543879

Kit, Cylinder Block

Note: 70082

$101.99

$

Usually ships in 4-12 days

0

40

Kit, Charge Pump

Kit, Charge Pump

Note: 70927

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve

Note: 70743

$

$

Not available

44

Kit, Charge Relief

Kit, Charge Relief

Note: 70926

$

$

Not available

45

Gravely 21543974

Kit, Auxilary Relief Valve

Note: 2510082

$23.99

$

Usually ships in 4-12 days

0

49

Kit, Auxilary Bypass/Check Kit

Kit, Auxilary Bypass/Check Kit

Note: 2510020

$

$

Not available

50

Gravely 21543979

Kit, Bypass Valve

Note: 2513030

$28.99

$

Usually ships in 4-12 days

0

54

Gravely 59210300

Kit, Auxilary Filter Kit

Note: 2510090

$

$

Not available

56

Gravely 21543784

Screw, 5/16-18 x 2.5

Note: 51055

$

$

Not available

58

Gravely 21543942

Kit, HSG Bolt

Note: 71059

$

$

Not available

NS

Kit, Overhaul Seal Kit

Kit, Overhaul Seal Kit

Note: 2510073

$

$

Not available

110

Gravely 21543936

Kit, Return

Note: 70870

$82.99

$

In Stock, only 1 left!

0
