992213 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp, Hyd. Lift (SN: 000101 - 002999) Fuel Tanks And Hoses - S/N 002500 - and up Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp, Hyd. Lift

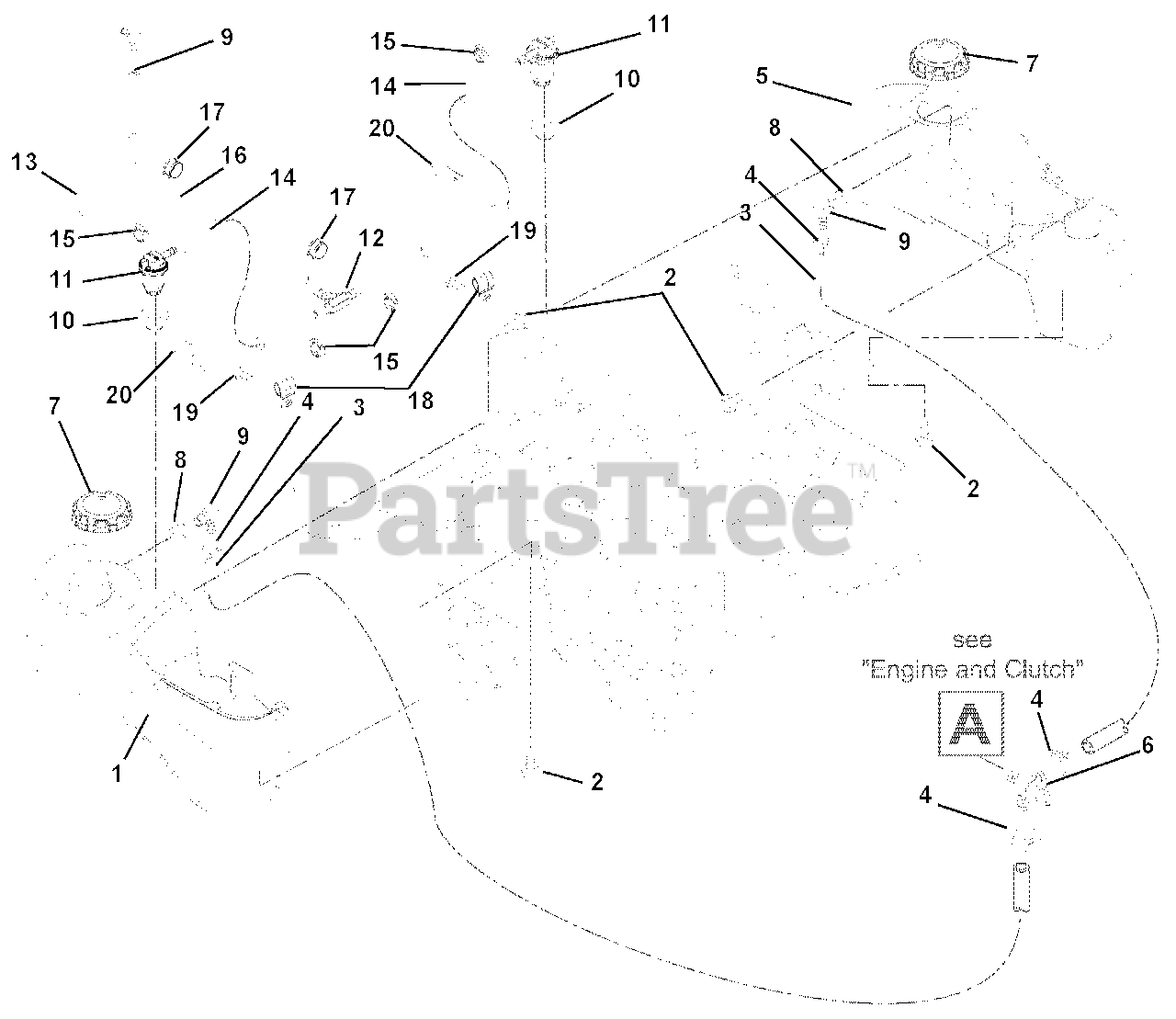

Fuel Tanks And Hoses - S/N 002500 - and up Parts Diagram

  • Title

1

Gravely 04245500

Tank, Fuel - Right Hand

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas (3 @ 42 in.)

Note: (3 @ 42 in.)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04245600

Tank, Left Hand Fuel

$

$

Not available

6

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

7

Gravely 04237300

Cap, Vent-in Ratchet Fuel
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

8

Gravely 00387300

Grommet

$9.49

$

In Stock, Qty 20+

0

9

Gravely 03900200

Assembly, Large Tank Fuel Pick-up
(Superseded to 04320800)

$34.99

$

In Stock, only 2 left!

0

10

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.49

$

In Stock, Qty 9

0

11

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

12

Gravely 04306900

Fuel Tee, .25 HS Run x .18 HS Branch

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 8

0

14

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03375900

Hose, .188 Low-PERM Bulk Gas

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 04097700

Clamp, Hose Spring .188

$

$

Not available

18

Gravely 06908200

Clamp, Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 07411500

Screw-Tapping .31-18 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0
