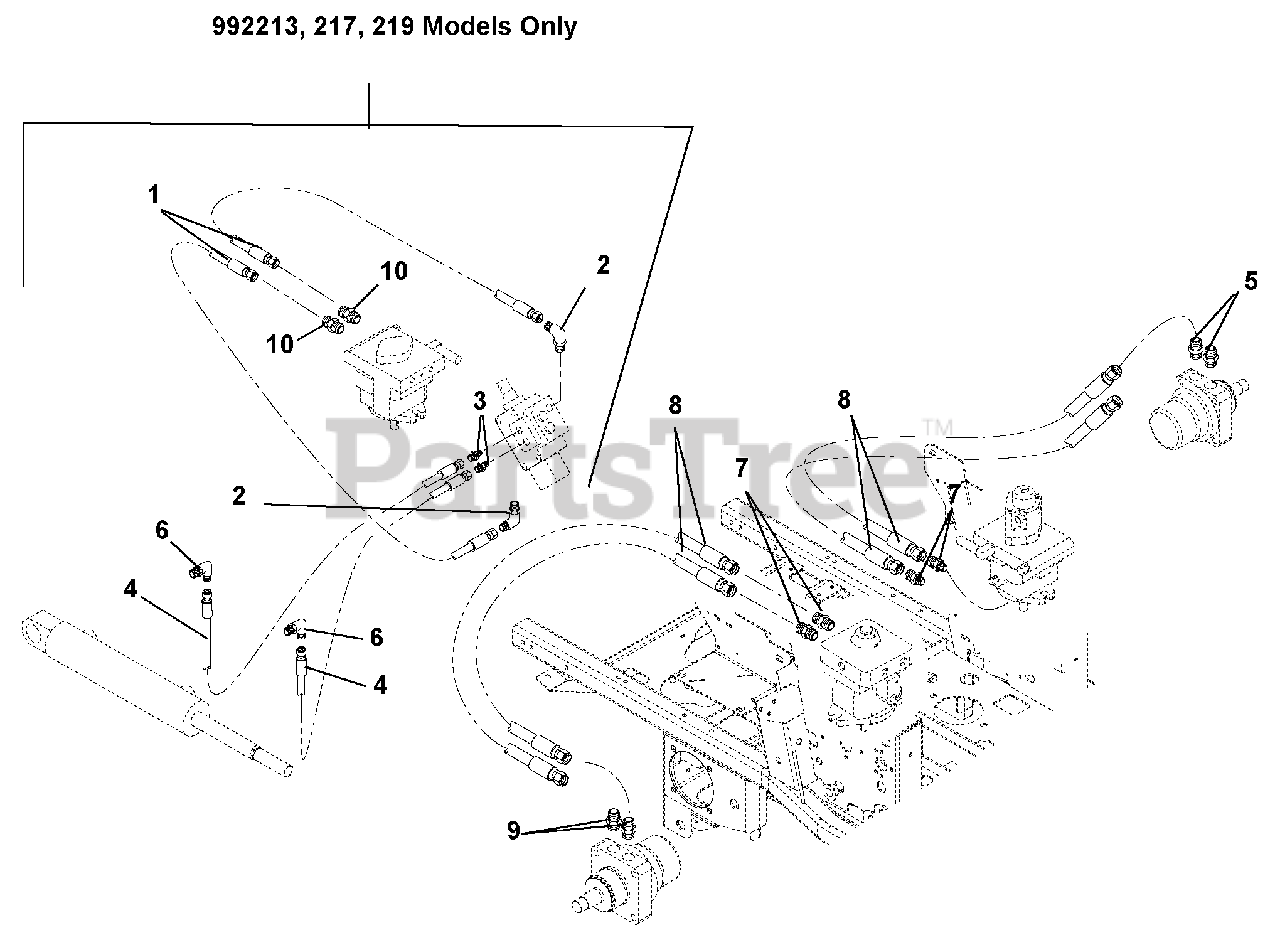

992210 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 003000 & Above) Hose Routing For Pumps, Wheel Motors And Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

Hose Routing For Pumps, Wheel Motors And Cylinder Parts Diagram

  • Title

1

Gravely 09291800

Hose, Hydraulic (992213, 217, 219)

Note: (992213, 217, 219)

$129.99

$

Usually ships in 4-12 days

0

2

Gravely 07067500

Hydraulic, Fitting Elbow (992213, 217, 219)

Note: (992213, 217, 219)

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 07063800

Adapter (4 – 6F5OLO) (992213, 217, 219)

Note: (4 – 6F5OLO) (992213, 217, 219)

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 09275400

Hose, Hydraulic (992213, 217, 219)

Note: (992213, 217, 219)

$137.99

$

Usually ships in 4-12 days

0

5

Gravely 07062100

Fitting, Hydraulic Straight (8 – 10 F5OLO – S)

Note: (8 – 10 F5OLO – S)

$14.99

$

In Stock, only 1 left!

0

6

Gravely 07063900

Fitting, Hydraulic (4 C5OLO) (992213, 217, 219)

Note: (4 C5OLO) (992213, 217, 219)

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 07059900

Adapter, Face Seal 8 x 8 .50 O-Ring

$9.49

$

In Stock, only 4 left!

0

8

Gravely 04925900

Hose, Hydraulic .50

$86.99

$

Usually ships in 4-12 days

0

9

Gravely 07062100

Adapter, Hydraulic Steel (M10 O – M8F)

Note: (M10 O – M8F)

$14.99

$

In Stock, only 1 left!

0

10

Gravely 07063700

Fitting, Hydraulic (4 F5OLO) (Supplied with pump) (992213, 217, 219)

Note: (4 F5OLO) (Supplied with pump) (992213, 217, 219)

$

$

Not available
