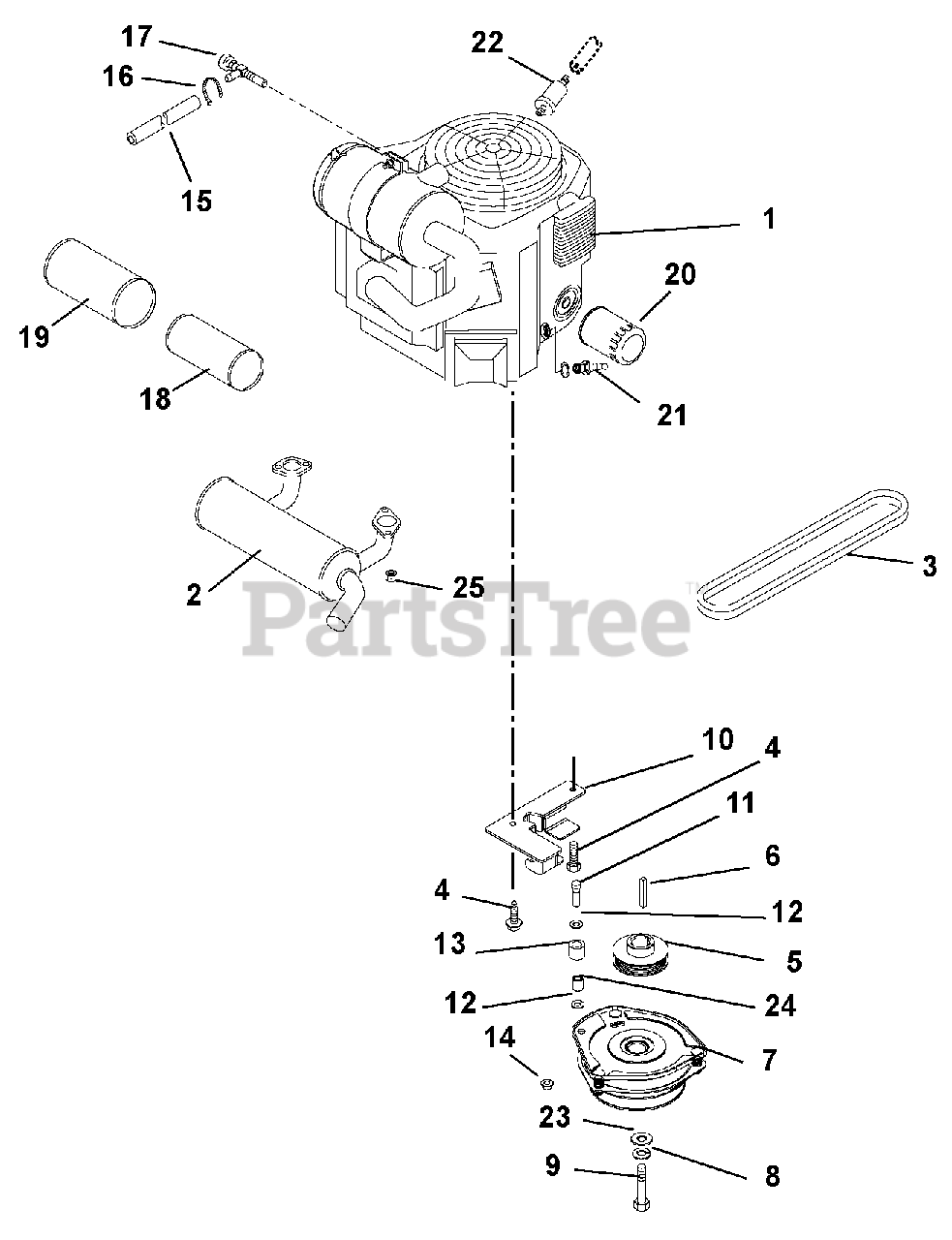

992210 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 003000 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200327

Engine, Kawasaki (FX751V) (992210, 212)

Note: (FX751V) (992210, 212)

$

$

Not available

Gravely 08200328

Engine, Kawasaki (FX850V) (992213, 217, 219)

Note: (FX850V) (992213, 217, 219)

$

$

Not available

2

Gravely 01057000

Muffler, Kawasaki Vertical

$252.99

$

Usually ships in 4-12 days

0

3

Gravely 07242000

Belt, Poly-V

$53.99

$

In Stock, Qty 20+

0

4

Gravely 05900125

Bolt, Hex .38-16 x 1.25 FTH G5 EP30
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 07300041

Sheave, Poly V 1.127 x 3.275

$93.99

$

In Stock, only 1 left!

0

6

Gravely 06600003

Key, Square .25 x 3.50 x .25 SA

$4.99

$

In Stock, Qty 7

0

7

Gravely 00447100

Clutch, Electric

$685.99

$

In Stock, only 1 left!

0

8

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

9

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 YZ EP80
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

10

Gravely 00662251

Anchor, Clutch

$82.99

$

Usually ships in 4-12 days

0

11

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

14

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03278100

Gas Line, Bulk .25 I.D.

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

17

Gravely 00429000

Drain, 1/2" Drain

$39.99

$

In Stock, only 1 left!

0

18

Gravely 21548700

Element, Inner Safety

$27.99

$

In Stock, Qty 20+

0

19

Gravely 21548800

Element, Outer Primary

$27.99

$

In Stock, Qty 20+

0

20

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

21

Gravely 21536100

Spark Plug

$3.49

$

In Stock, only 1 left!

0

22

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$

$

Not available

23

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

24

Gravely 08905500

Bushing, .407 x .625 x .813

$13.99

$

In Stock, only 1 left!

0

25

Gravely 06500018

Nut, Locking Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0
