992207 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB (SN: 020000 & Above) Engine Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB

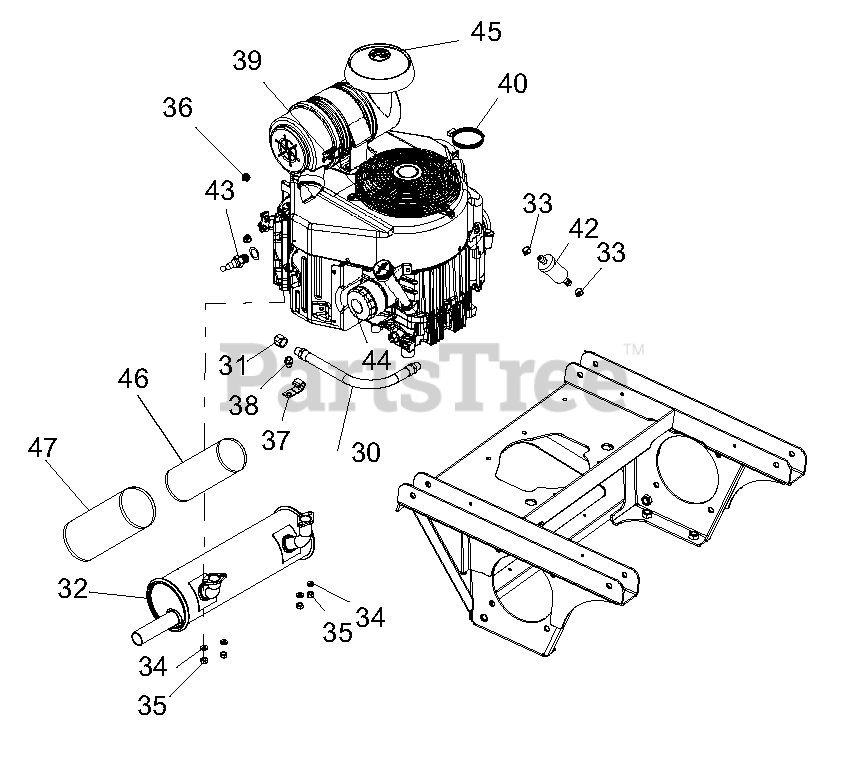

Engine Parts Diagram

  • Title

30

Gravely 03873100

HOSE, HYD .38-11-OK M6N0-M6N0 (992207, 230, 232, 234, 235, 239)
(Superseded to 07001829)

Note: (992207, 230, 232, 234, 235, 239)

$18.99

$

Usually ships in 4-12 days

0

Gravely 04058500

HOSE, HYD .38-14-OK M6N0-M6N0 (992231, 233)
(Superseded to 05155100)

Note: (992231, 233)

$20.99

$

In Stock, only 1 left!

0

31

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

32

Gravely 03911000

MUFFLER, 27-31 FX KAW (992207, 230, 232, 234)
(Superseded to 09386000)

Note: (992207, 230, 232, 234)

$168.99

$

Usually ships in 4-12 days

0

Gravely 04263000

MUFFLER, 34HP KAW VERT (992235, 239)

Note: (992235, 239)

$170.99

$

Usually ships in 4-12 days

0

Gravely 04262200

MUFFLER, KOHLER EFI (992231, 233)

Note: (992231, 233)

$325.99

$

Usually ships in 4-12 days

0

33

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

36

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 08200723

ENGINE, KAWASAKI FX751 (992230, 232)

Note: (992230, 232)

$

$

Not available

Gravely 08200628

ENGINE, KOHLER 747CC EFI (992231, 233)

Note: (992231, 233)

$

$

Not available

Gravely 08200724

ENGINE, KAWASAKI FX850 (992207, 234)

Note: (992207, 234)

$

$

Not available

Gravely 08200624

ENGINE, KAWASAKI FX921 (992235, 239)

Note: (992235, 239)

$

$

Not available

40

Gravely 06900339

CLAMP, HOSE 2.75 DIA (992207, 230, 232, 234, 235, 239)

Note: (992207, 230, 232, 234, 235, 239)

$

$

Not available

42

Gravely 21538400

FUEL FILTER (992207, 230, 232, 234, 235, 239)
(Superseded to 21573800)

Note: (992207, 230, 232, 234, 235, 239)

$

$

Not available

Gravely 21547528

FUEL FILTER (992231, 233)

Note: (992231, 233)

$14.99

$

In Stock, only 4 left!

0

43

Gravely 21536100

SPARK PLUG (992207, 230, 232, 234, 235, 239)

Note: (992207, 230, 232, 234, 235, 239)

$3.49

$

In Stock, Qty 20+

0

Gravely 21544000

SPARK PLUG (992231, 233)

Note: (992231, 233)

$3.49

$

In Stock, Qty 20+

0

44

Gravely 21538400

OIL FILTER (992207, 230, 232, 234, 235, 239)
(Superseded to 21573800)

Note: (992207, 230, 232, 234, 235, 239)

$

$

Not available

Gravely 21397200

OIL FILTER (992231, 233)
(Superseded to 20715100)

Note: (992231, 233)

$18.99

$

In Stock, only 4 left!

0

45

Gravely 09408700

CAP, AIR CLEANER INTAKE

$51.99

$

In Stock, only 1 left!

0

46

Gravely 21545300

ELEMENT, INNER SAFETY (992207, 230, 232, 234, 235, 239)

Note: (992207, 230, 232, 234, 235, 239)

$48.99

$

In Stock, Qty 7

0

Gravely 21536900

ELEMENT, INNER SAFETY (992231, 233)

Note: (992231, 233)

$28.99

$

In Stock, only 1 left!

0

47

Gravely 21545400

ELEMENT, OUTER PRIMARY (992207, 230, 232, 234, 235, 239)

Note: (992207, 230, 232, 234, 235, 239)

$36.99

$

In Stock, Qty 10

0

Gravely 21537000

ELEMENT, OUTER PRIMARY (992231, 233)

Note: (992231, 233)

$28.99

$

In Stock, only 2 left!

0
