992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 030000 - 030999) Engine Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

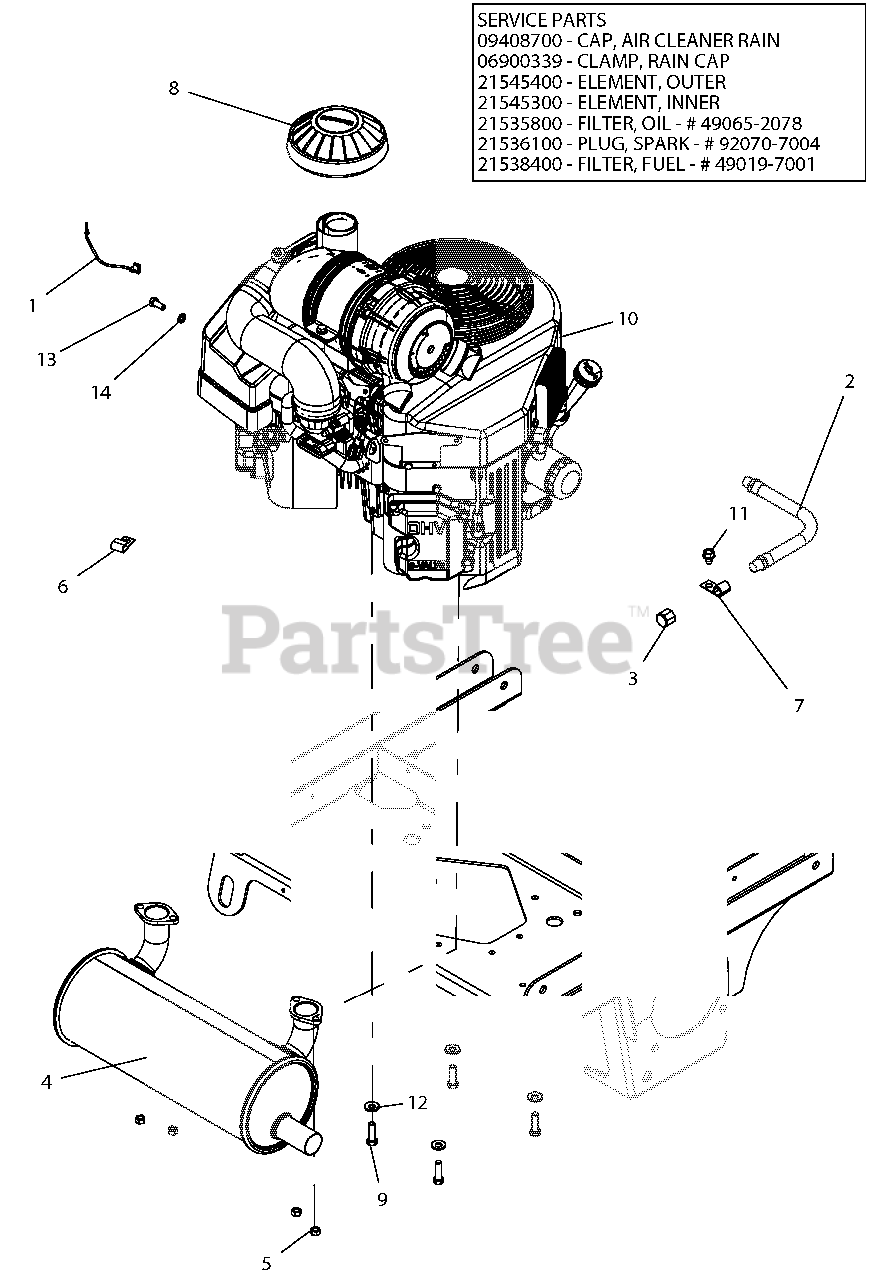

Engine Parts Diagram

  • Title

1

Gravely 03286700

LEAD - STARTER SOLENOID

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 03873100

HOSE, HYD .38-11-0K M6N0-M6N0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 04263000

MUFFLER - 34HP KAWASAKI VERT

$170.99

$

Usually ships in 4-12 days

0

5

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

6

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 8

0

7

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: (2")

$51.99

$

In Stock, only 1 left!

0

9

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

10

Gravely 08200624

ENGINE, KAWASAKI FX921

$

$

Not available

11

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

13

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$

$

Not available

14

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
