992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 030000 - 030999) Deck Lift - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

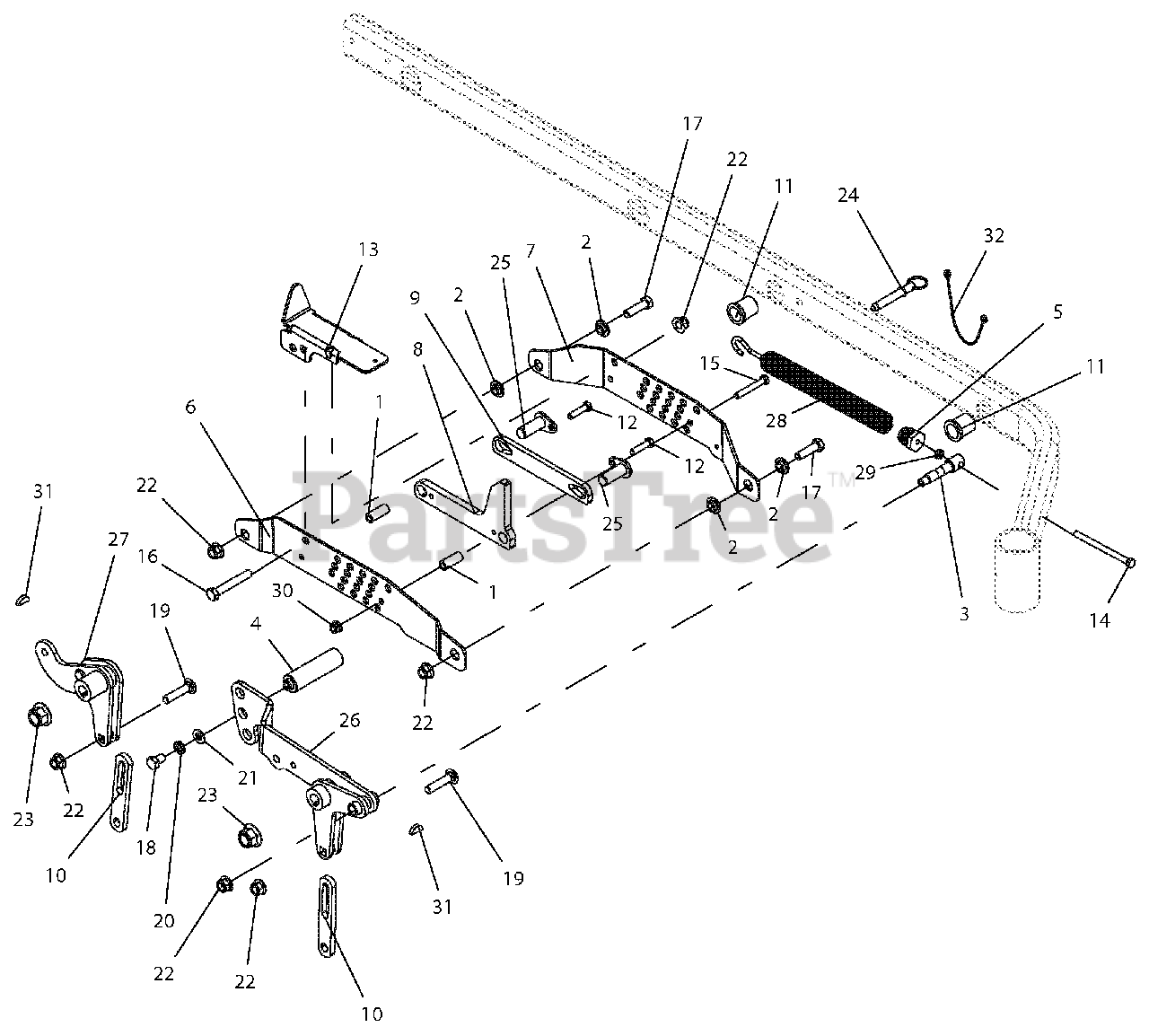

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 03954800

SPACER, .375 X .625 X 1.54

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

3

Gravely 04373200

TRUNION, SPRG

$124.99

$

Usually ships in 4-12 days

0

4

Gravely 04373300

PEDAL, LIFT

$37.99

$

Usually ships in 4-12 days

0

5

Gravely 04374200

PLUG, SPRG

$77.99

$

Usually ships in 4-12 days

0

6

Gravely 04689551

BRKT, RH INBOARD LIFT/CUT HEIGHT-BLACK

$71.99

$

Usually ships in 4-12 days

0

7

Gravely 04689651

BRKT, RH INBOARD LIFT/CUT HEIGHT-BLACK

$83.99

$

In Stock, only 1 left!

0

8

Gravely 04689751

BRKT, HOC STOP-BLACK

$64.99

$

Usually ships in 4-12 days

0

9

Gravely 04726051

BRKT, HOC STOP-BLACK

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

11

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

12

Gravely 05900041

BLT-HEX .38-16X1.50 GR5 YWZC EP30

$

$

Not available

13

Gravely 03864051

WLDMT, MECHANICAL LOCK-UP-BLACK

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901923)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 05971800

BLT-HEX .50-13X.75 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

19

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5 Y
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

20

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

21

Gravely 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 03957100

PIN, .50 X 2.00 USABLE LG BALL
(Superseded to 04822400)

$9.49

$

In Stock, only 2 left!

0

25

Gravely 04375400

WLDMT, PIN

$18.99

$

Usually ships in 4-12 days

0

26

Gravely 04688967

WLDMT, FRONT RH DECK LIFT ARM-BLACK

$168.99

$

Usually ships in 4-12 days

0

27

Gravely 04689067

WLDMT, REAR RH DECK LIFT ARM-BLACK

$116.99

$

Usually ships in 4-12 days

0

28

Gravely 08300530

SPRG, DECK LIFT

$

$

Not available

29

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06608900

KEY, WDRF .25 X 1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

32

Gravely 06900317

LANYARD, 12"

$3.49

$

In Stock, only 2 left!

0
