992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Belt And Idler Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

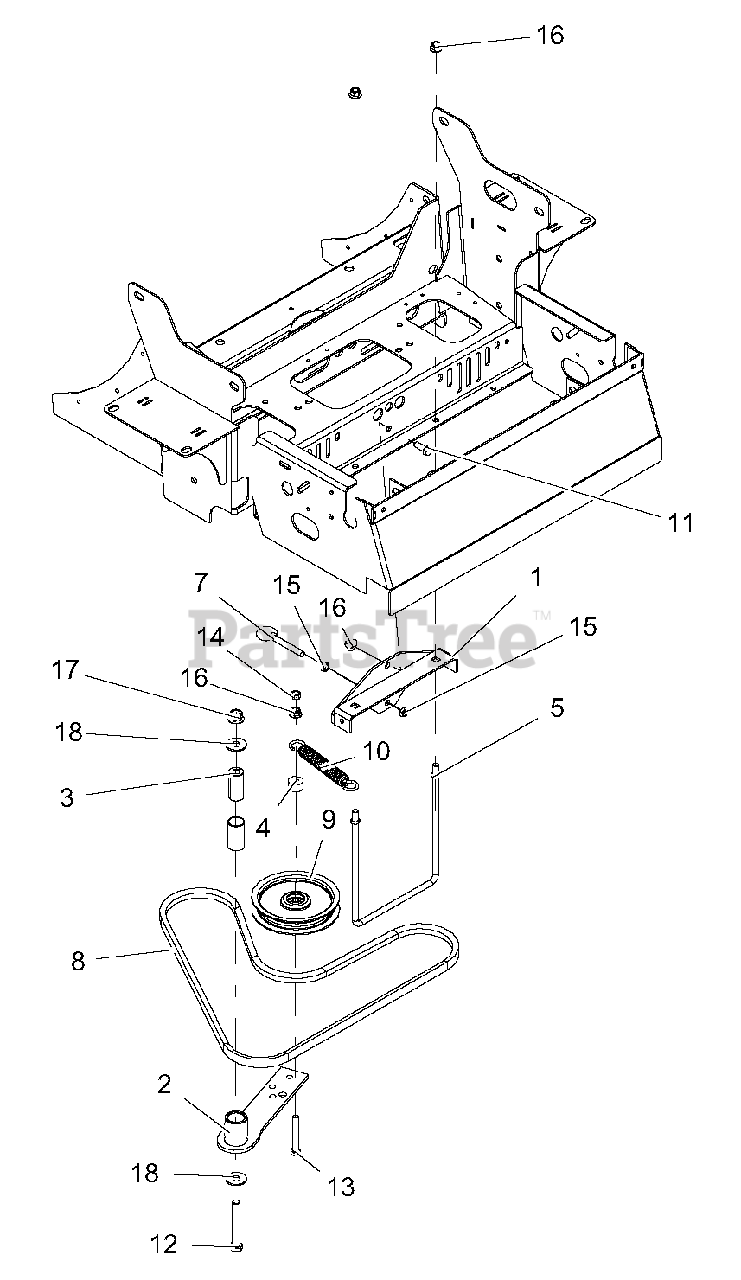

Belt And Idler Parts Diagram

  • Title

1

Gravely 03898551

WMT, SPRING ANCHOR BRKT-BLACK

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE-BLACK
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

3

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

4

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

5

Gravely 03975800

ROD, BRAKE MTG

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 07030000

BOLT, EYE .375-16

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 07200515

BELT, B RAW COGGED

$58.99

$

In Stock, Qty 20+

0

9

Gravely 07300524

IDLER, FLAT 5.00 X 3.8
(Superseded to 07334500)

$80.99

$

In Stock, Qty 12

0

10

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

13

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
