992205 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 031000 - 039999) Deck Lift - Left Hand Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

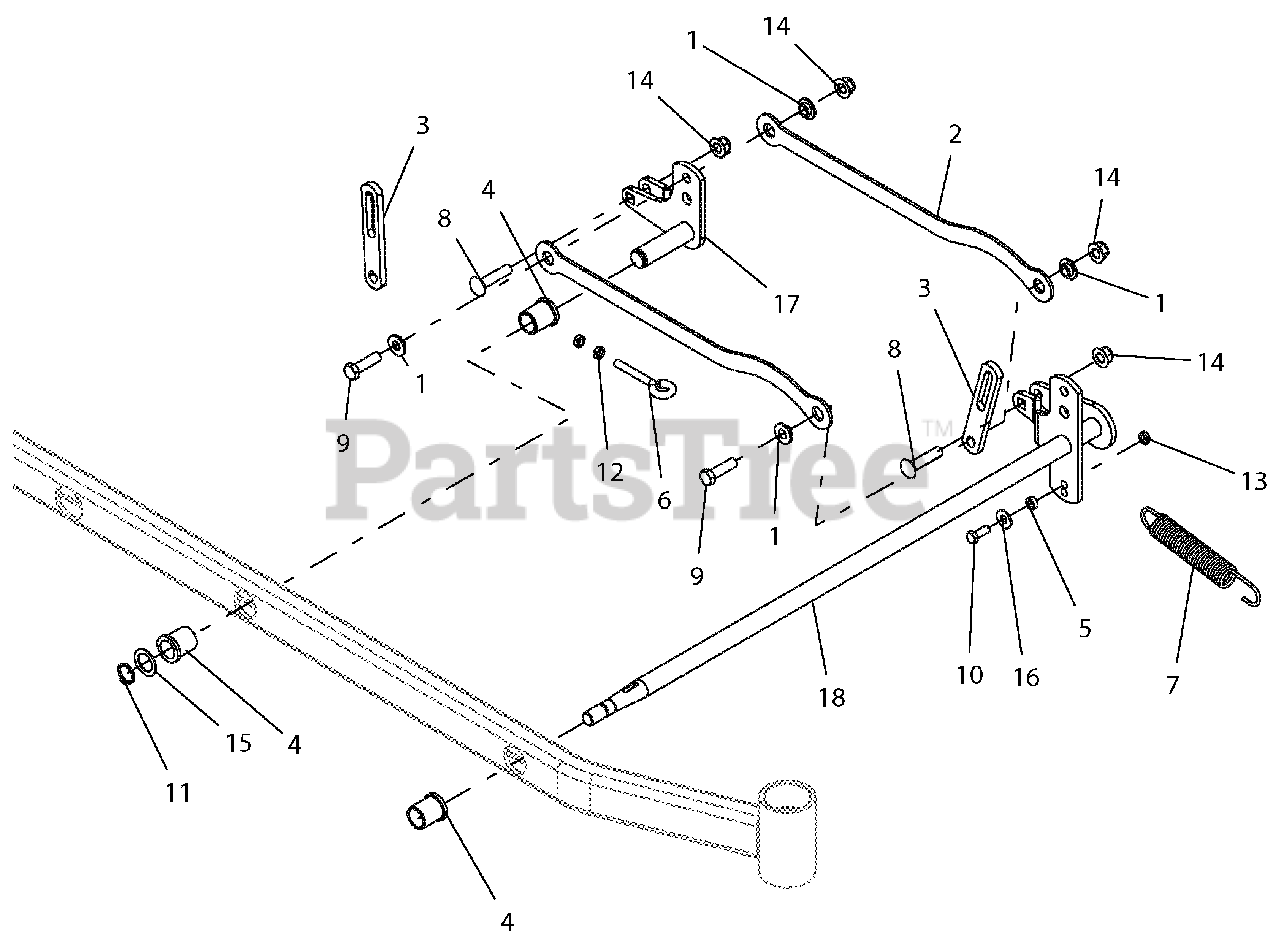

Deck Lift - Left Hand Parts Diagram

  • Title

1

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

2

Gravely 04660351

LINK, LIFT - BLK

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05508900

BSHG, SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

6

Gravely 07030000

BOLT, EYE .375-16

$7.99

$

Usually ships in 4-12 days

0

7

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$33.99

$

In Stock, Qty 6

0

8

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5 Y
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

9

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

12

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062 YWZC
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03858100

WLDMT, LH REAR DECK LIFT

$108.99

$

Usually ships in 4-12 days

0

18

Gravely 04672367

WLDMT, PT200 FRONT LH DECK LIFT ARM-BLACK

$193.99

$

Usually ships in 4-12 days

0
