992204 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 030000 - 030999) Engine - Kohler ECV749 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

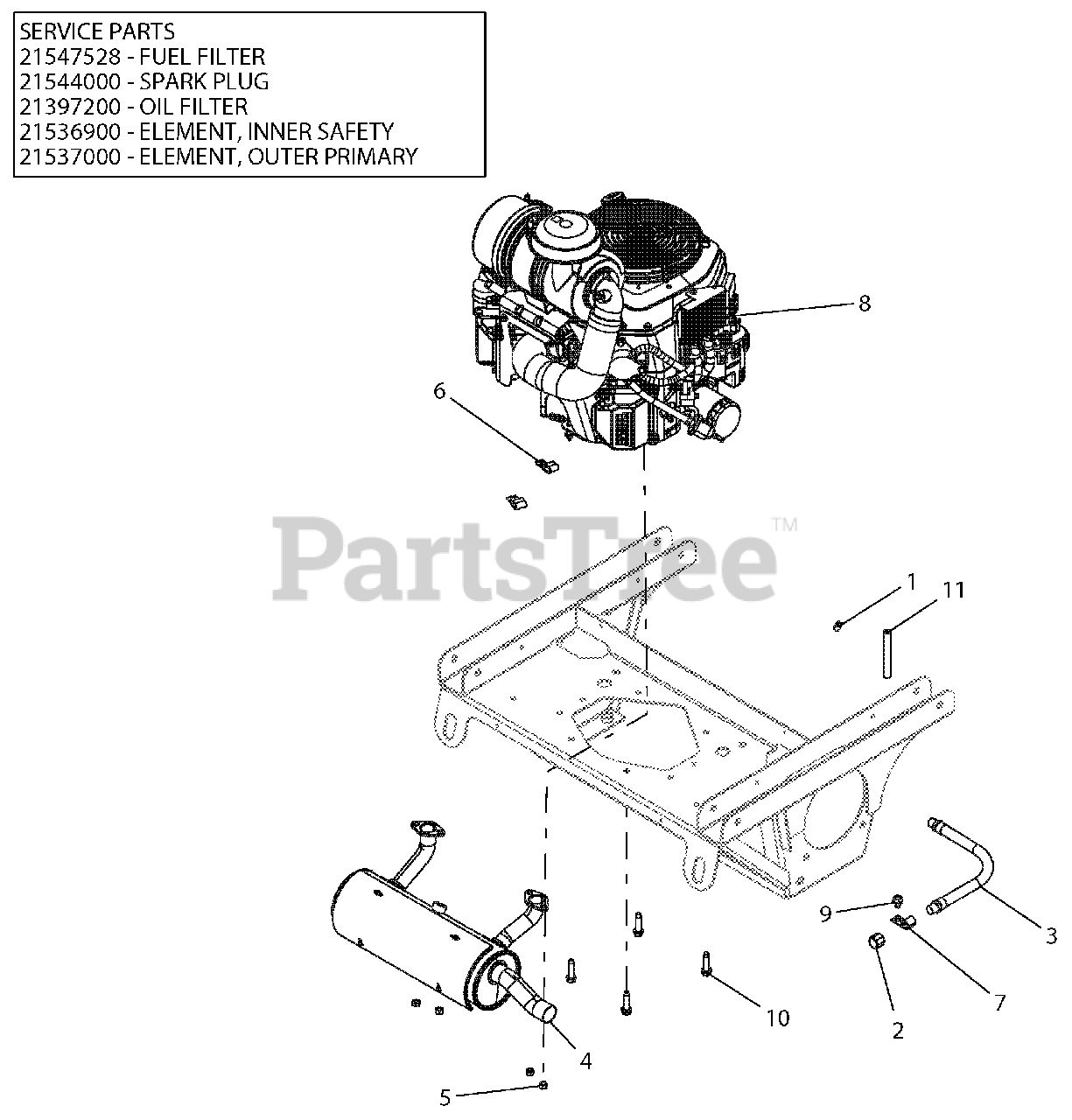

Engine - Kohler ECV749 Parts Diagram

  • Title
1

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 04262200

MUFFLER, KOHLER EFI

$325.99

$

Usually ships in 4-12 days

0

5

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

6

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 5

0

7

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 08200628

ENGINE, KOHLER EFI ECV749

$

$

Not available

9

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 03278100

.25 LOW-PERM GAS HOSE 22.00" LG - VALVE TO KOHLER EFI

$1.49

$

In Stock, Qty 20+

0
