992202 (Pro-Turn 266) - Gravely Pro-Turn 66" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Deck Lift Parts Diagram

Pro-Turn 66" Zero-Turn Mower, Kawasaki

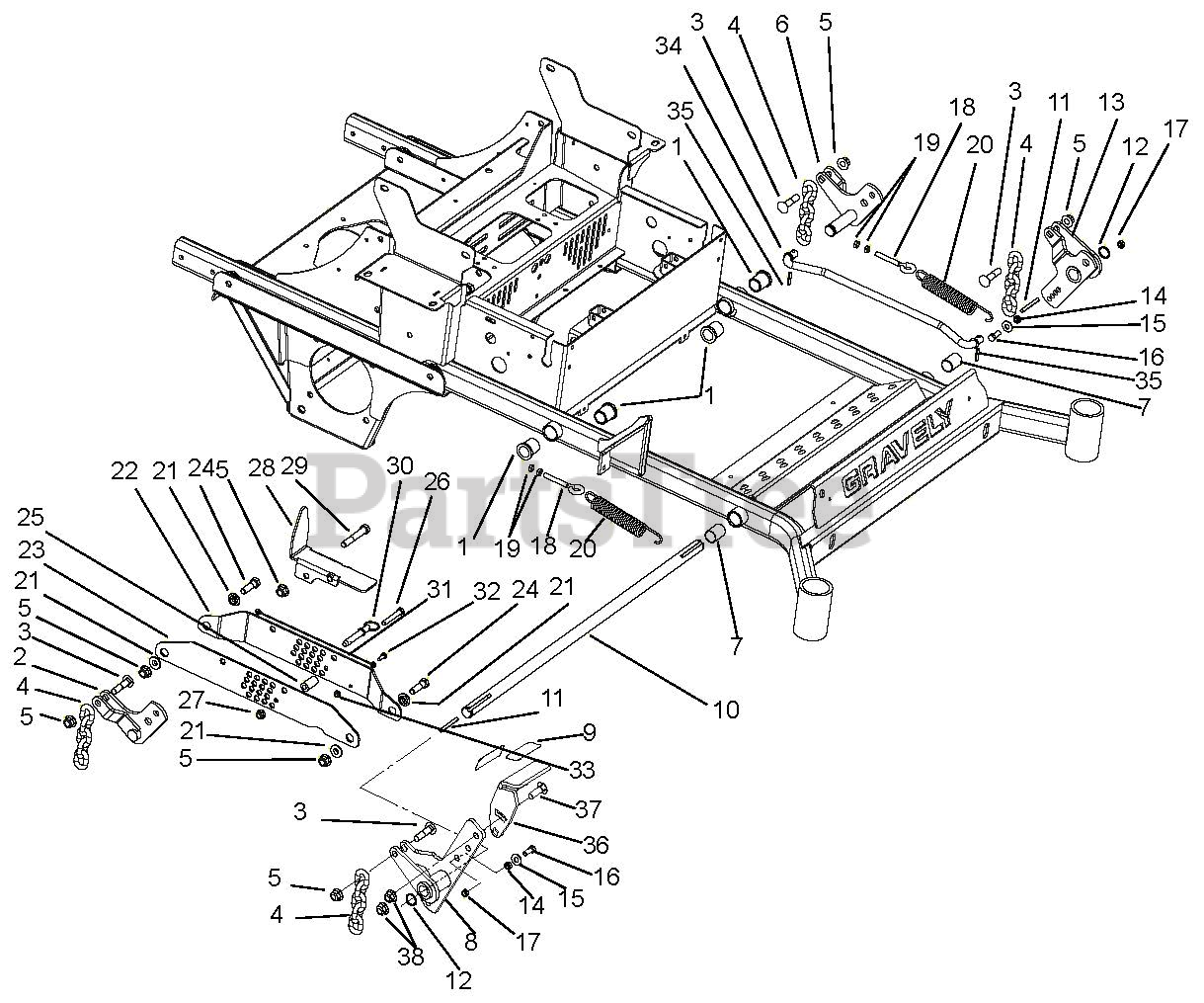

Deck Lift Parts Diagram

  • Title

1

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

2

Gravely 03858000

WMT, RH REAR DECK LIFT

$109.99

$

Usually ships in 4-12 days

0

3

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

4

Gravely 03975600

CHAIN, 5 LINK 3/8 MOWER LIFT

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03858100

WMT, LH REAR DECK LIFT

$108.99

$

Usually ships in 4-12 days

0

7

Gravely 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$6.99

$

In Stock, only 3 left!

0

8

Gravely 04184400

WMT, ADJUSTABLE DECK FOOT LIFT

$153.99

$

Usually ships in 4-12 days

0

9

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0

10

Gravely 03971300

SHAFT, FRONT MOWER LIFT

$179.99

$

Usually ships in 4-12 days

0

11

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$5.99

$

In Stock, only 3 left!

0

12

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

13

Gravely 03857900

WMT, FRONT LH DECK LIFT

$165.99

$

Usually ships in 4-12 days

0

14

Gravely 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

15

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

19

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

21

Gravely 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

22

Gravely 03954751

RH LIFT/CUT HT BRKT-INBRD-BLK

$53.99

$

Usually ships in 4-12 days

0

23

Gravely 03954651

RH LIFT/CUT HT BRKT-OUTBRD-BLK

$45.99

$

Usually ships in 4-12 days

0

24

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 03954800

SPACER, .375 X .625 X 1.54

$6.49

$

Usually ships in 4-12 days

0

26

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 03864051

MECHANICAL LOCK-UP WMT - BLACK

$23.99

$

Usually ships in 4-12 days

0

29

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 03957100

PIN,.50 X 2.00 USABLE LG BALL
(Superseded to 04822400)

$9.49

$

In Stock, only 2 left!

0

31

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

32

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

34

Gravely 04063100

ROD-LIFT ASSIST 19.35"

$68.99

$

In Stock, only 2 left!

0

35

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$2.99

$

Usually ships in 4-12 days

0

36

Gravely 04088651

ADJUSTABLE FOOT LIFT PEDAL-BLK

$56.99

$

Usually ships in 4-12 days

0

37

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

38

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
