992201 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 031000 - 039999) Frame, Bumper, Sub-Frame And Footplate Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

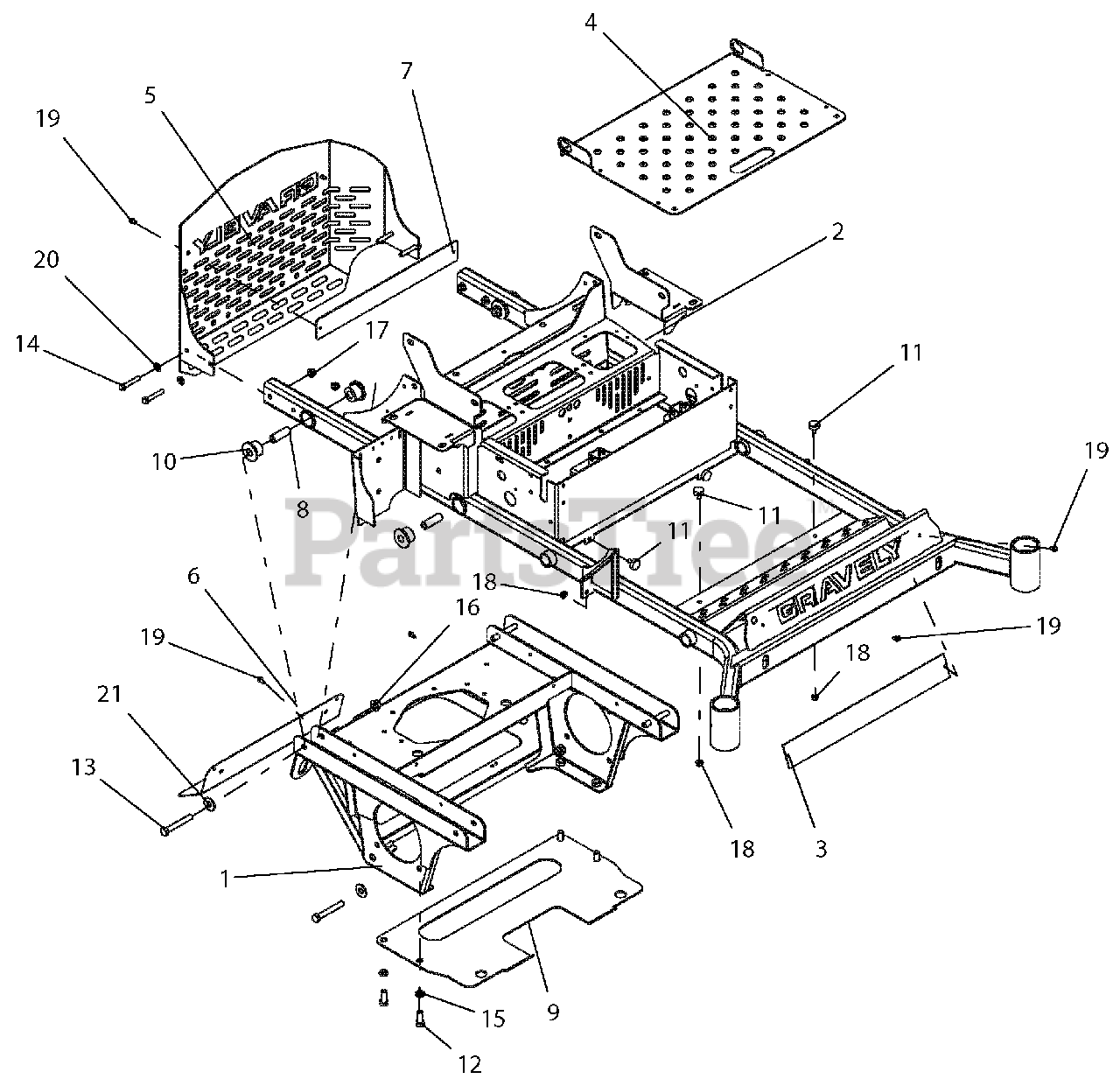

Frame, Bumper, Sub-Frame And Footplate Parts Diagram

  • Title
1

Gravely 03855553

WLDT, 200 PT AXLE/ENGINE FRAME

$607.99

$

Usually ships in 4-12 days

0

2

Gravely 59221400

WLDMT, 52"-66" PT200 MAIN FRAME W/SAFETY DECALS

$

$

Not available

3

Gravely 03828551

PLATE, BUMPER NAME BACKER

$

$

Not available

4

Gravely 03862351

PANEL, INSPECTION

$95.99

$

Usually ships in 4-12 days

0

5

Gravely 59218000

PRO-TURN 200 REAR BUMPER W/ SAFETY DECALS

$245.99

$

Usually ships in 4-12 days

0

6

Gravely 03948151

SHIELD, MUFFLER HEAT

$72.99

$

In Stock, only 1 left!

0

7

Gravely 03948251

PLATE, BUMPER PRO-TURN 200-BLACK

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 03985600

SPCR, .50 X .75 X 2.23 YZ

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 04524553

PLATE-TRANSMISSION SKID-RED

$74.99

$

Usually ships in 4-12 days

0

10

Gravely 05500924

BSHG, FLG .75 X 1.51 X 2.00 X .18

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

13

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

14

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

16

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
