992201 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Belt Covers Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

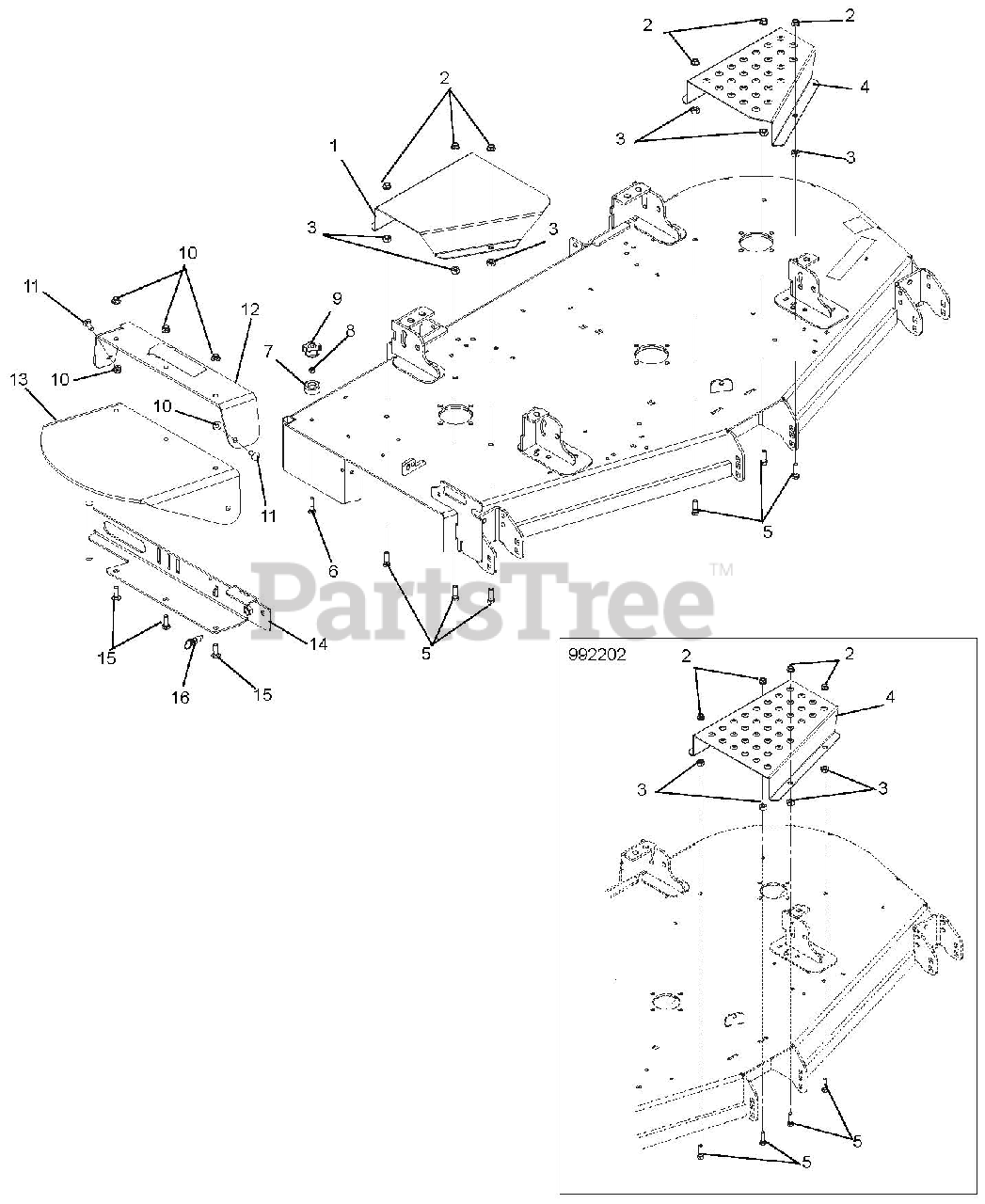

Belt Covers Parts Diagram

  • Title

1

Gravely 03982251

Guard, Right Hand Deck Belt,60-66

Note: (992201 – 204)

$60.99

$

Usually ships in 4-12 days

0

1

Gravely 03982151

Guard, Right Hand Deck Belt, 52

Note: (992200, 205)

$49.99

$

Usually ships in 4-12 days

0

2

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

Note: (992200, 201, 203, 204, 205)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

Note: (992202)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

Note: (992200, 201, 203, 204, 205)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

Note: (992202)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03977251

Guard, Left Hand Deck Belt, 60

Note: (992201, 203, 204)

$71.99

$

In Stock, only 2 left!

0

4

Gravely 03977351

Guard, Left Hand Deck Belt, 66

Note: (992202)

$

$

Not available

4

Gravely 03977151

Guard, Left Hand Deck Belt, 52

Note: (992200, 205)

$90.99

$

In Stock, only 1 left!

0

5

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

Note: (992200, 201, 203, 204, 205)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

Note: (992202)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07500009

Bumper

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07534800

Knob, Clamping, .312-18 Nyloc

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

12

Gravely 00472353

Support, Rubber Discharge Chute

$110.99

$

Usually ships in 4-12 days

0

13

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

14

Gravely 00472653

Discharge Chute Mounting Weldment
(Superseded to 00980653)

Note: (992202)

$165.99

$

In Stock, only 1 left!

0

14

Gravely 00472553

Discharge Chute Mounting Weldment
(Superseded to 04727953)

Note: (992200, 201, 203, 204, 205)

$129.99

$

In Stock, only 2 left!

0

15

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

16

Gravely 07000037

Pull Pin, .50-13 Thread x .310 Diameter Plunger

$10.99

$

In Stock, only 1 left!

0

17

Gravely 07001625

Bolt, Hex .38-16 x 1.25 Captive

Note: Not Shown

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 06800028

Rivet, Pop .187 (IFI 114 Gr. 30)
(Superseded to 06800140)

Note: Not Shown

$0.99

$

In Stock, Qty 16

0

19

Gravely 07001634

Bolt, Hex .38-16 x 1.25 Cap .37

Note: Not Shown

$

$

Not available

20

Gravely 04392553

Cover-Discharge 52" CE

Note: Not Shown

$

$

Not available

21

Gravely 06200007

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200237)

Note: Not Shown

$2.49

$

In Stock, only 3 left!

0

22

Gravely 06545400

Nut, Locking Nylon Flange .31-18
(Superseded to 06500809)

Note: Not Shown

$1.49

$

In Stock, Qty 20+

0
