992200 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 030000 - 030999) Fuel System - Non-CARB Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

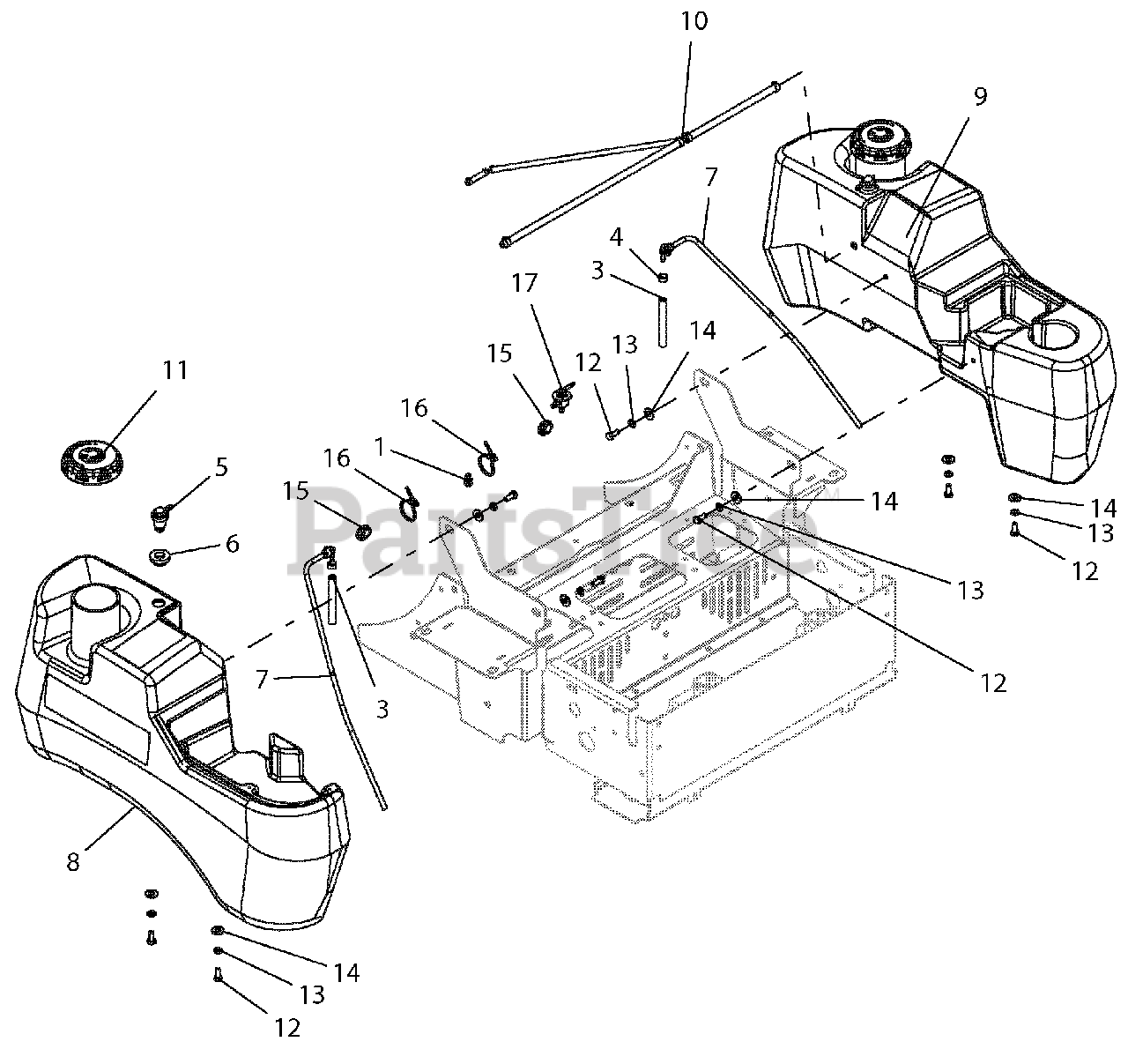

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 00367900

CLIP, ROUTING (.50 ID)

Note: (.50 ID)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03278100

.25 LOW-PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

6

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

7

Gravely 04320800

ASM, LARGE TANK FUEL PICKUP

$34.99

$

In Stock, only 2 left!

0

8

Gravely 04340800

TANK, RH LARGE GRAVELY FUEL
(Superseded to 04341200)

$

$

Not available

9

Gravely 04340900

TANK, LH LARGE GRAVELY FUEL
(Superseded to 04341300)

$230.99

$

Usually ships in 4-12 days

0

10

Gravely 04458300

PT400, FUEL LINE ASSEMBLY

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

12

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07500031

GROMMET, RUBBER

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 09233600

VALVE, FUEL
(Superseded to 09164400)

$53.99

$

In Stock, only 1 left!

0
