992197 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB (SN: 022000 & Above) Frame, Engine And Subframe Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB

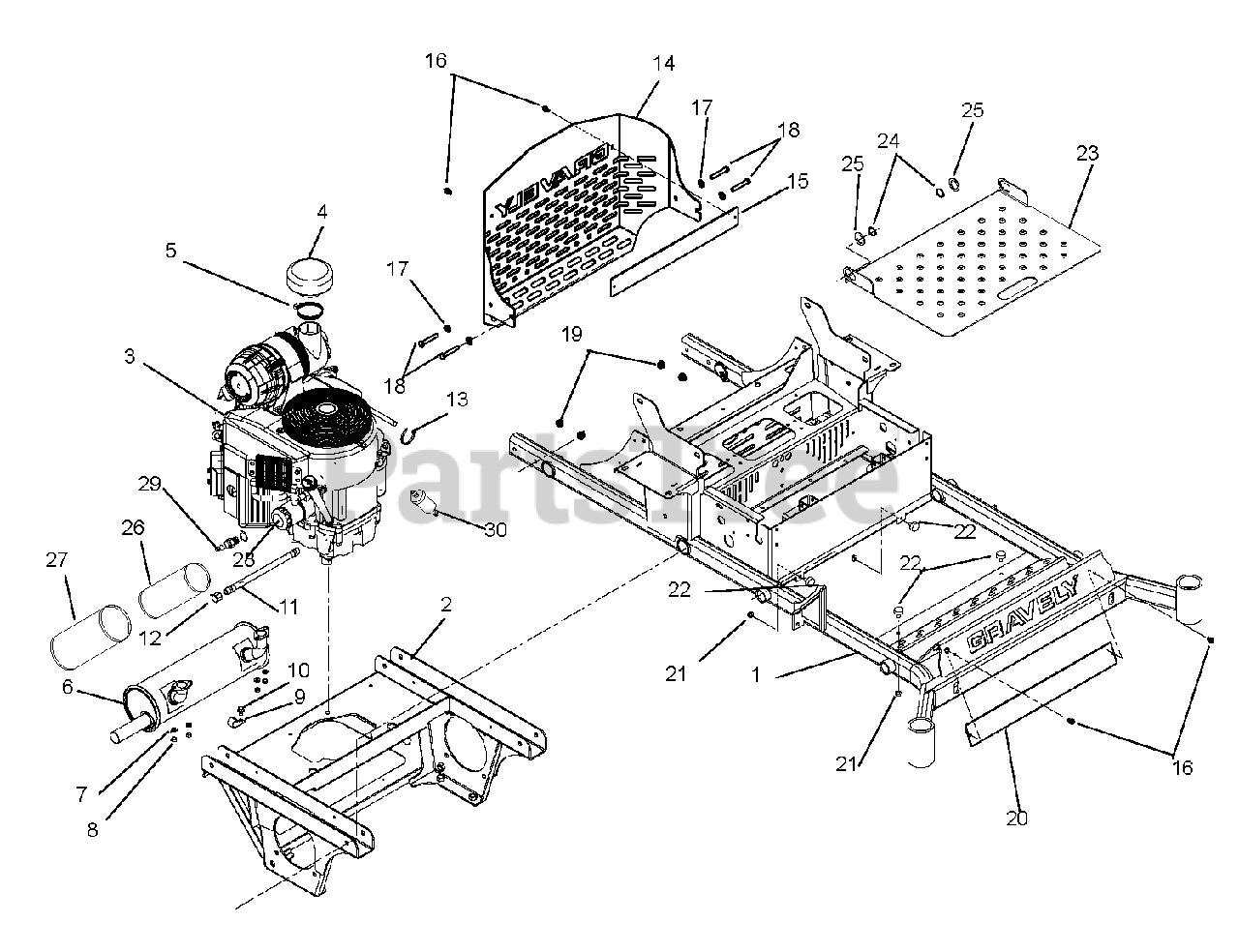

Frame, Engine And Subframe Parts Diagram

  • Title

1

Gravely 03879953

Weldment, 52" – 66" 200PT Main Frame

$

$

Not available

2

Gravely 03855553

Weldment, 200PT Axle/Engine Frame

$607.99

$

Usually ships in 4-12 days

0

3

Gravely 08200723

Engine, Kawasaki 27HP (992201, 198)

Note: (992201, 198)

$

$

Not available

Gravely 08200722

Engine, Kawasaki FX730 (26HP) (992200, 197)

Note: (26HP) (992200, 197)

$

$

Not available

Gravely 08200724

Engine, Kawasaki FX850 (31HP) (992203)

Note: (31HP) (992203)

$

$

Not available

Gravely 08200628

Engine, Kohler 747cc EFI (992204, 205)

Note: (992204, 205)

$

$

Not available

4

Gravely 09408700

Rain Cap, Air Cleaner (992201, 203, 197, 198)

Note: (992201, 203, 197, 198)

$51.99

$

In Stock, only 1 left!

0

5

Gravely 06900339

Clamp, Hose 2.75 DIA Worm (992201, 203, 197, 198)

Note: (992201, 203, 197, 198)

$

$

Not available

6

Gravely 03911000

Muffler, 27 – 31 Kawasaki (992201, 203, 198)
(Superseded to 09386000)

Note: (992201, 203, 198)

$168.99

$

In Stock, only 1 left!

0

Gravely 03989000

Muffler, Kawasaki 24/26HP (992200, 197)

Note: (992200, 197)

$168.99

$

In Stock, only 1 left!

0

Gravely 04262200

Muffler, Kohler EFI (992204, 205)

Note: (992204, 205)

$325.99

$

Usually ships in 4-12 days

0

7

Gravely 06308600

Washer, Lock .31 x .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500018

Nut, Locking Top M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

9

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 07412900

Screw, Tap .38-16 x .50 Hex Washer Head TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03873100

Hose, Hydraulic .38-11-0K M6N0-M6N0 (992201, 203, 198)
(Superseded to 07001829)

Note: (992201, 203, 198)

$18.99

$

Usually ships in 4-12 days

0

Gravely 04058500

Hose, Hydraulic .38-14-0K M6N0-M6N0 (992200, 204, 205, 197)
(Superseded to 05155100)

Note: (992200, 204, 205, 197)

$20.99

$

In Stock, only 1 left!

0

12

Gravely 03873200

Pipe Cap 3/8 NPT Female

$12.99

$

Usually ships in 4-12 days

0

13

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

14

Gravely 03889053

Weldment, Bumper, Pro-Turn 200

$199.99

$

Usually ships in 4-12 days

0

15

Gravely 03948251

Plate, Bumper, Pro-Turn 200

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 07400034

Screw, Tap Hex Washer Head .25-20 x .50 TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

Nut, Locking Nyloc Flange .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03828551

Plate, Bumper Name Backer

$

$

Not available

21

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

23

Gravely 03862351

Inspection Panel

$95.99

$

Usually ships in 4-12 days

0

24

Gravely 05707300

Ring, Retaining, External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

25

Gravely 06436300

Washer, Flat Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 21545300

Element, Inner Safety

$48.99

$

In Stock, Qty 13

0

27

Gravely 21545400

Element, Outer Primary

$36.99

$

In Stock, Qty 20+

0

28

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

29

Gravely 21536100

Spark Plug

$3.49

$

In Stock, Qty 11

0

30

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$

$

Not available
