992196 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 & Above) Deck, Rollers And Belt Covers Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

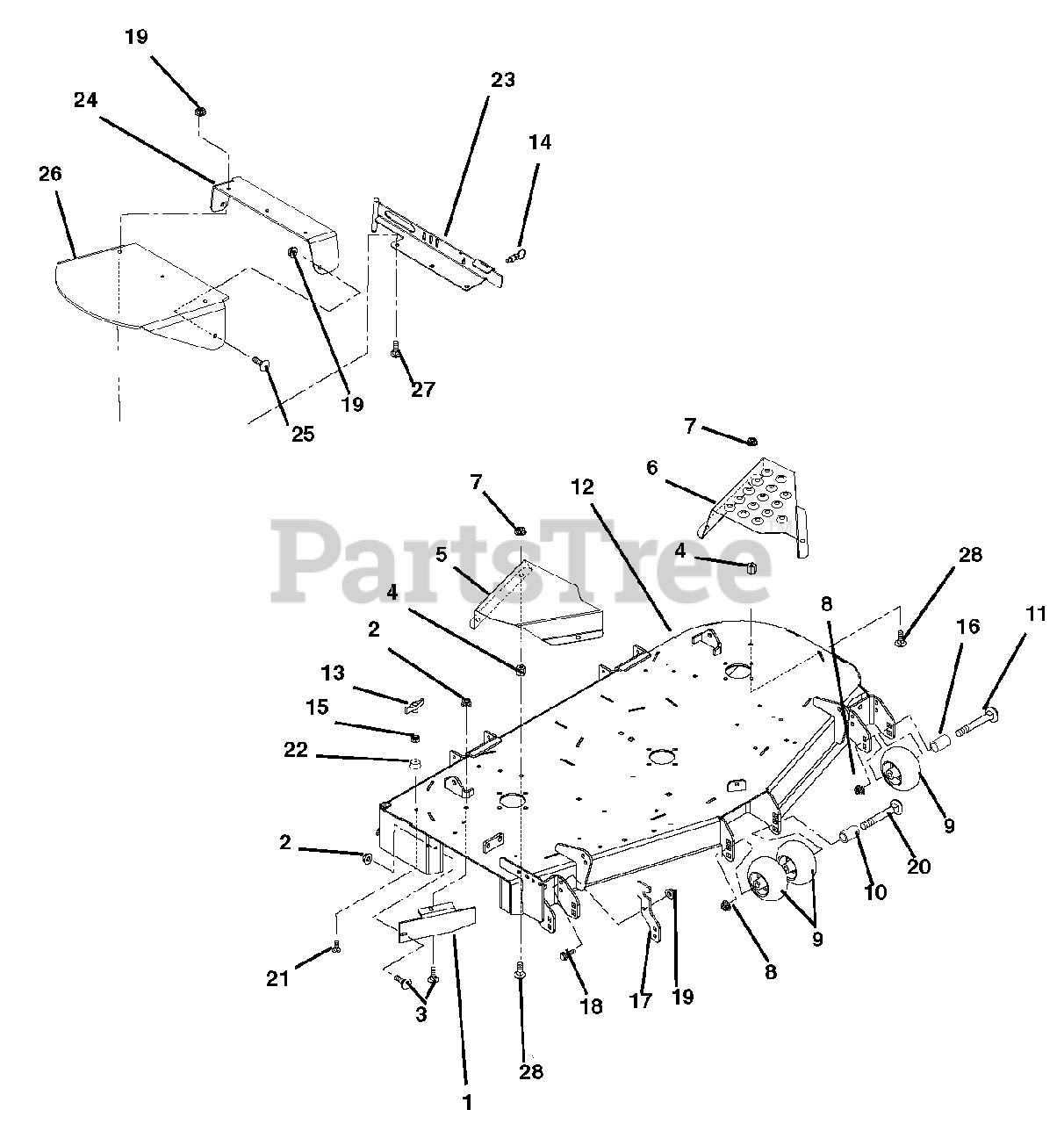

Deck, Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 00374153

60-in. Discharge Baffle (195)

Note: (195)

$28.99

$

In Stock, only 1 left!

0

Gravely 00442453

72-in. Discharge Baffle (196)

Note: (196)

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03982251

60/66-in. Right Hand Spindle Guard (195)

Note: (195)

$60.99

$

Usually ships in 4-12 days

0

Gravely 04051451

72-in. Right Hand Spindle Guard (196)

Note: (196)

$77.99

$

Usually ships in 4-12 days

0

6

Gravely 03977251

60-in. Left Hand Spindle Guard (195)

Note: (195)

$71.99

$

In Stock, only 2 left!

0

Gravely 04051351

72-in. Left Hand Spindle Guard(196)
(Superseded to 59228800)

Note: (196)

$

$

Not available

7

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03905900

Anti-Scalp Wheel

$11.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

Spacer

$21.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 03996653

60-in. Mower Deck (195)
(Superseded to 59224200)

Note: (195)

$1318.99

$

Usually ships in 4-12 days

0

Gravely 03996853

72-in. Mower Deck (196)

Note: (196)

$1289.99

$

Usually ships in 4-12 days

0

13

Gravely 07534800

Knob, Clamping, .312-18 Nyloc

$3.49

$

In Stock, Qty 20+

0

14

Gravely 07000037

Pin, Pull Plunger .50-13 Thread x .310

$10.99

$

In Stock, only 1 left!

0

15

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

17

Gravely 00474753

Chute, Storage Bracket

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

21

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

22

Gravely 07500009

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 00472553

60-inch Discharge Chute Mounting Weldment (195)
(Superseded to 04727953)

Note: (195)

$129.99

$

In Stock, only 2 left!

0

Gravely 00472653

72-inch Discharge Chute Mounting Weldment (196)
(Superseded to 00980653)

Note: (196)

$165.99

$

In Stock, only 1 left!

0

24

Gravely 00472353

Rubber Discharge Chute Support

$110.99

$

Usually ships in 4-12 days

0

25

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

26

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

27

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0
