992194 (PM 260H XDZ LPG) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki Propane (SN: 000101 & Above) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki Propane

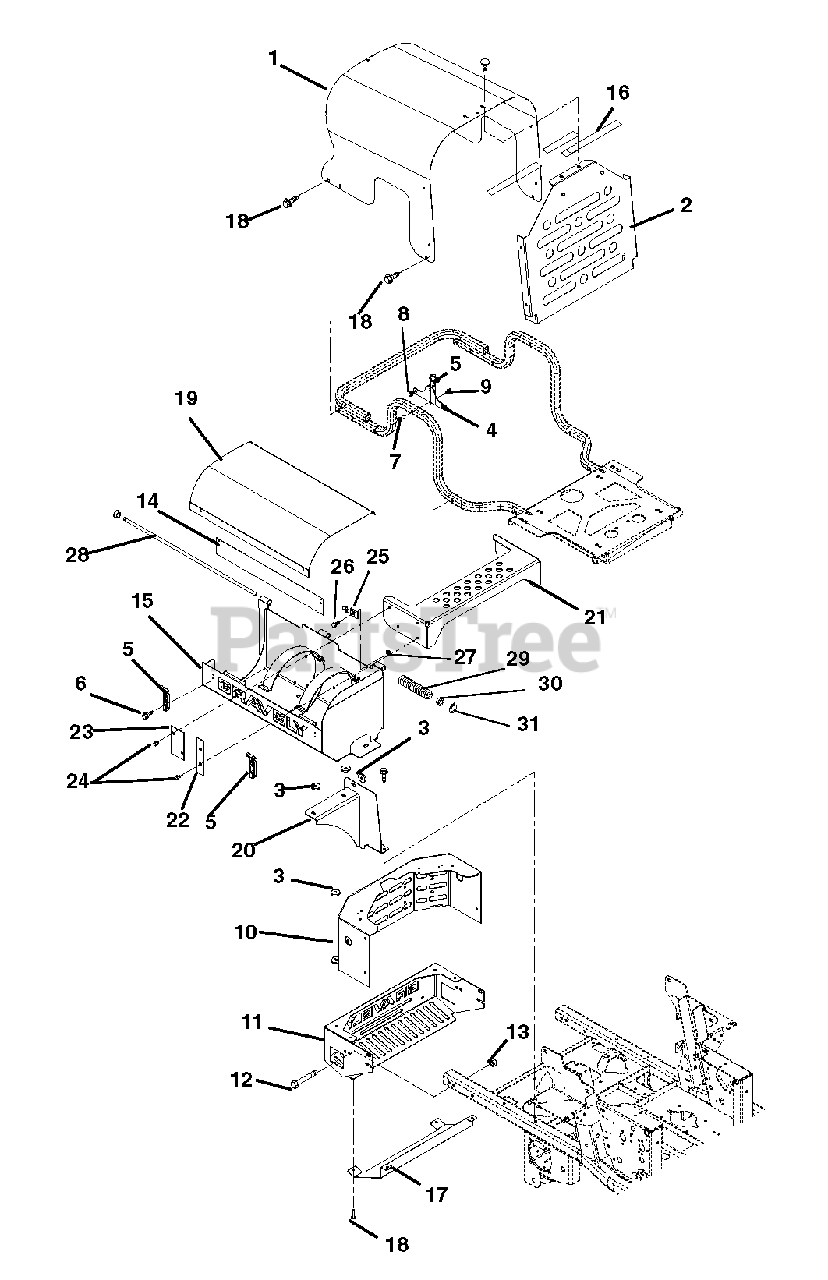

Hood And Bumper Parts Diagram

  • Title

1

Gravely 04046853

Hood, 200 XDZ LPG

$

$

Not available

2

Gravely 00975851

Shroud, Hood

$

$

Not available

3

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 00975153

Bracket, Latch Stop

$

$

Not available

5

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

6

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06118200

Screw, Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07533600

Button Bumper

$11.99

$

In Stock, only 1 left!

0

9

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00974253

Guard, Rear Engine 200 XDZ LPG

$

$

Not available

11

Gravely 00974153

Bumper, Rear

$

$

Not available

12

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00975353

Plate, Name Backer LPG

$

$

Not available

15

Gravely 00974851

Weldment, Tank Housing RH

$

$

Not available

Gravely 00974751

Weldment, Tank Housing LH

$

$

Not available

16

Gravely 00932300

VHB Tape 4941F

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 00462251

Heat Shield

$103.99

$

Usually ships in 4-12 days

0

18

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head Thread Rolling YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00975053

Weldment, Cover Tank RH LPG

$

$

Not available

Gravely 00974953

Weldment, Cover Tank LH LPG

$

$

Not available

20

Gravely 00974551

Weldment, RH Tank Support

$

$

Not available

Gravely 00974451

Weldment, LH Tank Support

$

$

Not available

21

Gravely 00976051

Weldment, Tank Support

$

$

Not available

22

Gravely 00976151

Plate, LPG Tank Support Backer

$

$

Not available

23

Gravely 00976251

Plate, LPG Tank Support Backer

$

$

Not available

24

Gravely 06224100

Bolt, Round Head Square neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 07000026

Thumb Latch

$9.49

$

In Stock, only 2 left!

0

26

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 00975400

Rod, Tank Cover Hinge LPG

$

$

Not available

29

Gravely 08300438

Spring, Compression .06 ID x 9.5

$

$

Not available

30

Gravely 05521100

Bushing-Flange

$2.49

$

In Stock, only 3 left!

0

31

Gravely 05717100

Ring, Retaining-External .500 x .050

$2.49

$

In Stock, Qty 8

0
