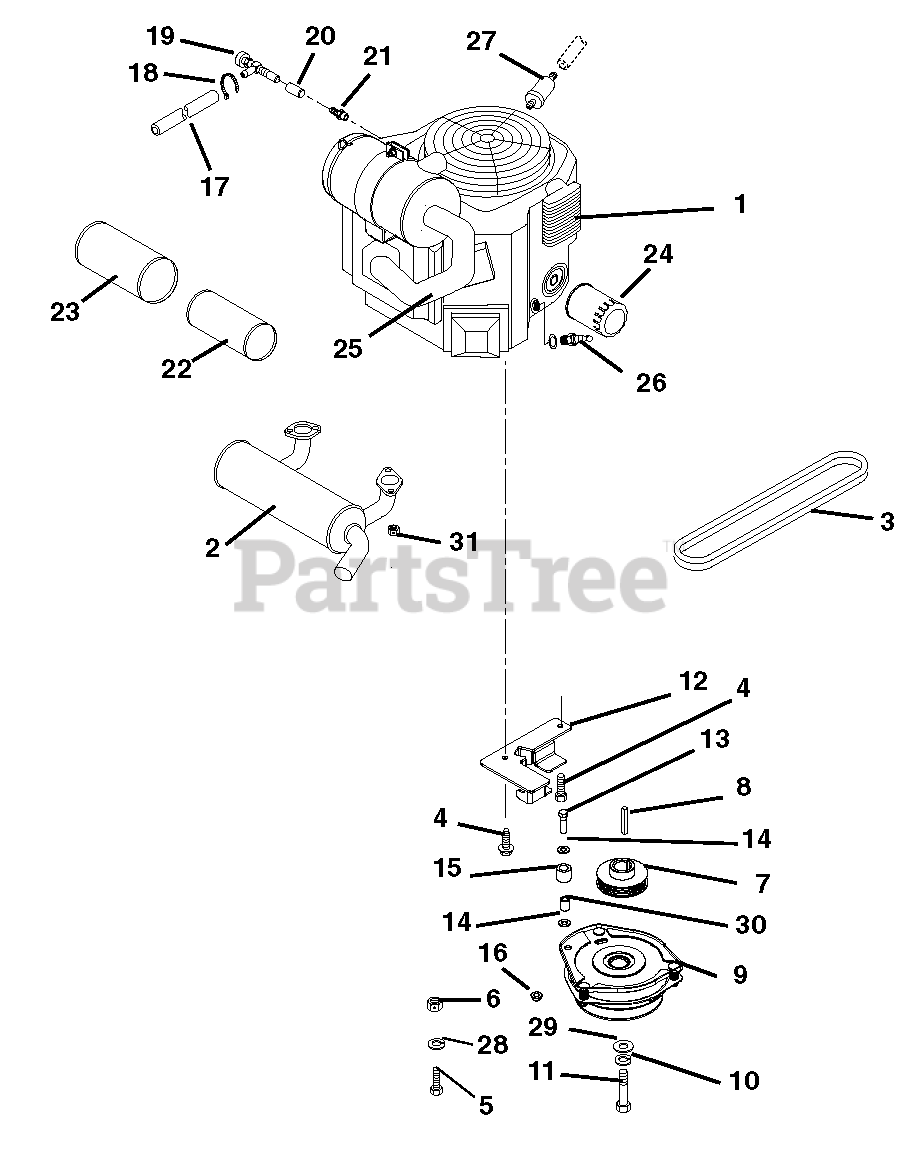

992191 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08268100

Engine, Kohler (CV740S) (190)

Note: (CV740S) (190)

$

$

Not available

Gravely 08200327

Engine, Kawasaki (FX751V) (188, 189, 191)

Note: (FX751V) (188, 189, 191)

$

$

Not available

Gravely 08200328

Engine, Kawasaki (FX850V) (192, 193)

Note: (FX850V) (192, 193)

$

$

Not available

2

Gravely 01057000

Muffler, Kawasaki Vertical (188, 189, 191, 192, 193)

Note: (188, 189, 191, 192, 193)

$252.99

$

Usually ships in 4-12 days

0

Gravely 00470400

Muffler, Kohler Twin (190)

Note: (190)

$198.99

$

In Stock, only 1 left!

0

3

Gravely 07242000

Belt, Poly-V

$53.99

$

In Stock, Qty 20+

0

4

Gravely 07417400

Screw, Tapping Hex Washer Head .38-16 x 1.50 (190)
(Superseded to 07400203)

Note: (190)

$3.99

$

Usually ships in 4-12 days

0

Gravely 05900125

Bolt, Hex .38-16 x 1.25 FTH G5 EP30 (188, 189, 191, 192, 193)
(Superseded to 05901507)

Note: (188, 189, 191, 192, 193)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5 (190)
(Superseded to 05901804)

Note: (190)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18 (190)
(Superseded to 06500904)

Note: (190)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300041

Sheave, Poly V 1.127 x 3.275

$93.99

$

In Stock, only 1 left!

0

8

Gravely 06600003

Key, Square .25 x 3.50 x .25 SA

$4.99

$

In Stock, Qty 7

0

9

Gravely 00447100

Clutch, Electric

$685.99

$

In Stock, only 1 left!

0

10

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

11

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade 5 YZ EP80 (190)

Note: (190)

$6.99

$

In Stock, only 1 left!

0

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 YZ EP80 (188, 189, 191, 192, 193)
(Superseded to 05902004)

Note: (188, 189, 191, 192, 193)

$5.99

$

In Stock, Qty 5

0

12

Gravely 00662251

Anchor, Clutch

$82.99

$

Usually ships in 4-12 days

0

13

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

14

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

16

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

Gas Line, Bulk .25 I.D.

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

19

Gravely 00429000

Drain, 1/2" Drain

$39.99

$

In Stock, only 1 left!

0

20

Gravely 07052200

Adapter, .38 NPTF (190)

Note: (190)

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 07024900

Nipple, Pipe .375-18 NPTF x 3.00 (190)

Note: (190)

$

$

Not available

22

Gravely 21545300

Element, Inner Safety (188, 189, 191, 192, 193)

Note: (188, 189, 191, 192, 193)

$48.99

$

In Stock, Qty 13

0

Gravely 21536900

Element, Inner Safety (190)

Note: (190)

$28.99

$

In Stock, only 1 left!

0

23

Gravely 21545400

Element, Outer Primary (188, 189, 191, 192, 193)

Note: (188, 189, 191, 192, 193)

$36.99

$

In Stock, Qty 20+

0

Gravely 21537000

Element, Outer Primary (190)

Note: (190)

$28.99

$

In Stock, Qty 13

0

24

Gravely 21535800

Oil Filter (188, 189, 191, 192, 193)
(Superseded to 49065-0724)

Note: (188, 189, 191, 192, 193)

$18.99

$

In Stock, Qty 20+

0

Gravely 21397200

Oil Filter (190)
(Superseded to 20715100)

Note: (190)

$18.99

$

In Stock, only 4 left!

0

25

Gravely 21536800

Hose, Air Intake (190)

Note: (190)

$25.99

$

Usually ships in 4-12 days

0

26

Gravely 21536100

Spark Plug (188, 189, 191, 192, 193)

Note: (188, 189, 191, 192, 193)

$3.49

$

In Stock, Qty 11

0

Gravely 21544000

Spark Plug (190)

Note: (190)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 21538400

Fuel Filter (188, 189, 191, 192, 193)
(Superseded to 21573800)

Note: (188, 189, 191, 192, 193)

$

$

Not available

Gravely 21539500

Fuel Filter (190)

Note: (190)

$12.99

$

In Stock, Qty 20+

0

28

Gravely 06307200

Washer, Locking-EXT.326 x .599 x .031 (190)
(Superseded to 06300125)

Note: (190)

$0.99

$

Usually ships in 4-12 days

0

29

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

30

Gravely 08905500

Bushing, .407 x .625 x .813

$13.99

$

In Stock, only 1 left!

0

31

Gravely 06500018

Nut, Locking, Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0
