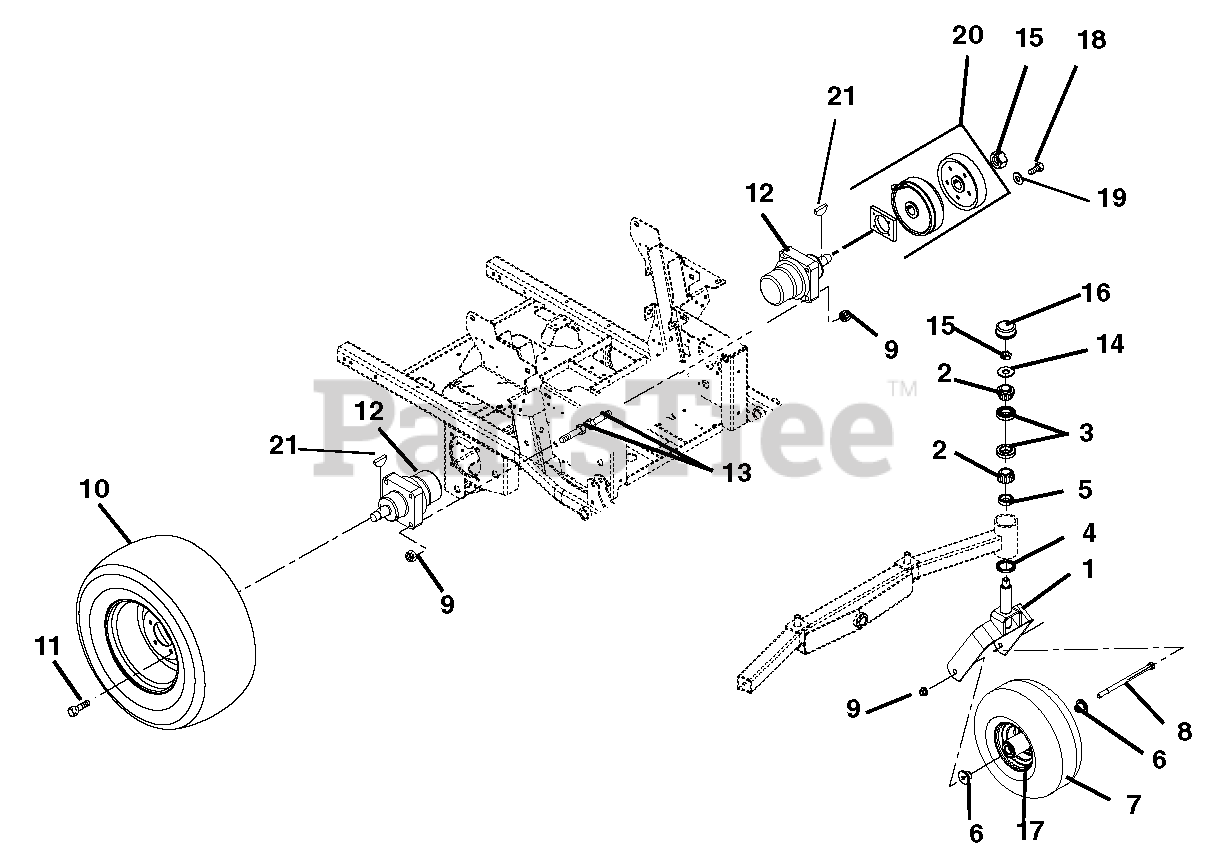

992190 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Kohler (SN: 000101 & Above) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kohler

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title
1

Gravely 03758753

Fork, Front

$165.99

$

In Stock, only 3 left!

0

2

Gravely 05404700

Bearing, Cone

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05404600

Bearing, Cup 1.98 x .420

$13.99

$

In Stock, only 2 left!

0

4

Gravely 05600432

Bearing Seal 1.5 x 2 x .18

$11.99

$

In Stock, Qty 13

0

5

Gravely 03760300

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 00675300

Spacer, Wheel

$7.99

$

In Stock, Qty 20+

0

7

Gravely 07100212

Wheel/Tire Assembly
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

Gravely 07100213

Tire, 15 x 6.00-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

8

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07100207

Tire/Wheel Assembly, 24 x 11.50-12
(Superseded to 07101040)

$273.99

$

Usually ships in 4-12 days

0

Gravely 07100208

Tire, 24 x 11.50-12
(Superseded to 07101041)

$227.99

$

Usually ships in 4-12 days

0

11

Gravely 07000143

Bolt, Lug .50-20 x 1.38

$3.49

$

In Stock, Qty 9

0

12

Gravely 09263100

Wheel Motor, Parker

$943.99

$

Usually ships in 4-12 days

0

13

Gravely 07067200

Bolt, Wheel Motor .50-13 x 2.75

$17.99

$

In Stock, only 3 left!

0

14

Gravely 06439800

Washer, Flat Steel, .812 x 2.00 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

15

Gravely 06541900

Nut, Locking-Jam-Patch 1.00-20

$30.99

$

In Stock, only 1 left!

0

16

Gravely 03925900

Cap, Dust

$11.99

$

In Stock, only 2 left!

0

17

Gravely 05435700

Bearing, 25mm I.D. x 52mm OD x 15mm

$22.99

$

In Stock, Qty 19

0

18

Gravely 05981600

Bolt, Hex .31-18 x 1.5 Grade 5

$3.49

$

In Stock, Qty 6

0

19

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 58904300

Kit, Parking Brake Service

$555.99

$

Usually ships in 4-12 days

0

21

Gravely 06607800

Key, Woodruff .31 x 1.00

$3.99

$

Usually ships in 4-12 days

0
