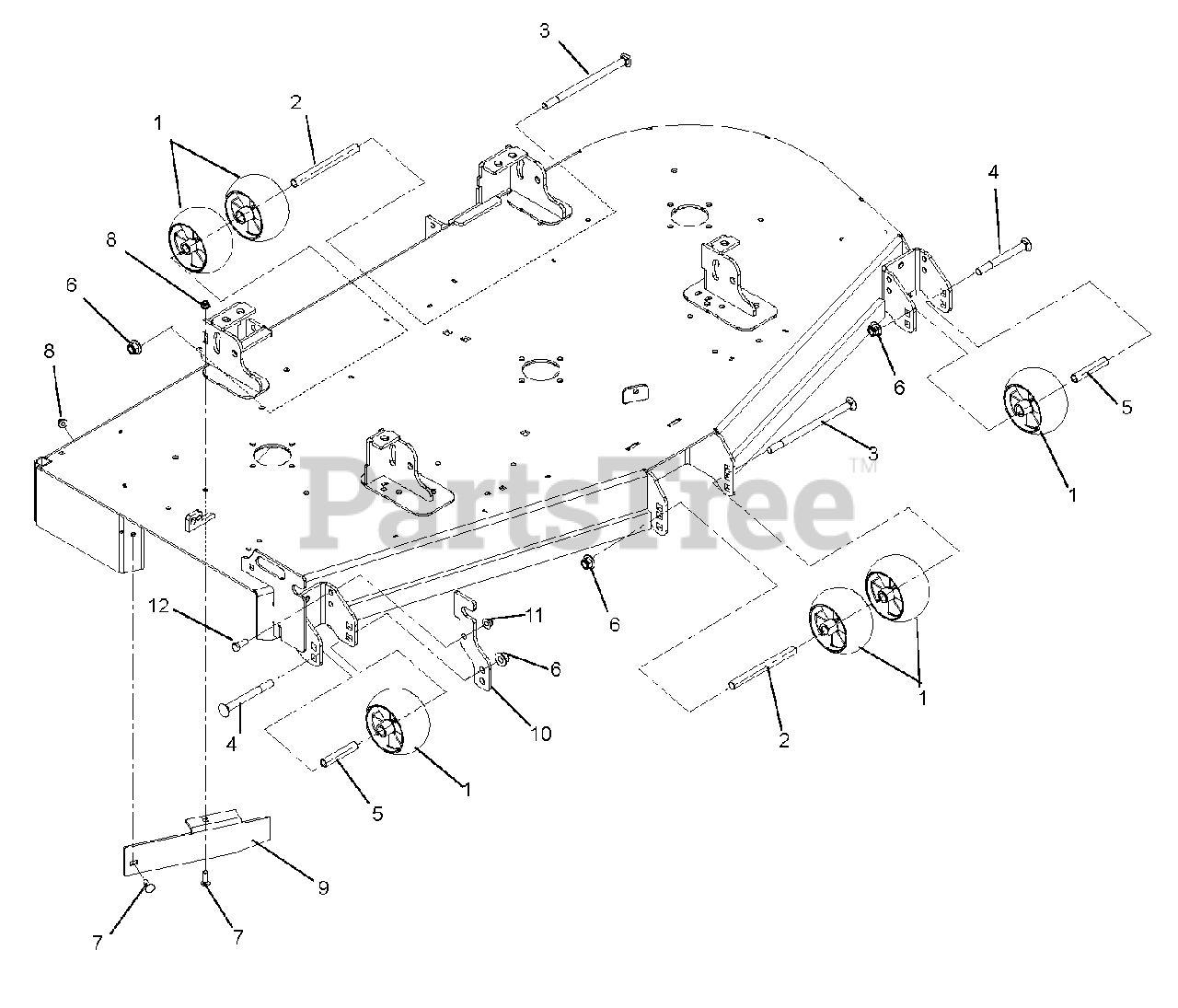

992184 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Anti-Scalp Rollers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

Anti-Scalp Rollers Parts Diagram

  • Title

1

Gravely 03905900

Anti-Scalp Wheel- 5 x 3 Center

$11.99

$

In Stock, Qty 20+

0

2

Gravely 00473800

Spacer, .510 x .625 x 6.70

$21.99

$

In Stock, Qty 20+

0

3

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

4

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

Nut, Locking-Nylon-Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06545400

Nut, Locking-Nylon-Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00374153

60" Discharge Baffle (185, 187)

Note: (185, 187)

$28.99

$

In Stock, only 1 left!

0

Gravely 00358953

66" Discharge Baffle (186)

Note: (186)

$71.99

$

Usually ships in 4-12 days

0

Gravely 00440853

52" Discharge Baffle (184)

Note: (184)

$37.99

$

Usually ships in 4-12 days

0

10

Gravely 00474753

Bracket, Chute Storage

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

Nut, Locking-Nylon-Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
