992183 (PM 266H XDZ LPG) - Gravely Pro-Master 66" Zero-Turn Mower, 31hp Kawasaki, Propane (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 66" Zero-Turn Mower, 31hp Kawasaki, Propane

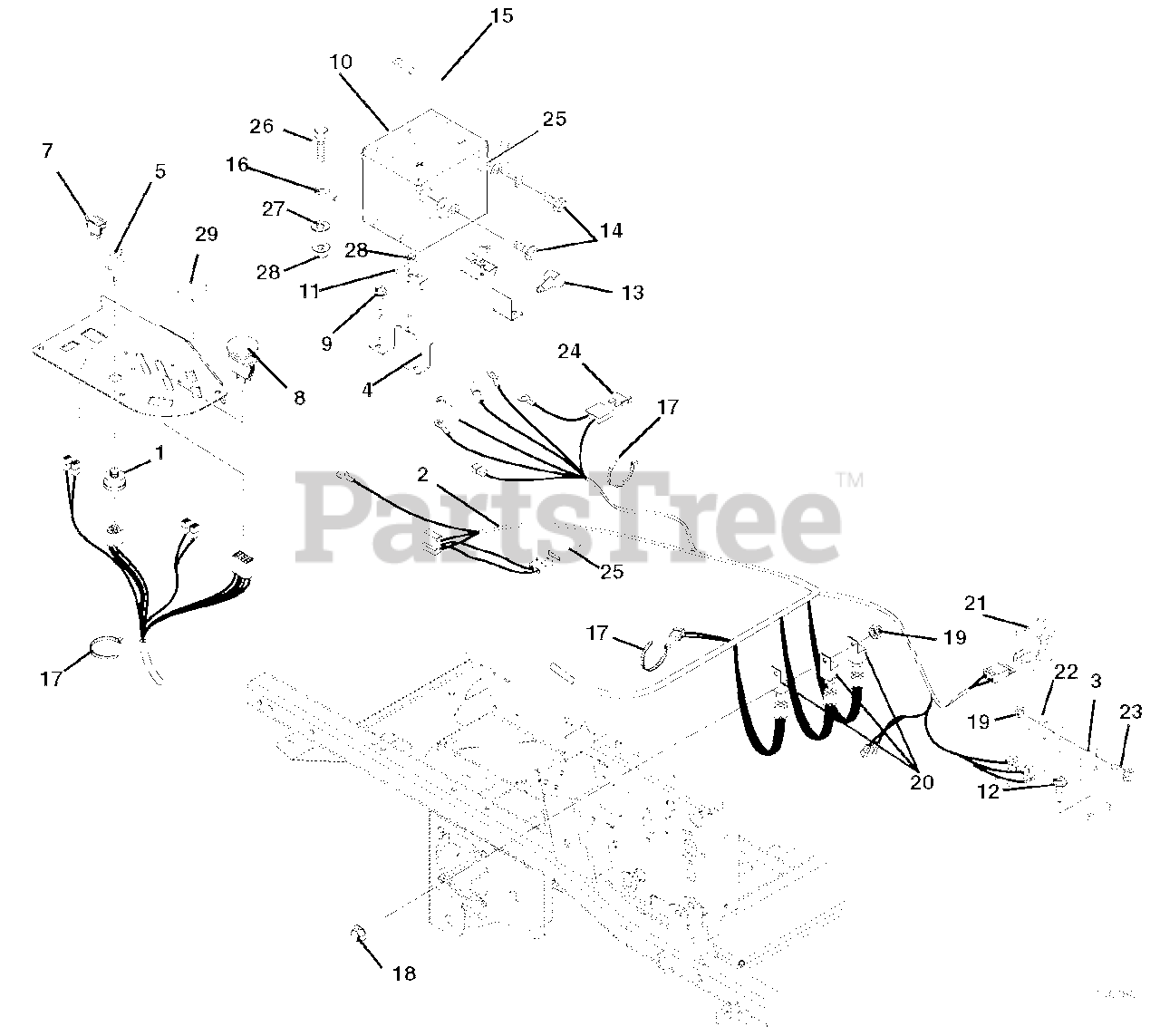

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

2

Gravely 03286300

Harness, MZ Vertical A/C
(Superseded to 04294000)

$175.99

$

In Stock, only 1 left!

0

3

Gravely 09275851

Mount, Safety Switch

$21.99

$

In Stock, only 1 left!

0

4

Gravely 09266551

Weldment, Battery Support

$

$

Not available

5

Gravely 09287000

Key, with Shield

$14.99

$

In Stock, Qty 20+

0

6

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 00456600

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 1 left!

0

8

Gravely 01545600

Switch, PTO Clutch

$25.99

$

In Stock, Qty 20+

0

9

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00525500

Battery with Tube

$

$

Not available

11

Gravely 09266600

Bracket, Battery Hold-Down

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

Bolt-Hex .25-20 x .75 Grade 5

$

$

Not available

15

Gravely 00609900

Cable, Positive Battery with Boots
(Superseded to 03287000)

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 09278100

Cable, Negative Battery

$32.99

$

Usually ships in 4-12 days

0

17

Gravely 07517300

Cable Tie

$

$

Not available

18

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

21

Gravely 02754100

Switch, Snap Mounting

$9.49

$

In Stock, Qty 20+

0

22

Gravely 03606600

Switch- Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

23

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

24

Gravely 00524600

Fuse, 30 Amp (Included with Harness)

Note: (Included with Harness)

$

$

Not available

25

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

26

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0
