992183 (PM 266H XDZ LPG) - Gravely Pro-Master 66" Zero-Turn Mower, 31hp Kawasaki, Propane (SN: 000101 & Above) Control Panel Parts Diagram

Pro-Master 66" Zero-Turn Mower, 31hp Kawasaki, Propane

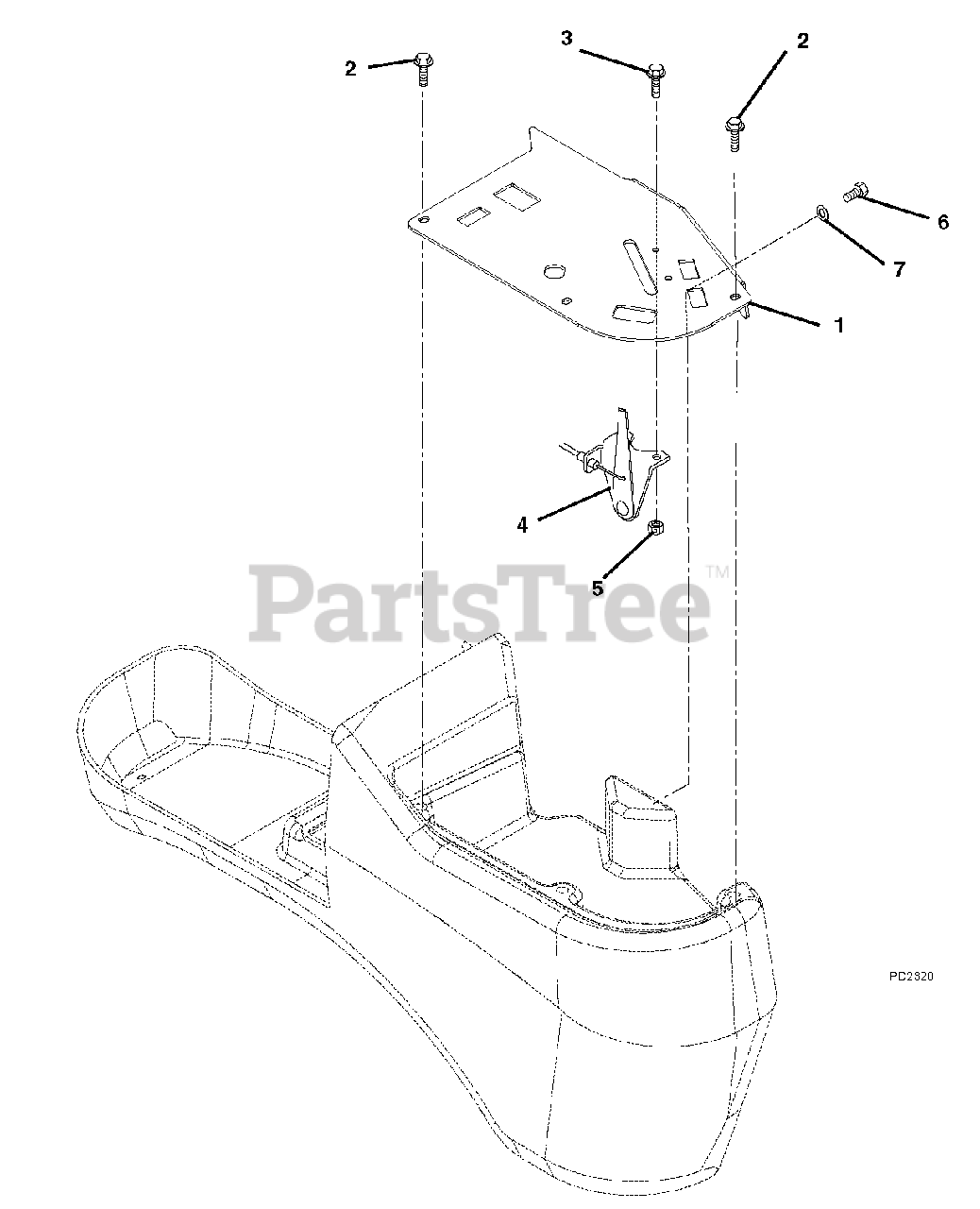

Control Panel Parts Diagram

  • Title

1

Gravely 00974651

Panel, Control

$

$

Not available

2

Gravely 06100137

Screw, Machine 10-24 x .50 Hex Washer Head, Stainless

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

4

Gravely 06900026

Throttle, Control

$45.99

$

In Stock, only 1 left!

0

5

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
