992182 (PM 260H XDZ LPG) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane (SN: 000101 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane

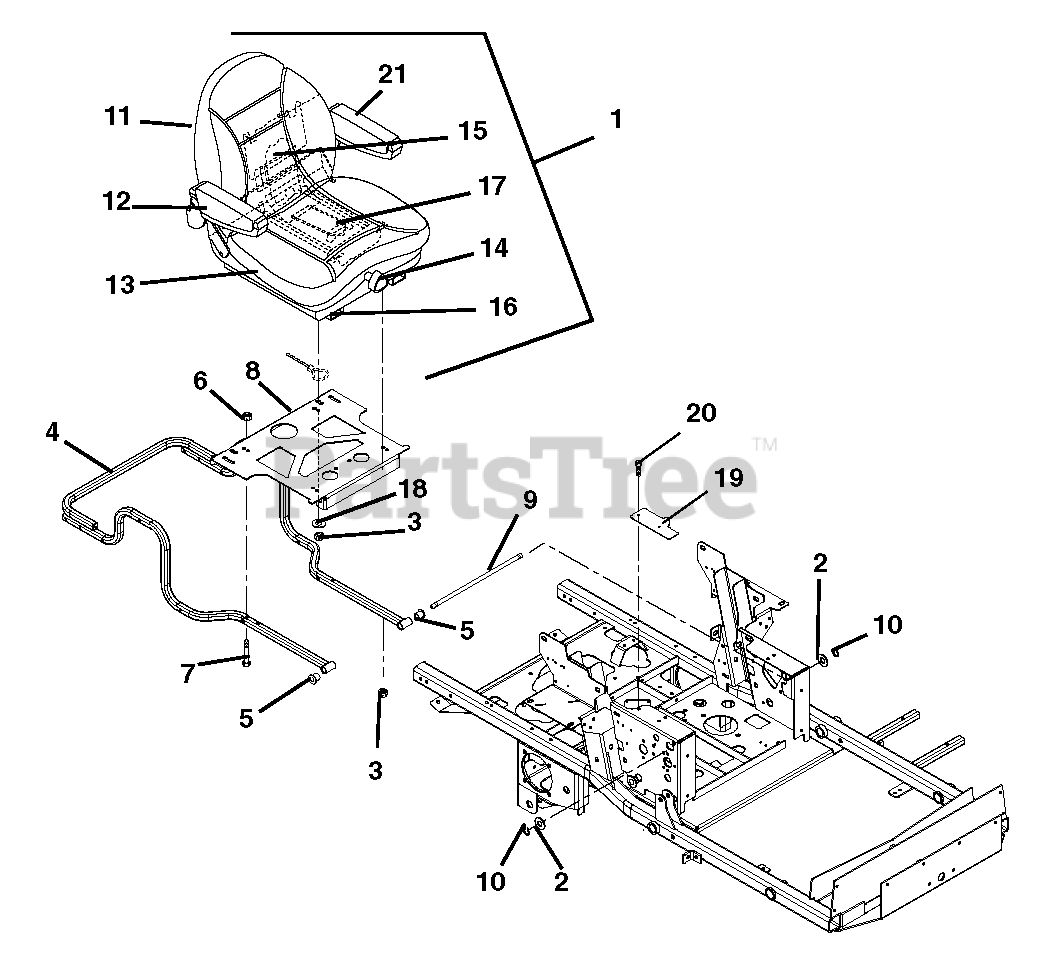

Seat And Hood Frame Parts Diagram

  • Title
1

Gravely 03947200

Seat, Suspension, Light Gray

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00974053

Weldment, Hood Frame

$

$

Not available

5

Gravely 05521100

Bushing-Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07056300

Bolt, Rib Neck .38-16 x 1.50

$

$

Not available

8

09074151

Weldment, Seat Pivot Mount

$

$

Not available

9

Gravely 09245400

Rod, Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

10

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

11

Gravely 59208800

Kit, Back Cushion, Light Gray

$423.99

$

Usually ships in 4-12 days

0

12

Gravely 59210400

Kit, Right Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

13

Gravely 59208900

Kit, Seat Cushion, Light Gray

$258.99

$

In Stock, only 3 left!

0

14

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

15

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

16

Gravely 59207900

Kit, Seat Slides

$

$

Not available

17

Gravely 59207800

Kit, Seat, Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

18

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 00978651

Plate, Block Off

$

$

Not available

20

Gravely 07414200

Screw, Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

21

Gravely 59210500

Kit, Left Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0
