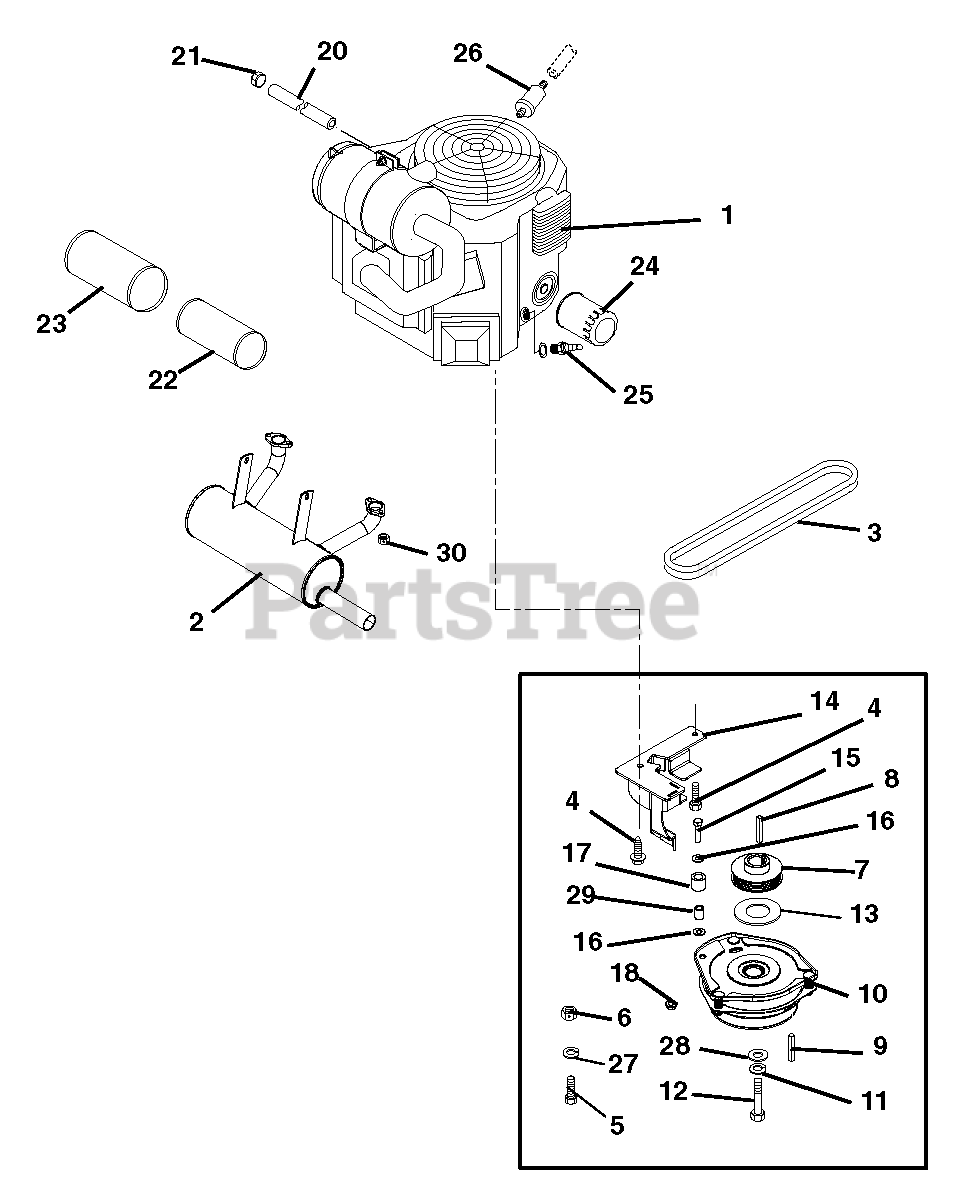

992182 (PM 260H XDZ LPG) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200423

Engine, Generac GTV990 (LPG) (992182)

Note: (LPG) (992182)

$

$

Not available

2

Gravely 00976700

Muffler, Generac GTV990 (LPG) (992182)

Note: (LPG) (992182)

$

$

Not available

3

Gravely 07242000

Belt, Poly-V

$53.99

$

In Stock, Qty 20+

0

4

Gravely 07417400

Screw, Tapping Hex Washer Head .38-16 x 1.
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300440

Sheave, Poly V 1.27 x 3.275

$

$

Not available

8

Gravely 06603400

Key-Square .25 x 1.25 x .25 SAE

$3.99

$

In Stock, Qty 11

0

9

Gravely 06601800

Key-Straight .25 x 1.75 x .25

$3.99

$

In Stock, only 2 left!

0

10

Gravely 00447100

Clutch, Electric

$685.99

$

In Stock, only 1 left!

0

11

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

12

Gravely 05900040

Bolt, Hex .44-20 x 2.25 Grade 5

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 06400831

Washer, 1.13ID x 1.75OD x .048 Steel

$

$

Not available

14

Gravely 03925851

Anchor Clutch

$

$

Not available

15

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

18

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

20

Gravely 03873100

Hose, Hydraulic .38-11-0K M6N0-M6N0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

21

Gravely 03873200

Pipe Cap .38 NPT Female

$12.99

$

Usually ships in 4-12 days

0

22

Gravely 21536900

Element, Inner Safety

$28.99

$

In Stock, only 1 left!

0

23

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

24

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

25

Gravely 21536100

Spark Plug

$3.49

$

In Stock, only 1 left!

0

26

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$

$

Not available

27

Gravely 06307200

Washer, Locking-EXT.326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

29

Gravely 08905500

Bushing, .407 x .625 x .813

$13.99

$

In Stock, only 1 left!

0

30

Gravely 06500018

Nut, Locking, Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0
