992174 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Hydrostatic Pumps & Idlers - STD Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

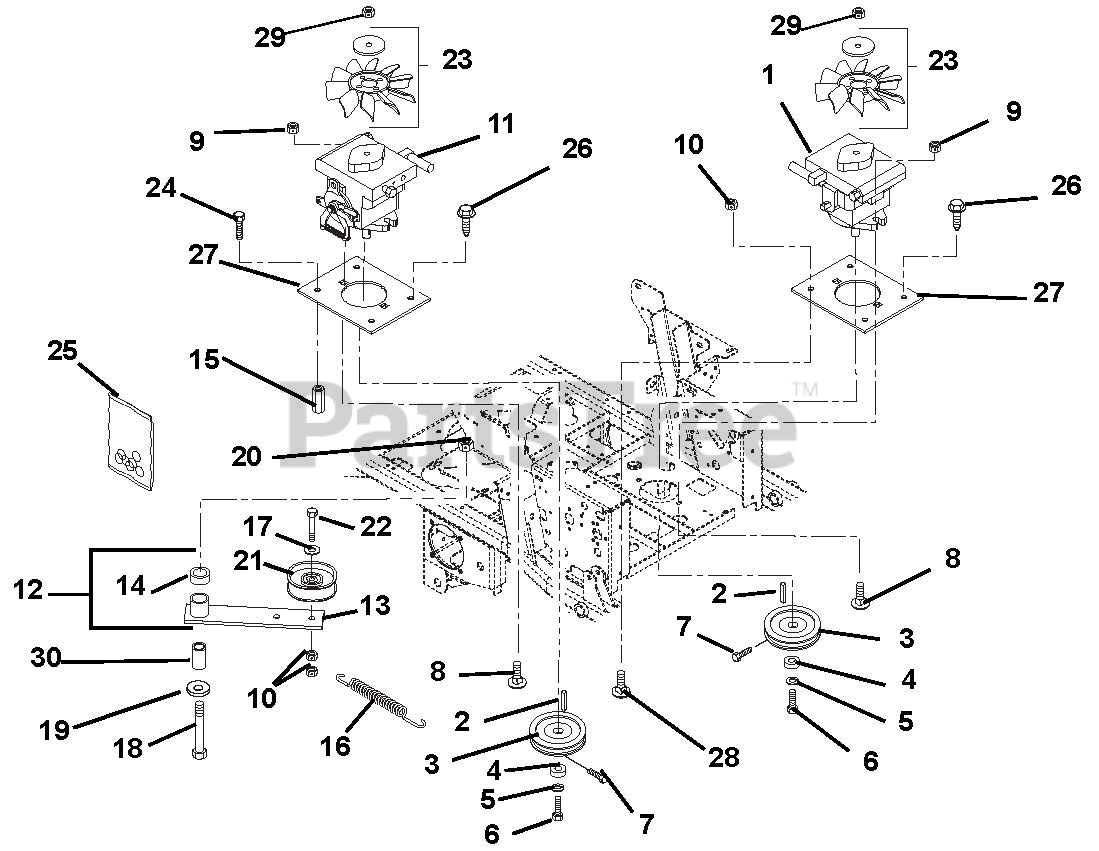

Hydrostatic Pumps & Idlers - STD Parts Diagram

  • Title

1

Gravely 09285200

Pump, Hydraulic

$1047.99

$

Usually ships in 4-12 days

0

2

Gravely 06607500

Key, Square 5 x 5 x 25mm Plain

$3.99

$

In Stock, only 2 left!

0

3

Gravely 03254900

Sheave, Poly-V, 10CC Pump

$

$

Not available

4

Gravely 06426600

Washer, Flat Steel .281 x 1.0 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05975900

Bolt, Hex M6 x 1.0 x 16
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

7

Gravely 05980100

Screw, Socket Head .25-20 x .50
(Superseded to 05900127)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06224500

Bolt, Round Head Square Neck .44-14 x 1.50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06500009

Nut, Nyloc Flange .44-14
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

10

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00298600

Pump, Hydraulic, FAN

$

$

Not available

12

Gravely 09219000

Assembly, Idler Arm Guard Drive

Note: (Includes 13 & 14)

$100.99

$

In Stock, only 1 left!

0

13

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

14

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

16

Gravely 08336000

Spring, Tension .120 x .845 x 6.500
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

Washer, Flat Steel .39 x .75 x.125

$7.99

$

In Stock, Qty 8

0

18

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07300101

Assembly, 4" Idler, .75 Wide

$62.99

$

In Stock, Qty 20+

0

22

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 03368800

Fan, Cooling

$32.99

$

In Stock, only 1 left!

0

24

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 59203600

Kit, Pump Seal

Note: (One kit required for each pump)

$77.99

$

Usually ships in 4-12 days

0

26

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolling
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00665851

12CC Pump Mounting Plate

$

$

Not available

28

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

29

Gravely 06537000

Nut, Center-Lock .31-24

$

$

Not available

30

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0
