992172 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps & Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

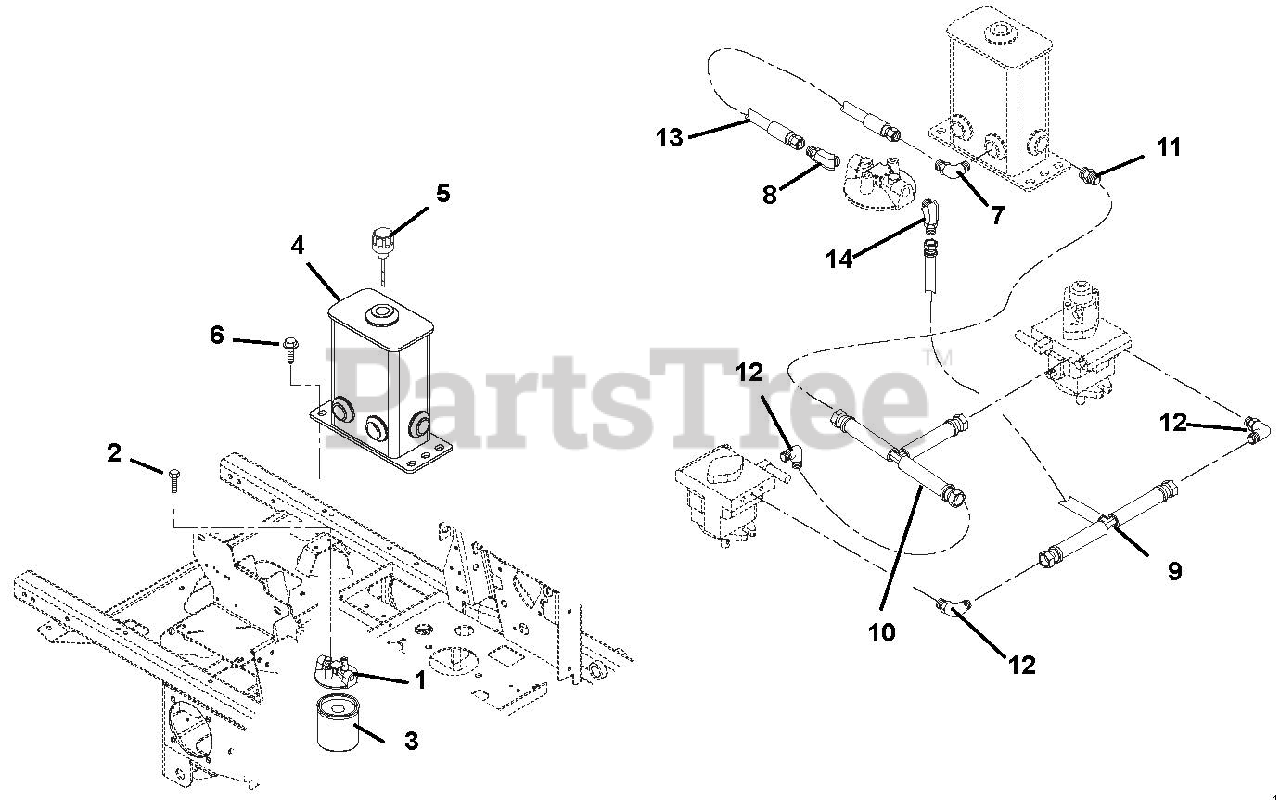

Hydraulic Tank, Filter, Pumps & Hoses Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy Grade 5
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 09414200

Oil Filter
(Superseded to 03931900)

Note: *Use Mobil 1 15W50 Extended Performance Synthetic Oil

$26.99

$

In Stock, Qty 20+

0

4

Gravely 02985251

Weldment, Formed Hydraulic Tank-2 PORT

$196.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Dipstick, Breather

$

$

Not available

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow, Steel M8F-M80

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 07059900

Fitting, Hydraulic Straight M80-M80

$9.49

$

In Stock, only 4 left!

0

9

Gravely 03281200

Hose, .50 To .38 Tee Assembly

$

$

Not available

10

06663000

Hose, .38 Tee Assembly

$

$

Not available

11

Gravely 07062100

Fitting, Hydraulic Straight M10O-M8F

$14.99

$

In Stock, only 1 left!

0

12

Gravely 07063600

Fitting, Hydraulic

Note: (6 C5OLO)

$34.99

$

In Stock, only 4 left!

0

13

Gravely 00589900

Hose, Hydraulic Molded

$

$

Not available

14

Gravely 07066200

Fitting, Hydraulic 45° M80-M80

$59.99

$

Usually ships in 4-12 days

0
