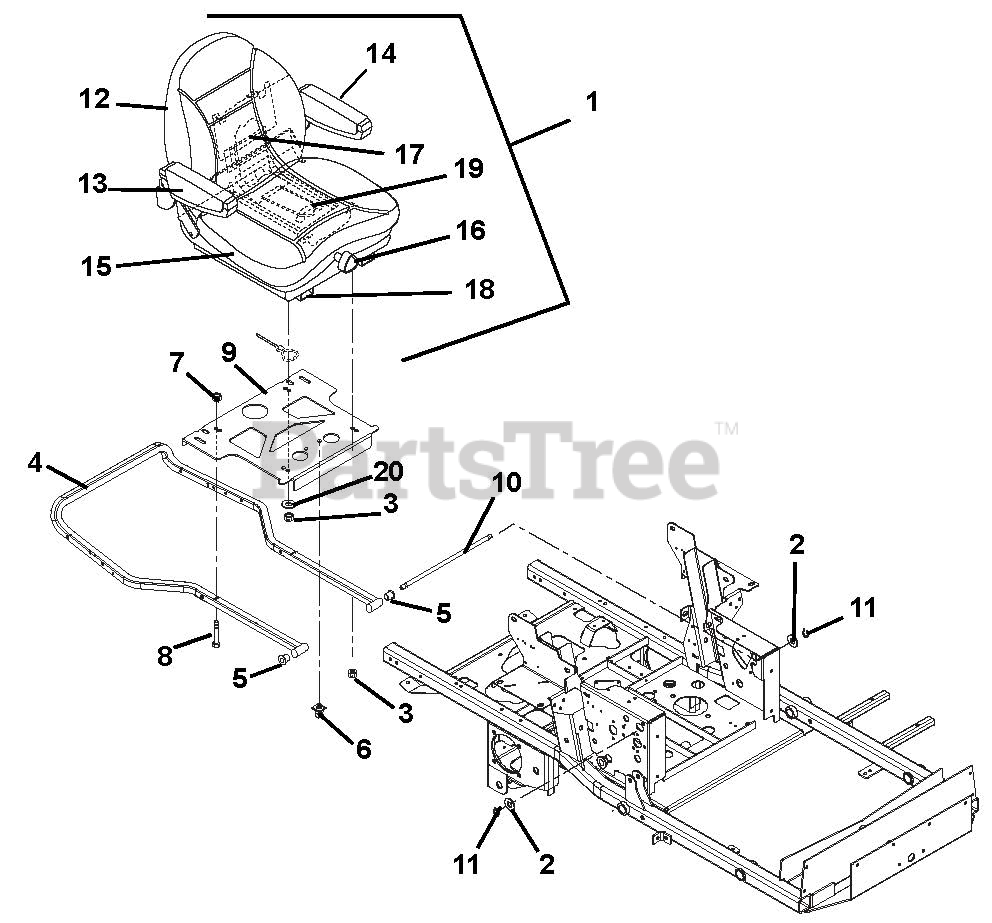

992170 (PM 266H XDZ) - Gravely Pro-Master 66" Zero-Turn Mower, 30hp Kawasaki (SN: 003000 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 66" Zero-Turn Mower, 30hp Kawasaki

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 03947200

Seat, Suspension, Light Gray

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09293353

Weldment, Hood Frame

Note: (992150, 152, 154, 159, 161, 168, 170, 175, 176)

$271.99

$

Usually ships in 4-12 days

0

5

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

6

Gravely 07534100

Clip

$9.49

$

Usually ships in 4-12 days

0

7

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07056300

Bolt, Rib Neck .38-16 x 1.50

$

$

Not available

9

Gravely 03259951

Seat Plate

$

$

Not available

10

Gravely 09245400

Rod, Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

11

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

12

Gravely 59208800

Kit, Back Cushion, Light Gray

$423.99

$

Usually ships in 4-12 days

0

13

Gravely 59210400

Kit, Armrest Assembly – Right Side

$129.99

$

Usually ships in 4-12 days

0

14

Gravely 59210500

Kit, Armrest Assembly – Left Side

$129.99

$

Usually ships in 4-12 days

0

15

52908900

Kit, Seat Cushion, Light Gray

$

$

Not available

16

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

17

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

18

Gravely 59207900

Kit, Seat Slides

$

$

Not available

19

Gravely 59207800

Kit, Seat, Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

20

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0
