992166 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki (SN: 003000 & Above) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki

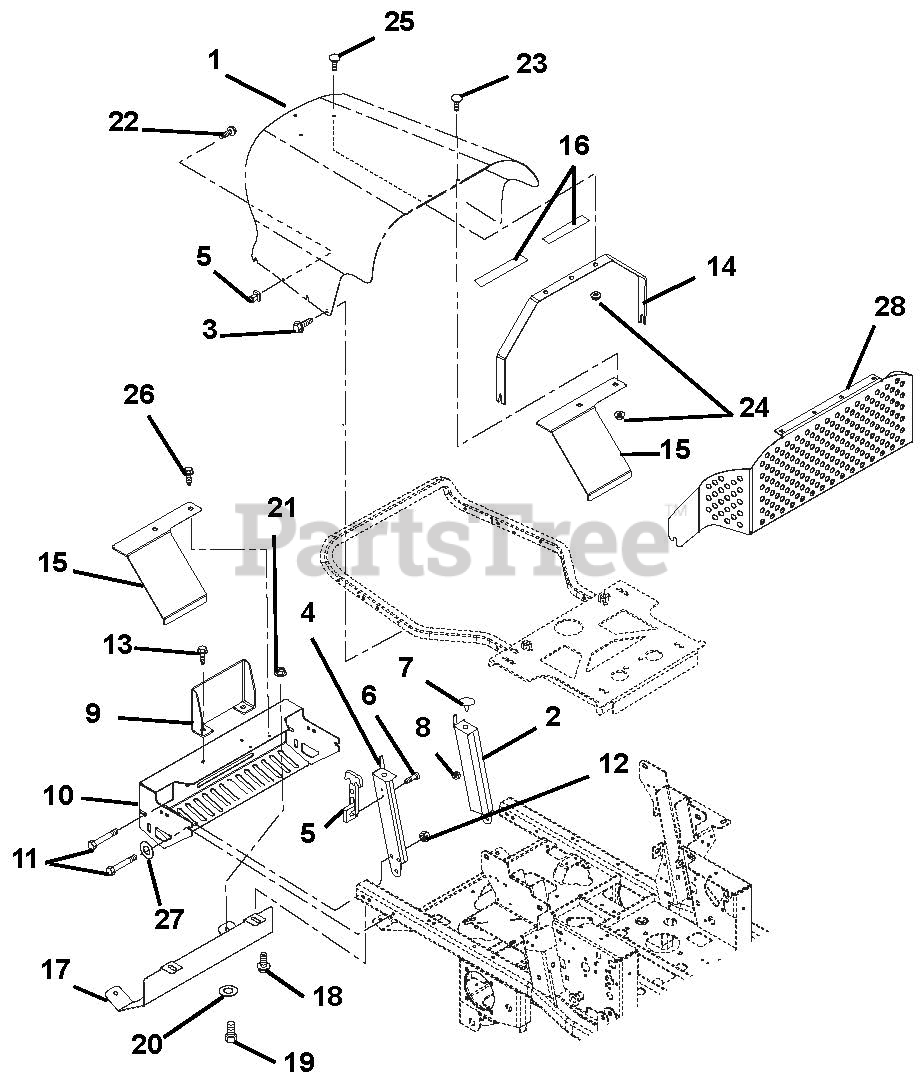

Hood And Bumper Parts Diagram

  • Title

$109.99

$

Usually ships in 4-12 days

0

2

Gravely 09275153

Weldment, Hood Support, Left Hand

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09227953

Weldment, Hood Support Right Hand

$102.99

$

Usually ships in 4-12 days

0

5

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

6

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07533600

Button Bumper

$11.99

$

In Stock, only 1 left!

0

8

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09229951

Guard, Muffler

$64.99

$

Usually ships in 4-12 days

0

10

Gravely 00463251

Bumper, Rear

$

$

Not available

11

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00483051

Hood Support

Note: (992152, 159, 176)

$

$

Not available

15

Gravely 00355451

Guard

Note: (992152, 159, 176)

$24.99

$

Usually ships in 4-12 days

0

16

Gravely 00932300

VHB Tape 4941F

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 00462251

Heat Shield

$103.99

$

Usually ships in 4-12 days

0

18

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435900

Washer, Flat Steel .438 x1.00 x .083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06118200

Screw, Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

Note: (992150, 154, 161, 162, 163, 164, 165, 167, 168, 170, 175)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

Note: (992150, 154, 161, 162, 163, 164, 165, 167, 168, 170, 175)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

Note: (992152, 159, 176)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 01058851

Plenum, Hood

Note: (992150, 154, 161, 162, 163, 164, 165, 167, 168, 170, 175)

$51.99

$

Usually ships in 4-12 days

0
