992158 (PM 272H XDZ) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 000201 - 002499) Brake Linkage Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Daihatsu Diesel

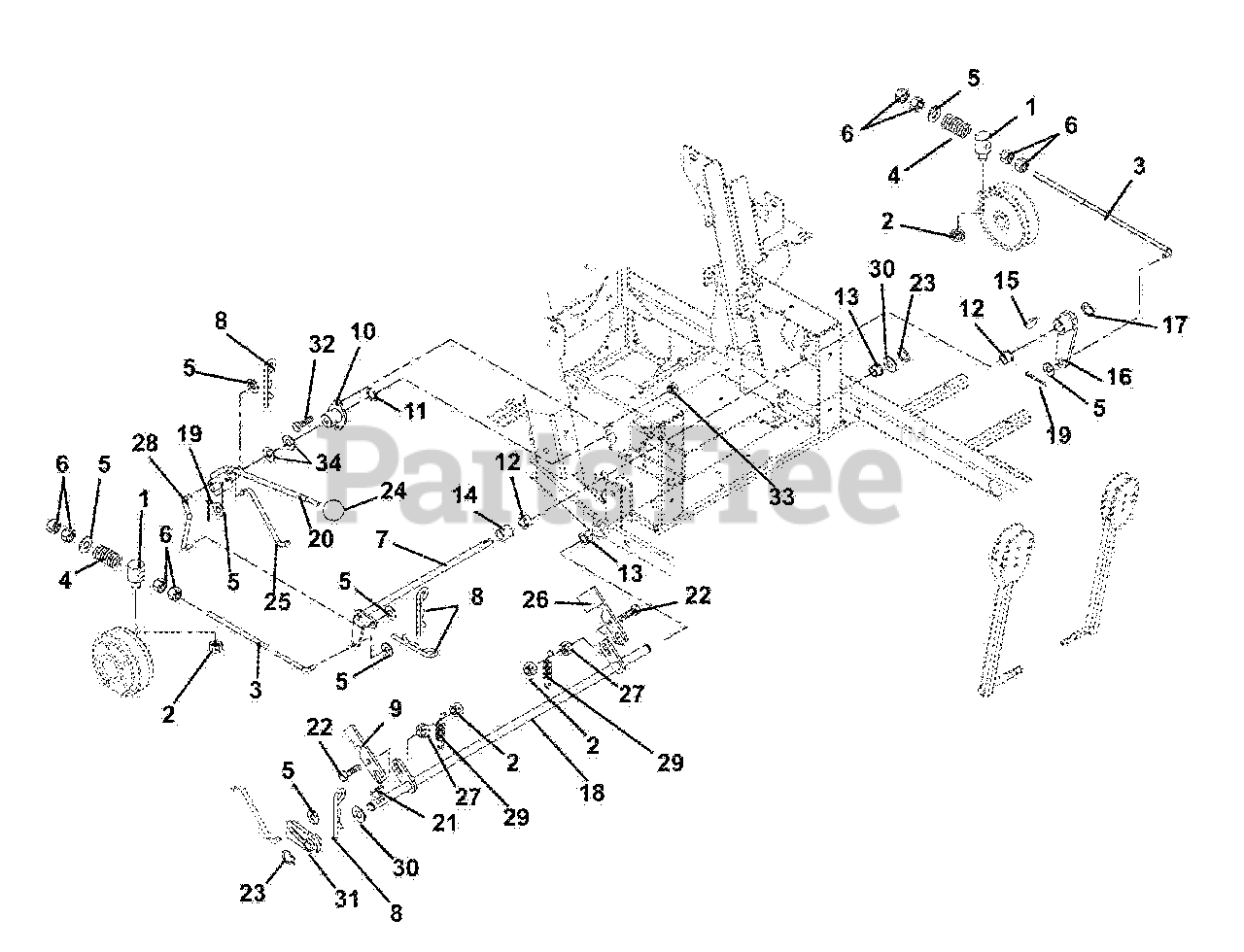

Brake Linkage Parts Diagram

  • Title

1

Gravely 09267300

Pivot, Brake Rod

$6.99

$

In Stock, only 1 left!

0

2

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 08873000

PTO Link Rod

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 08300027

Spring, Compression .142 x .710 x 1.75

$9.49

$

In Stock, only 2 left!

0

5

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00258800

Shaft, Brake Cross

$112.99

$

Usually ships in 4-12 days

0

8

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 09267700

Slide, Interlocking Brake

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 05534700

Bushing, Flange

$21.99

$

In Stock, only 2 left!

0

11

Gravely 05709200

Ring, Retaining External .625 x .05

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 05518400

Bushing, Flange Nylon .762 x 1.00 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05521100

Bushing, Flange .515 x .75 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

14

Gravely 05500900

Bushing, Sleeve .75 x 1.00 x .75

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 06608700

Key, Woodruff .19 x .75 Hard #9

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00258600

Arm, Brake

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 05714600

Ring, Retaining External .69 x .077

$2.49

$

In Stock, Qty 5

0

18

Gravely 09268000

Weldment, Mechanical Brake

$187.99

$

In Stock, only 1 left!

0

19

Gravely 06706900

Pin, Cotter External .09 x .75

$0.99

$

In Stock, Qty 10

0

20

Gravely 00472000

Weldment, Brake Actuating
(Superseded to 03254100)

$112.99

$

Usually ships in 4-12 days

0

21

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

22

Gravely 06219200

Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05717100

Ring, Retaining External .50 x .05

$2.49

$

In Stock, Qty 8

0

24

Gravely 07505200

Knob, Steering Lock

$20.99

$

In Stock, only 1 left!

0

25

Gravely 09268400

Linkage, Brake Actuating

$30.99

$

In Stock, only 1 left!

0

26

Gravely 09275900

Interlock, Safety Switch

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 09268300

Linkage, Brake Actuating

$34.99

$

Usually ships in 4-12 days

0

29

Gravely 08314100

Spring, Tension .048 x .44 x 1.75

$5.99

$

In Stock, Qty 8

0

30

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09268100

Weldment, Parking Brake Hub

$190.99

$

Usually ships in 4-12 days

0

32

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06445100

Washer, Flat Steel .630 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0
