992156 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 002500 - 002999) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel

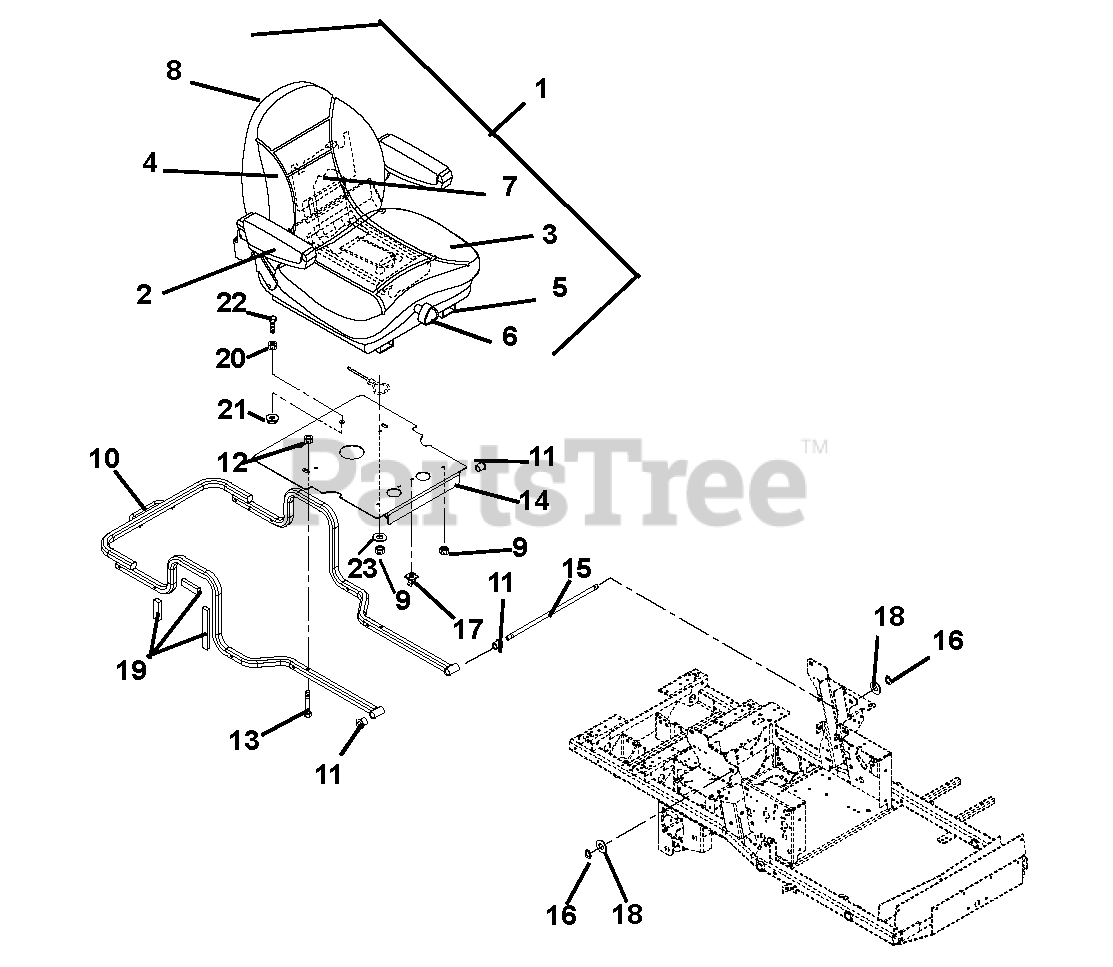

Seat And Hood Frame Parts Diagram

  • Title
1

Gravely 00674000

Seat, Suspension, Light Gray
(Superseded to 03947200)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 59204500

Kit, Arm Pad (1 per bag)

Note: (1 per bag)

$

$

Not available

3

Gravely 59208900

Kit, Seat Cushion, Light Gray

$258.99

$

In Stock, only 3 left!

0

4

Gravely 59208800

Kit, Back Cushion, Light Gray

$423.99

$

Usually ships in 4-12 days

0

5

Gravely 59207900

Kit, Seat Slide

$

$

Not available

6

Gravely 59208000

Kit, Seat Knob

$

$

Not available

7

Gravely 59207800

Kit, Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

8

Gravely 59208100

Kit, Seat Back Panel

$175.99

$

Usually ships in 4-12 days

0

9

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09278753

Weldment, Hood Frame

$517.99

$

Usually ships in 4-12 days

0

11

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07056300

Bolt, Rib Neck .38-16 x 1.50

$

$

Not available

14

Gravely 09274151

Weldment, Seat Pivot Mount

$142.99

$

Usually ships in 4-12 days

0

15

Gravely 09245400

Rod, Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

16

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00932300

Tape, VHB

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

21

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05962000

Bolt, Hex .50-13 x 1.50
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0
