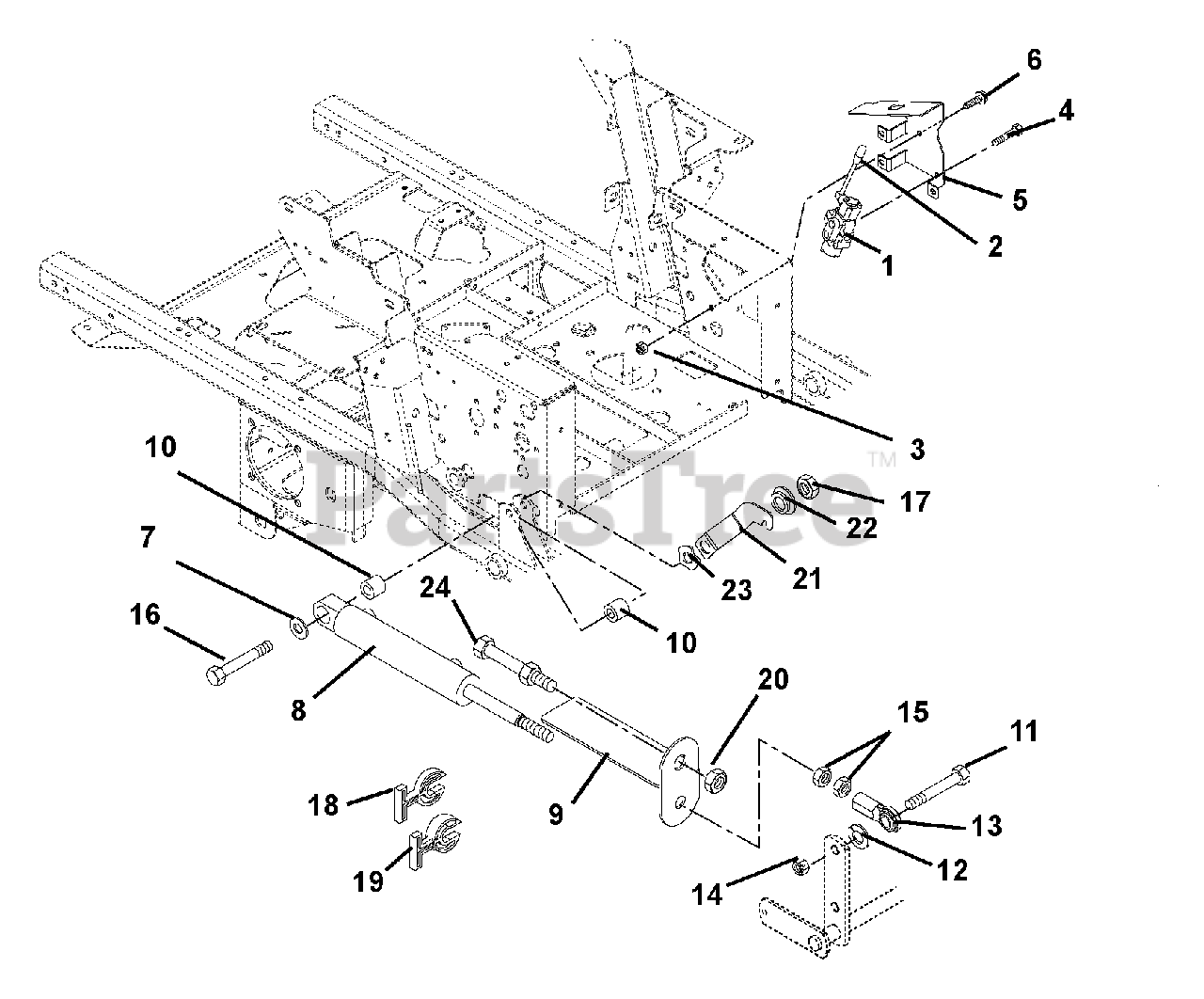

992154 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000400) Hydraulic Lift Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

Hydraulic Lift Cylinder Parts Diagram

  • Title
1

Gravely 09265100

Valve, Hydraulic
(Superseded to 03791700)

$

$

Not available

2

Gravely 21542500

Knob (Service Only)

Note: (Service Only)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05952600

Bolt, Hex .31-18 x 2.5 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09290251

Bracket, Valve Mounting
(Superseded to 03791851)

$26.99

$

Usually ships in 4-12 days

0

6

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 3 left!

0

8

Gravely 09264800

Cylinder, Hydraulic Lift
(Superseded to 04864700)

$516.99

$

In Stock, only 1 left!

0

9

Gravely 00184551

Strap, Cut Indicator / Guard

$75.99

$

Usually ships in 4-12 days

0

10

Gravely 09215200

Bushing .5/6 x 1.00 x 1.05

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 05930700

Bolt, Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06309500

Washer, Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 09221600

Rod End, Right Hand Female .625

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 06535300

Nut, Locking Center .62-11

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06539600

Nut, Jam .625-18

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 05960100

Bolt, Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, only 2 left!

0

19

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0

20

Gravely 06539900

Nut, Jam .75-16

$3.49

$

In Stock, only 2 left!

0

21

Gravely 09291200

Latch, Footboard

$

$

Not available

22

Gravely 05532100

Bushing, Flange .515 x .75 x .275 x 1.12

$

$

Not available

23

Gravely 09252000

Washer, Wave .076 x 1.12 x .08

$3.49

$

Usually ships in 4-12 days

0

$

$

Not available
