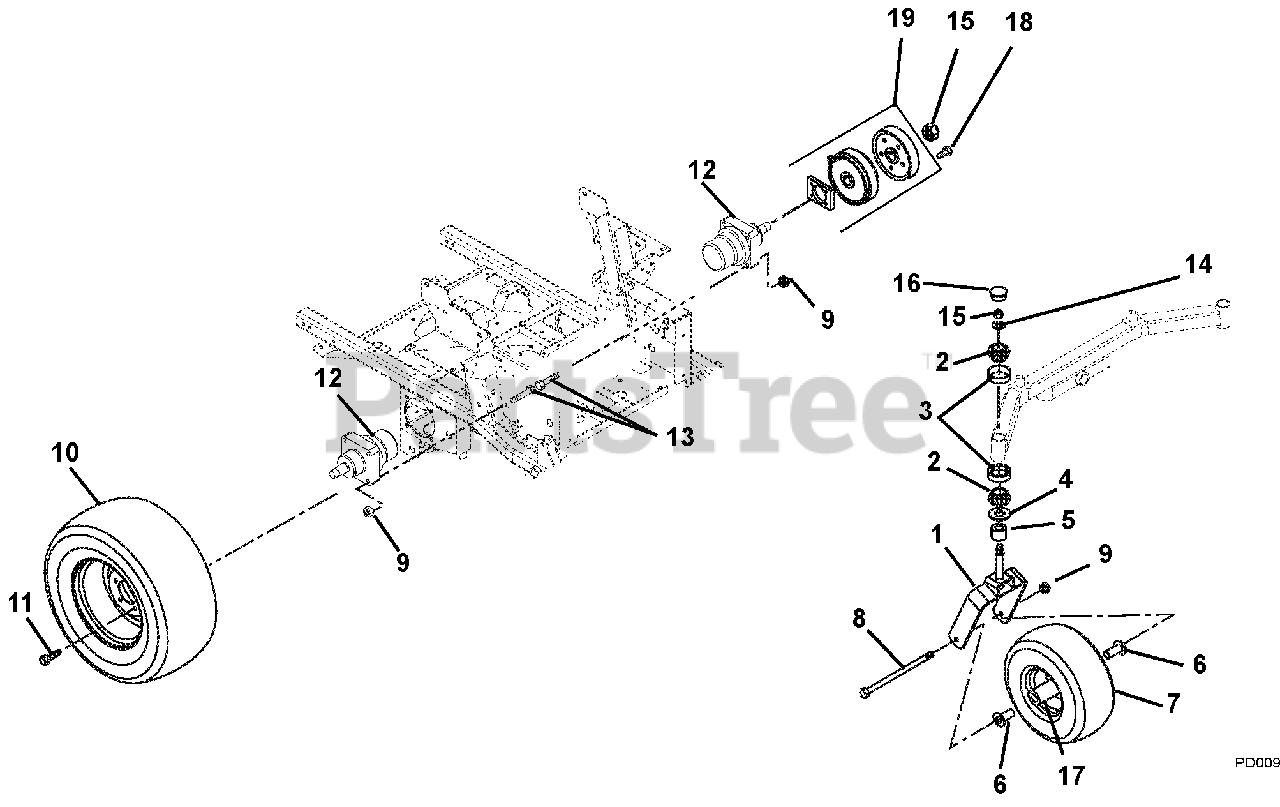

992153 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 000401 & Above) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title

Gravely 03255000

Fork

$

$

Not available

2

Gravely 69000300

Bearing, Cone with Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.98 x .420

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 4 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 7

0

6

Gravely 00675300

Spacer, Wheel

$7.99

$

In Stock, Qty 20+

0

7

Gravely 07100205

Wheel/Tire Assembly
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

Gravely 07147100

Tire, 15 x 6.00-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

8

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07157500

Tire/Wheel Assembly 24 x 12-12 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)
(Superseded to 59210100)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$319.99

$

Usually ships in 4-12 days

0

Gravely 07158100

Tire, Turfmaster 24 x 12-12 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)
(Superseded to 07101040)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$273.99

$

Usually ships in 4-12 days

0

Gravely 07100203

Tire/Wheel Assembly 23 x 10.50-12 (992146)
(Superseded to 59101000)

Note: (992146)

$271.99

$

Usually ships in 4-12 days

0

Gravely 07152300

Tire/Wheel Assembly, 23 x 10.50-12 (992147)
(Superseded to 59101000)

Note: (992147)

$271.99

$

Usually ships in 4-12 days

0

Gravely 07149000

Tire 2 x X10.50-12 Multitrac C/S (992146, 147)

Note: (992146, 147)

$

$

Not available

11

Gravely 07067700

Bolt, Lug Grade 8 .50-20 UNF x 1.38 Long 60 Degree
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

12

Gravely 09263100

Hydraulic Wheel Motor (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$943.99

$

Usually ships in 4-12 days

0

Gravely 00676700

Hydraulic Wheel Motor (992146, 147)

Note: (992146, 147)

$

$

Not available

13

Gravely 07067200

Bolt, Wheel Motor .50-13 x 2.75 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$17.99

$

In Stock, only 3 left!

0

Gravely 05953500

Bolt, Hex .50-13 x 2.75 Grade 8 (992146, 147)
(Superseded to 05901836)

Note: (992146, 147)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06439000

Washer, Flat, Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06536900

Nut, Jam Center Lock .75-16

$5.99

$

In Stock, only 3 left!

0

16

Gravely 00456800

Cap, Dust

$18.99

$

In Stock, Qty 9

0

17

Gravely 05435700

Bearing, 25mm I.D. x 52mm OD x 15mm

$22.99

$

In Stock, Qty 19

0

18

Gravely 05952400

Bolt, Hex .31-18 x 1.5 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

19

Gravely 58904300

Kit, Parking Brake Service

$555.99

$

Usually ships in 4-12 days

0
