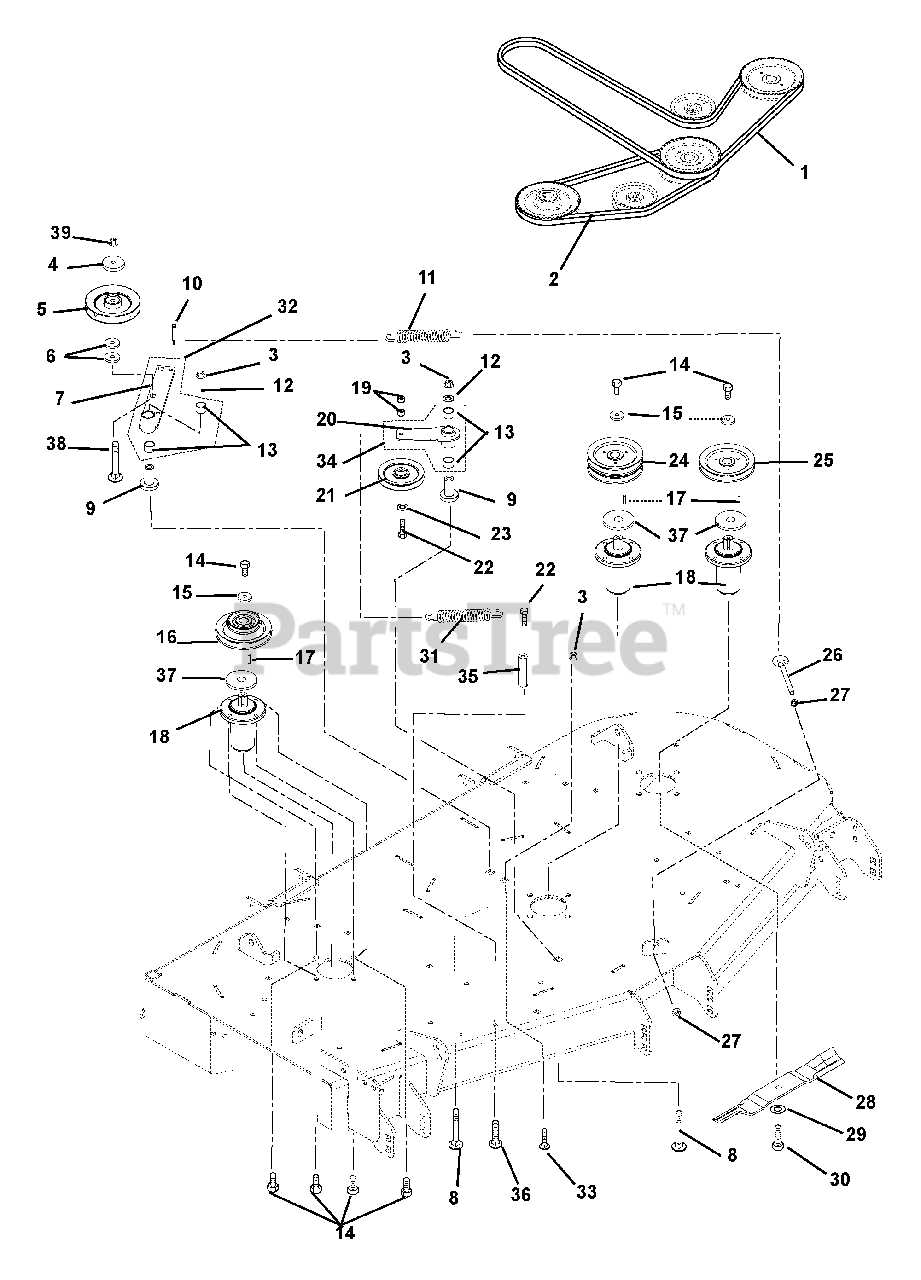

992153 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 000101 - 000400) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200026

Belt, 120.50" Long, PTO Drive Hex

Note: (992146, 148, 149, 150)

$134.99

$

In Stock, Qty 5

0

1

Gravely 07200028

Belt, 130" Long, PTO Drive Hex

Note: (992147, 151, 152, 153, 154, 155)

$134.99

$

In Stock, Qty 5

0

1

Gravely 07200032

Belt, 147" Long, PTO Drive Hex

Note: (992157)

$137.99

$

Usually ships in 4-12 days

0

2

Gravely 07200036

V-Belt, 56" Long Cog B-Section

Note: (992146, 148, 149, 150)

$63.99

$

In Stock, Qty 14

0

2

Gravely 07200038

V-Belt, 63" Long Cog B-Section

Note: (992147, 151, 152, 153, 154, 155)

$68.99

$

In Stock, Qty 20+

0

2

Gravely 07200039

V-Belt, 76" Long Cog B-Section

Note: (992157)

$76.99

$

In Stock, Qty 10

0

3

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

5

Gravely 07328000

Pulley, V 6.0 x .500 ID DBL. Bearing

$108.99

$

In Stock, only 1 left!

0

6

Gravely 06445000

Washer, Flat Stee,l .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

7

Gravely 00368251

Idler, Pivot Arm
(Superseded to 03379851)

$91.99

$

Usually ships in 4-12 days

0

8

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200340)

$5.99

$

In Stock, only 2 left!

0

9

Gravely 07000031

Bearing, Pedestal

$83.99

$

In Stock, only 1 left!

0

10

Gravely 07000034

Bolt, Shoulder .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

11

Gravely 08300030

Spring, Extension)
(Superseded to 08300505)

Note: Spring, Extension)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 06430200

Washer, Flat Steel .531x 1.250 x.100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 07300025

Sheave, Double, 1" ID x 6" OD and 3.50" OD
(Superseded to 07332267)

Note: (992146, 148, 149, 150)

$79.99

$

In Stock, only 1 left!

0

16

Gravely 07300026

Sheave, Double, 1" ID x 6.75" x 4.35" OD
(Superseded to 07329167)

Note: (992147, 151, 152, 153, 154, 155)

$85.99

$

In Stock, Qty 7

0

16

Gravely 07300027

Sheave, Double, 1" ID x 8.25" and 5.25" OD
(Superseded to 59217500)

Note: (992157)

$118.99

$

In Stock, only 2 left!

0

17

Gravely 06611200

Key, Square .25 x .25 x 1 RC 40-50

$2.99

$

In Stock, Qty 15

0

18

Gravely 69219700

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00345600

Idler, Pivot Arm

$51.99

$

In Stock, only 4 left!

0

21

Gravely 07300015

Sheave, .38" ID x 5" OD
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

22

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07300020

Sheave, Double 1" ID x 6.00" OD
(Superseded to 07332367)

Note: (992146, 148, 149, 150)

$78.99

$

In Stock, Qty 16

0

24

Gravely 07300021

Sheave, Double 1" ID x 6.75" OD
(Superseded to 59211500)

Note: (992147, 151, 152, 153, 154, 155)

$91.99

$

In Stock, Qty 20+

0

24

Gravely 07300023

Sheave, Double 1" ID x 8.25" OD
(Superseded to 59217300)

Note: (992157)

$194.99

$

Usually ships in 4-12 days

0

25

Gravely 07300019

Sheave, Single 1" ID x 6.00" OD
(Superseded to 59211700)

Note: (992146, 148, 149, 150)

$82.99

$

In Stock, only 1 left!

0

25

Gravely 07300022

Sheave, Single 1" ID x 6.75" OD
(Superseded to 59211600)

Note: (992147, 151, 152, 153, 154, 155)

$83.99

$

In Stock, Qty 8

0

25

Gravely 07300024

Sheave, Single 1" ID x 8.25" OD
(Superseded to 59217400)

Note: (992157)

$118.99

$

In Stock, only 1 left!

0

26

Gravely 07000030

Bolt, .38-16 x 4.50 .62 Diameter Eye
(Superseded to 07001604)

$6.99

$

In Stock, only 1 left!

0

27

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 00450300

Blade, 18.00" Mower

Note: (HI-LIFT) (992146, 148, 149, 150)

$29.99

$

In Stock, Qty 20+

0

28

Gravely 09081200

Blade, Mower (20.50")

Note: (992147, 151, 152, 153, 154, 155)

$29.99

$

In Stock, Qty 20+

0

28

Gravely 09290500

Blade, Mower (24.50") without Tungsten Carbide Hardfacing

Note: (992157)

$37.99

$

In Stock, Qty 20+

0

29

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, only 3 left!

0

30

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

32

Gravely 00449000

Assembly, PTO Idler Pivot Arm

Note: (Includes item # 7 and item # 13)

$85.99

$

Usually ships in 4-12 days

0

33

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

34

Gravely 00349100

Assembly, Idler Pivot Arm

Note: (Includes item # 13 and item # 20 )

$63.99

$

In Stock, only 2 left!

0

35

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

36

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

38

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 16

0

39

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0
