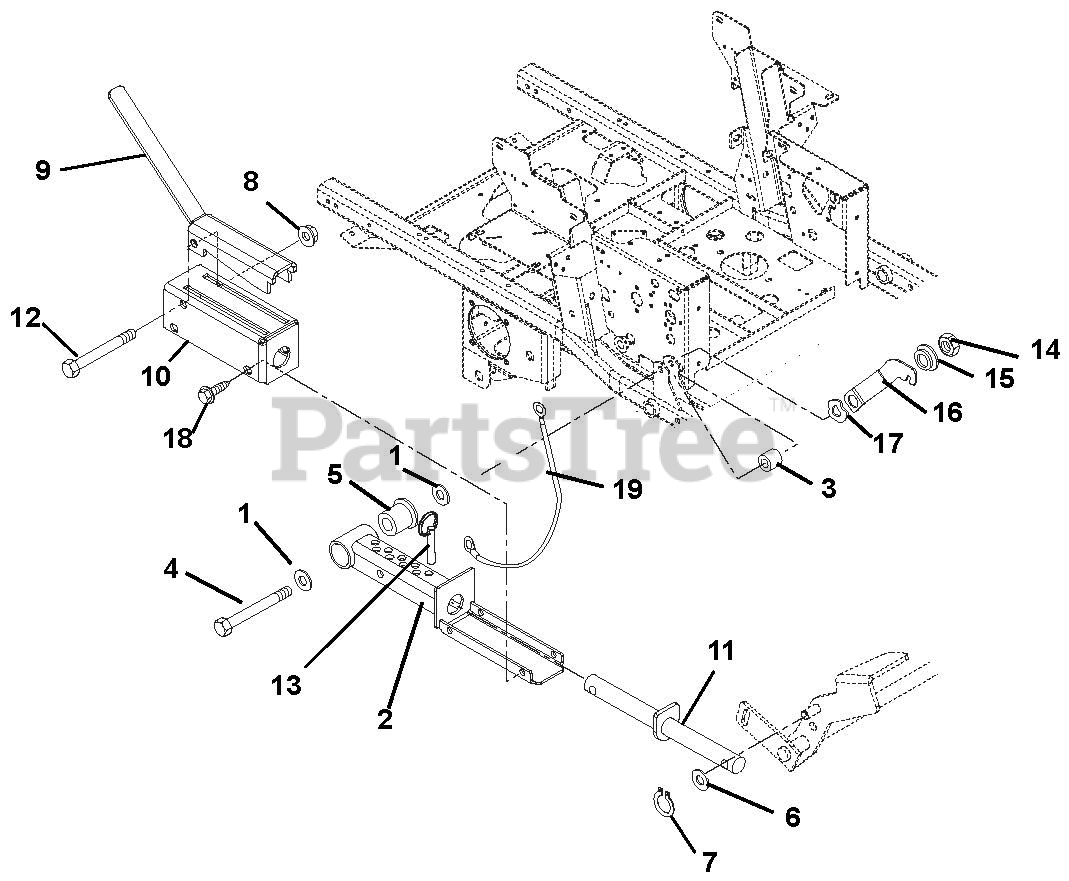

992152 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 26hp Kawasaki (SN: 003000 & Above) Mechanical Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, 26hp Kawasaki

Mechanical Deck Lift Parts Diagram

  • Title

1

Gravely 06430200

Washer, Flat Steel .531 x 1.250 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 09286251

Weldment, Mechanical Lift

$216.99

$

Usually ships in 4-12 days

0

3

Gravely 09215200

Bushing .516 x 1.00 x 1.05

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 07000031

Bearing, Pedestal Powdered Metal

$80.99

$

In Stock, only 1 left!

0

6

Gravely 06442800

Washer, Flat Steel .656 x 1.310 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 05709200

Ring, Retaining External .625 x .050

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00586551

Lock-Up, Mechanical Lift

$

$

Not available

10

Gravely 09299451

Weldment, Mechanical Lift Cover

$45.99

$

Usually ships in 4-12 days

0

11

Gravely 09291500

Weldment, Mechanical Lift Shaft

$150.99

$

Usually ships in 4-12 days

0

12

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05532100

Bushing, Flange .515 x .75 x .275 x 1.12

$

$

Not available

16

Gravely 09291200

Latch, Footboard

$

$

Not available

17

Gravely 09252000

Washer, Wave .076 x 1.12 x .08

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 07412900

Screw, Tapping .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06900317

Cable, 12.0 Lanyard, Nylon

$3.49

$

In Stock, only 2 left!

0
