992150 (PM 252H XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000400) Hydrostatic Pumps & Idlers - XDZ Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

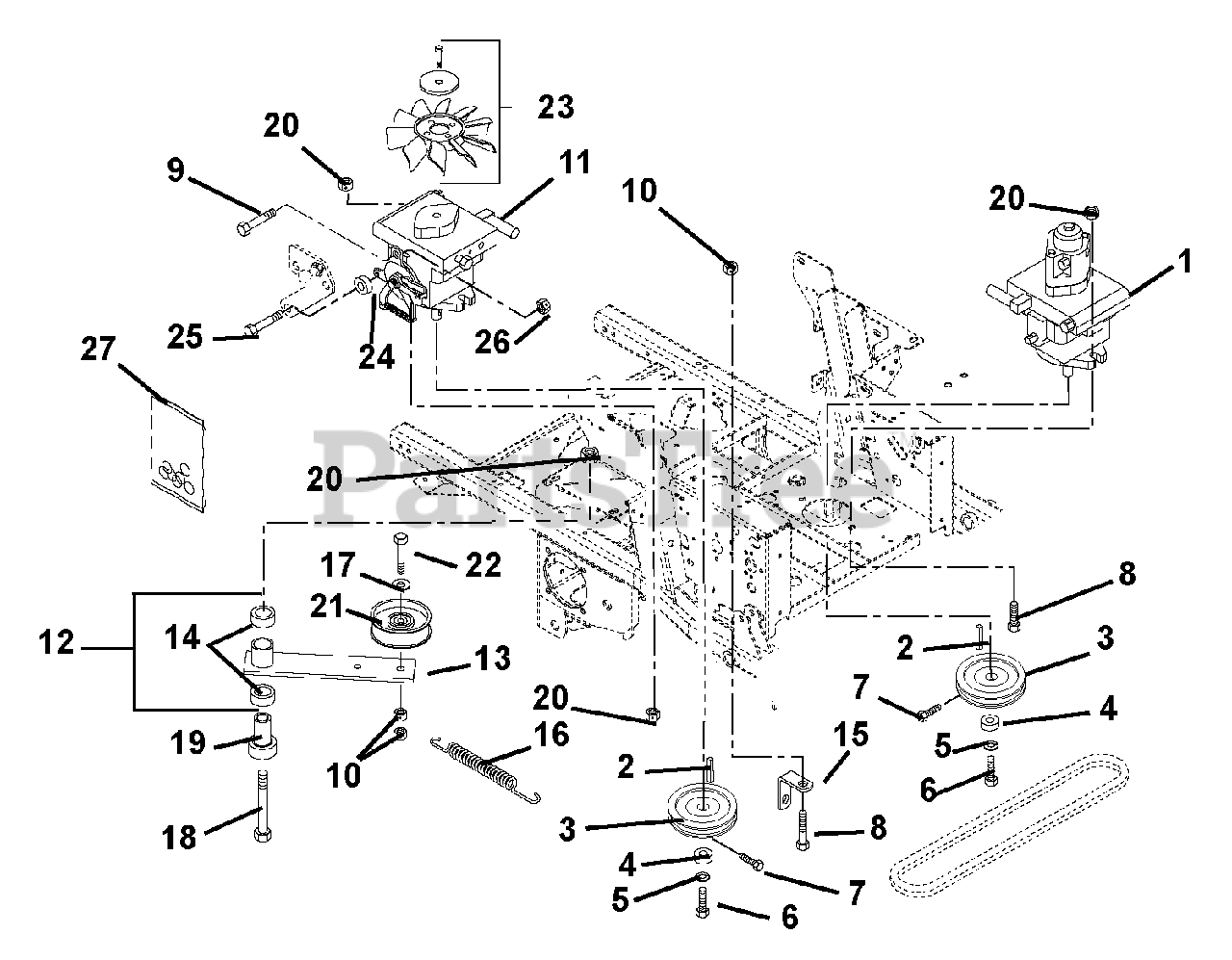

Hydrostatic Pumps & Idlers - XDZ Parts Diagram

  • Title

1

Gravely 00583400

Pump, Hydraulic with Auxiliary

Note: (992149, 150, 153, 154, 157)

$1905.99

$

Usually ships in 4-12 days

0

1

Gravely 00583500

Pump, Hydraulic

Note: (992148, 151, 152, 155)

$

$

Not available

2

Gravely 06611300

Key, Square 5 x 5 x 30mm Plain

$2.49

$

In Stock, Qty 8

0

3

Gravely 07300037

Sheave, Poly V .671 x 4.125

$90.99

$

In Stock, only 1 left!

0

4

Gravely 06426600

Washer, Flat Steel .281 x 1.000 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05975900

Bolt, Hex M6 x 1.0 x 16
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

7

Gravely 05980100

Screw, Socket Head .25-20 x .50
(Superseded to 05900127)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00583600

Pump, Hydraulic BDP-21 with Thru Fan

$1612.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

Assembly, Idler Arm Guard Drive

Note: (Includes 13 & 14)

$100.99

$

In Stock, only 1 left!

0

13

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

15

Gravely 09291151

Anchor, Spring Idler
(Superseded to 04411951)

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 08336000

Spring, Tension .120 x .845 x 6.500
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

Washer, Flat Steel .39 x .75 x.125

$7.99

$

In Stock, Qty 8

0

18

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

20

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07312500

Idler, Flat 4.00 x 0.38
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

22

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 09292400

Fan, Hydro Pump Cooling
(Superseded to 03368800)

$32.99

$

Usually ships in 4-12 days

0

24

Gravely 03101900

Spacer .318 x .43 x .375

$

$

Not available

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

26

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 59203700

Kit, Pump Seal

Note: (BDP-21A); (One kit required for each pump)

$90.99

$

Usually ships in 4-12 days

0
