992150 (PM 252H XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000400) Deck Lift Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

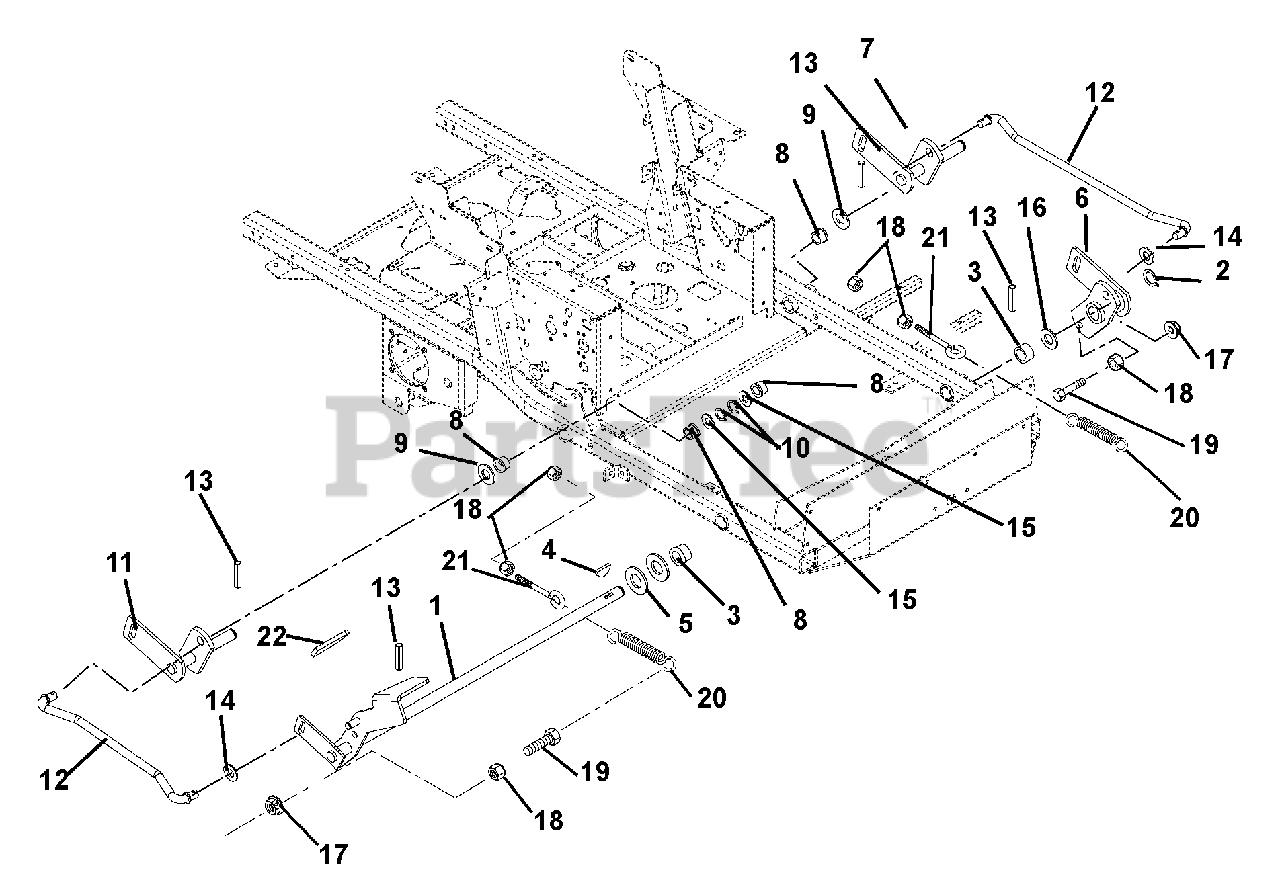

Deck Lift Parts Diagram

  • Title

1

Gravely 00441600

Lift, Mechanical Mower

Note: (992146, 147, 148, 151, 152, 155)

$

$

Not available

1

Gravely 00456000

Lift, Hydraulic Mower

Note: (992149, 150, 153, 154, 157)

$262.99

$

In Stock, only 1 left!

0

2

Gravely 050203

Ring, Retaining External 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

3

Gravely 05500034

Bushing, 1.00 x 1.12 x .75 x 1.375

$6.99

$

In Stock, only 3 left!

0

4

Gravely 124553

Key, Woodruff .25 x 1.00
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

5

Gravely 06443000

Washer, Flat Steel 1.062 x 2.00 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 00441000

Weldment, Lift Arm Front

$99.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

Weldment, Left Hand Rear Lift Arm

$66.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

Bushing, Flange Nylon .762 x 1.00 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 036407

Washer, Hardened Steel .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

Ring, Retaining External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

11

Gravely 00481500

Weldment, Right Hand Rear Lift Arm

$83.99

$

Usually ships in 4-12 days

0

12

Gravely 00185800

Rod, Lift Assist
(Superseded to 04063100)

$68.99

$

In Stock, only 2 left!

0

13

Gravely 05800001

Pin-Roll .250 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

Washer-Flat-Steel .630 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06444200

Washer, Flat Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

16

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 3 left!

0

17

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (992146, 147, 148, 151, 152, 155)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

Note: (992146, 147, 148, 151, 152, 155)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

Note: (992146, 147, 148, 151, 152, 155)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 08319000

Spring, Tension .162 x 1.25 x 8.25

Note: (992146, 147, 148, 151, 152, 155)

$33.99

$

In Stock, Qty 6

0

21

Gravely 07030000

Bolt, Eye .375-16 x 2.50

Note: (992146, 147, 148, 151, 152, 155)

$7.99

$

Usually ships in 4-12 days

0

22

Gravely 00385300

Grip, Foot Pedal

Note: (992146, 147, 148, 151, 152, 155)

$

$

Not available
