992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000400) Hydraulic Tank, Filter, Pumps, & Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

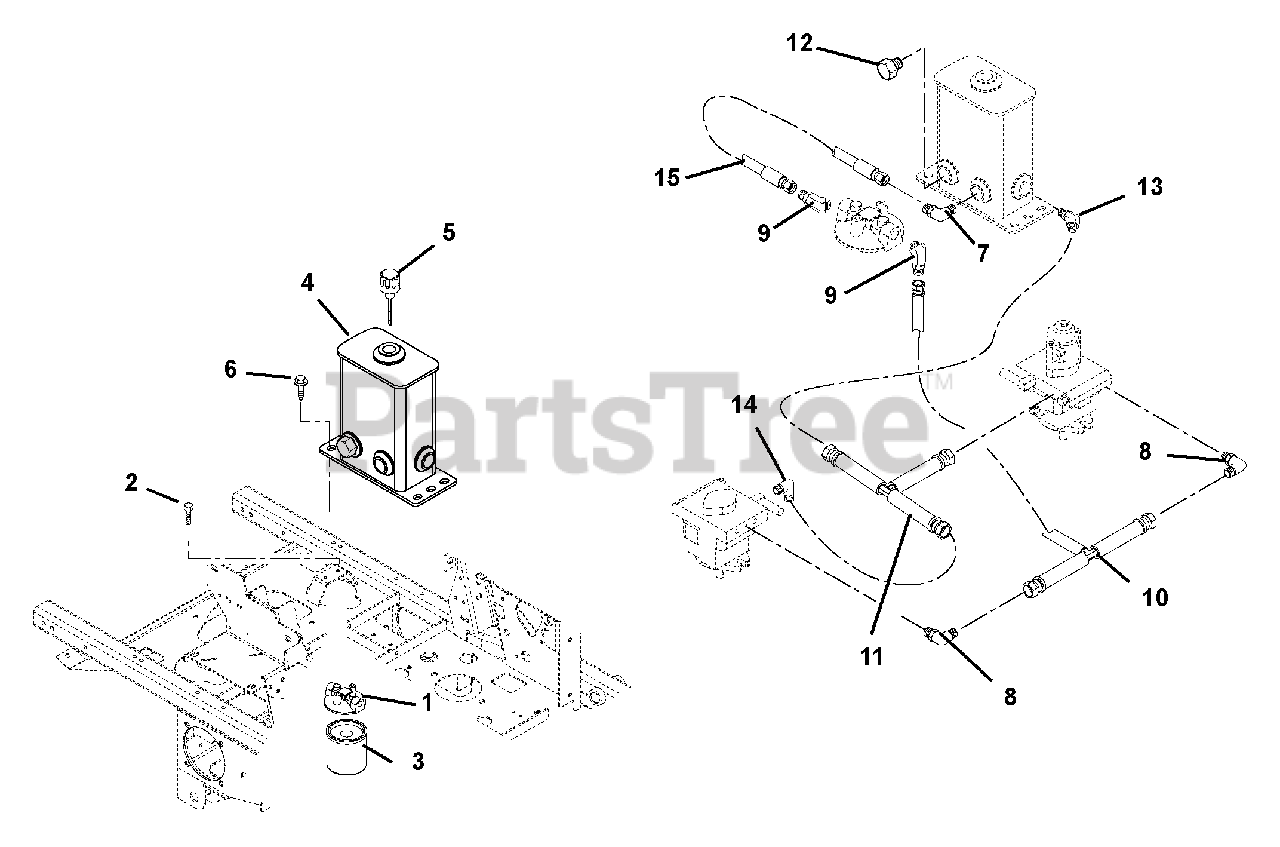

Hydraulic Tank, Filter, Pumps, & Hoses Parts Diagram

  • Title

1

Gravely 09419900

Head, Filter

$

$

Not available

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy Grade 5
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 09414200

Oil Filter
(Superseded to 03931900)

$26.99

$

In Stock, Qty 20+

0

4

Gravely 00161051

Weldment, Hydraulic Tank

$

$

Not available

5

Gravely 00463000

Dipstick, Breather

$

$

Not available

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow, Steel M8F-M80

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 07000029

Fitting, Elbow M6O-M8F

$

$

Not available

9

Gravely 07069900

Fitting, Hydraulic 45° M80-M120

$29.99

$

Usually ships in 4-12 days

0

10

Gravely 00364800

Hose, Tee Assembly, .50

$153.99

$

Usually ships in 4-12 days

0

11

06663000

Hose, .38 Tee Assembly

$

$

Not available

12

Gravely 07000006

Plug, Hex, .75-16 O-Ring

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 07000011

Fitting, Hydraulic 45 Degree M6F-M8O

$

$

Not available

14

Gravely 07063600

Fitting, Hydraulic (6 C5OLO)

Note: (6 C5OLO)

$34.99

$

In Stock, only 4 left!

0

15

Gravely 00364700

Hose, Hydraulic

$

$

Not available
