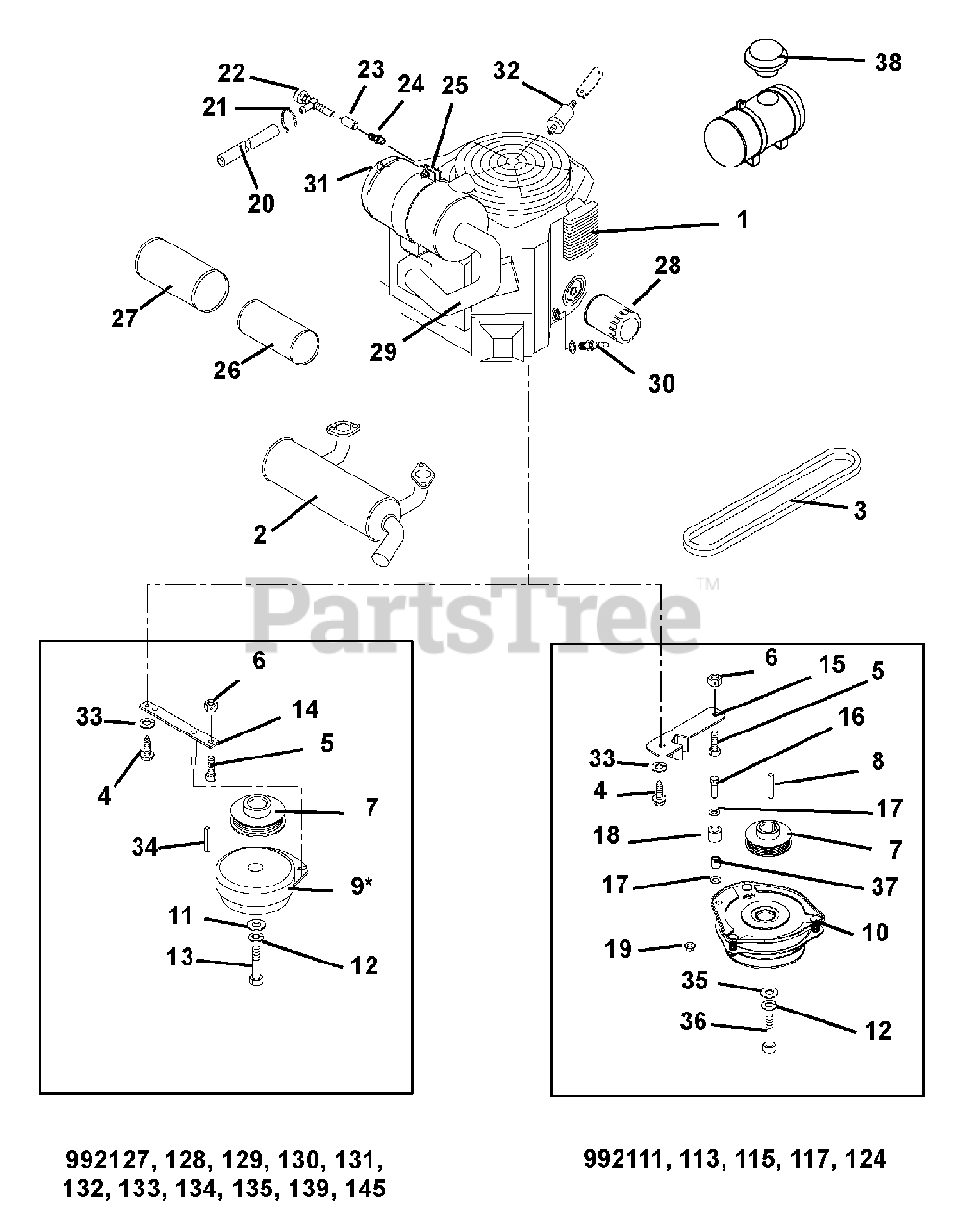

992145 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08268300

Engine, 25 HP Kawasaki (FH721V) (992111, 115, 127, 128, 131, 132)

Note: (FH721V) (992111, 115, 127, 128, 131, 132)

$

$

Not available

1

Gravely 08200029

Engine, 26hp Liquid Cooled Kawasaki (FD731V) (992113, 117, 124, 130, 134, 135, 139)

Note: (FD731V) (992113, 117, 124, 130, 134, 135, 139)

$

$

Not available

1

Gravely 08268100

Engine, 27hp Kohler (CV740S) (992129, 133, 145)

Note: (CV740S) (992129, 133, 145)

$

$

Not available

2

Gravely 09281600

Muffler, Kawasaki (992111, 115, 127, 128, 131, 132)

Note: (992111, 115, 127, 128, 131, 132)

$271.99

$

Usually ships in 4-12 days

0

2

Gravely 00297100

Muffler, Kawasaki Liquid Cooled (992113, 117, 124, 130, 134, 135, 139)

Note: (992113, 117, 124, 130, 134, 135, 139)

$

$

Not available

2

Gravely 00470400

Muffler, Kohler Twin (992129, 133, 145)

Note: (992129, 133, 145)

$198.99

$

In Stock, only 1 left!

0

3

Gravely 07242000

Belt, Poly-V

$53.99

$

In Stock, Qty 20+

0

4

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00 (992111, 115, 127, 128, 129, 131, 132, 133,145)
(Superseded to 07417500)

Note: (992111, 115, 127, 128, 129, 131, 132, 133,145)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 05964900

Bolt, Hex M8-1.25 x 25 Grade 8 (992113, 117, 124, 130, 134, 135, 139)

Note: (992113, 117, 124, 130, 134, 135, 139)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5 (992111, 115, 127, 128, 129, 131, 132, 133, 145)
(Superseded to 05901804)

Note: (992111, 115, 127, 128, 129, 131, 132, 133, 145)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300017

Sheave, Poly V 1.127 x 3.25-XDZ
(Superseded to 07300041)

$93.99

$

In Stock, only 1 left!

0

8

Gravely 06600003

Key-Square .25 x 3.50 x .25 SAE

$4.99

$

In Stock, Qty 7

0

9

Gravely 00462500

Clutch, Electric (992127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145)

Note: (992127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145)

$607.99

$

Usually ships in 4-12 days

0

10

Gravely 00447100

Clutch, Electric (992111, 113, 115, 117, 124)

Note: (992111, 113, 115, 117, 124)

$685.99

$

In Stock, only 1 left!

0

11

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

12

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

14

Gravely 04907200

Anchor, Clutch (992127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145)

Note: (992127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145)

$68.99

$

In Stock, only 1 left!

0

15

Gravely 00444751

Anchor Clutch (992111, 113, 115, 117, 124)
(Superseded to 00662251)

Note: (992111, 113, 115, 117, 124)

$82.99

$

Usually ships in 4-12 days

0

16

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

17

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07500007

Bumper,Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

19

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03278100

Gas Line, Bulk .25 I.D.

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

22

Gravely 00429000

Drain, 1/2" Drain

$39.99

$

In Stock, only 1 left!

0

23

Gravely 07052200

Adapter, .38 NPTF

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 02749600

Nipple

$9.49

$

Usually ships in 4-12 days

0

25

Gravely 09257600

Bracket, Air Cleaner Mount

$87.99

$

Usually ships in 4-12 days

0

26

Gravely 21536900

Element, Inner Safety

$28.99

$

In Stock, only 1 left!

0

27

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

28

Gravely 21535800

Oil Filter (992111, 115, 127, 128, 131, 132)
(Superseded to 49065-0724)

Note: (992111, 115, 127, 128, 131, 132)

$18.99

$

In Stock, Qty 20+

0

28

Gravely 21380000

Oil Filter (992113, 117, 124, 130, 134, 135, 139)
(Superseded to 21535800)

Note: (992113, 117, 124, 130, 134, 135, 139)

$18.99

$

In Stock, Qty 20+

0

28

Gravely 21397200

Oil Filter (992129, 133, 145)
(Superseded to 20715100)

Note: (992129, 133, 145)

$18.99

$

In Stock, only 4 left!

0

29

Gravely 21536800

Hose, Air Intake (992129, 133, 145)

Note: (992129, 133, 145)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 21536100

Spark Plug (992111, 115, 127, 128, 131, 132)

Note: (992111, 115, 127, 128, 131, 132)

$3.49

$

In Stock, only 2 left!

0

30

Gravely 21538500

Spark Plug (992113, 117, 124, 130, 134, 135, 139)

Note: (992113, 117, 124, 130, 134, 135, 139)

$3.49

$

In Stock, only 2 left!

0

30

Gravely 21536800

Spark Plug (992129, 133, 145)

Note: (992129, 133, 145)

$25.99

$

Usually ships in 4-12 days

0

31

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

32

Gravely 21410800

Fuel Filter (992111, 115, 127, 128, 131, 132)
(Superseded to 21541500)

Note: (992111, 115, 127, 128, 131, 132)

$8.99

$

In Stock, Qty 20+

0

32

Gravely 21541800

Fuel Filter (992113, 117, 124, 130, 134, 135, 139)

Note: (992113, 117, 124, 130, 134, 135, 139)

$26.99

$

Usually ships in 4-12 days

0

32

Gravely 21539500

Fuel Filter (992129, 133, 145)

Note: (992129, 133, 145)

$12.99

$

In Stock, Qty 20+

0

33

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06602200

Key, Square .25 x 1 x 0.25

$3.99

$

In Stock, only 2 left!

0

35

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

36

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

37

Gravely 08905500

Bushing, .407 x .625 x .813

$13.99

$

In Stock, only 1 left!

0

38

Gravely 09408700

Cap, Air Cleaner Intake (992113, 117, 124, 130, 134, 135, 139)

Note: (992113, 117, 124, 130, 134, 135, 139)

$51.99

$

In Stock, only 1 left!

0

Gravely 59205200

Brake Pole Module Replacement Kit for Clutch

Note: (Not Shown)

$

$

Not available
