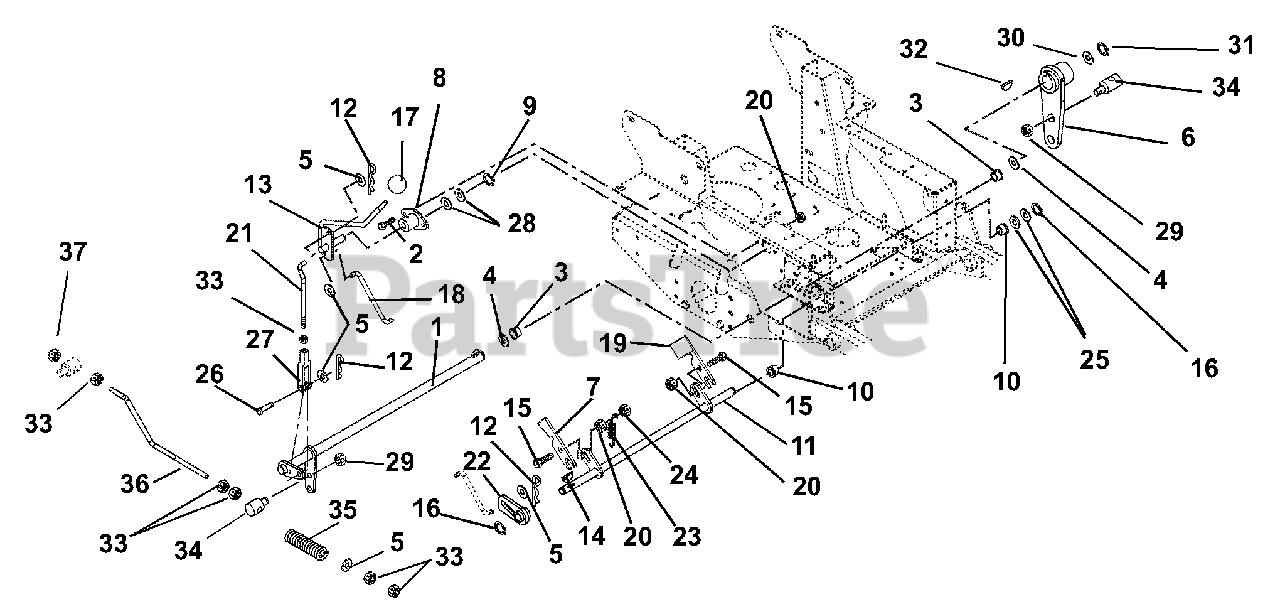

992143 (ZT 2348 XLP) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 002000 & Above) Brakes Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

Brakes Parts Diagram

  • Title

1

Gravely 00373300

Weldment, Brake Pivot

$

$

Not available

2

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05518400

Bushing, Flange .762 x 1.00 x .58 x 1.48 Nylon

$4.99

$

In Stock, Qty 20+

0

4

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00258600

Weldment, Brake Arm

$77.99

$

Usually ships in 4-12 days

0

7

Gravely 09267700

Slide, Interlocking Brake

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 05534700

Bushing, Flange

$21.99

$

In Stock, only 2 left!

0

9

Gravely 05709200

Ring, Retaining External .625 x .05

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 05521100

Bushing, Flange .515 x .75 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

11

Gravely 09284000

Weldment, Mechanical Brake

$103.99

$

Usually ships in 4-12 days

0

12

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00277400

Weldment, Brake Actuating

$85.99

$

Usually ships in 4-12 days

0

14

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

15

Gravely 06219200

Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 05717100

Ring, Retaining External .50 x .05

$2.49

$

In Stock, Qty 8

0

17

Gravely 07505200

Knob, Steering Lock

$20.99

$

In Stock, only 1 left!

0

18

Gravely 09268400

Linkage, Brake Actuating

$30.99

$

In Stock, only 1 left!

0

19

Gravely 09275900

Interlock, Safety Switch

$17.99

$

Usually ships in 4-12 days

0

20

Gravely 06545400

Nut, Nyloc Flange 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09299100

Linkage, Brake Compact-Z

$38.99

$

Usually ships in 4-12 days

0

22

Gravely 09268100

Weldment, Parking Brake Hub

$190.99

$

Usually ships in 4-12 days

0

23

Gravely 08328700

Spring, Tension .061 x .50 x 3.0

$20.99

$

In Stock, only 2 left!

0

24

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06814900

Pin, Clevis .38 x 1.25

$3.99

$

In Stock, only 2 left!

0

27

Gravely 08800400

Clevis, .38-24 Adjustable

$11.99

$

Usually ships in 4-12 days

0

28

Gravely 06445100

Washer-Flat-Steel .630 x 1.250 x .062

$2.49

$

In Stock, only 3 left!

0

29

Gravely 06500011

Nut, Center Lock Nut, .31-18
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

30

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

31

Gravely 05714600

Ring, Retaining External .689 x .078

$2.49

$

In Stock, Qty 5

0

32

Gravely 06608700

Key-Woodruff .19 x .75

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06534700

Nut, Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 09267300

Pin, Pivot

$6.99

$

In Stock, only 1 left!

0

35

Gravely 08328500

Spring, Compression .143 x .710 x 2.00

$20.99

$

Usually ships in 4-12 days

0

36

Gravely 00370200

Linkage, Brake

$

$

Not available

37

Gravely 06539400

Nut, Locking Center .375-24
(Superseded to 06500929)

$2.49

$

In Stock, only 4 left!

0
